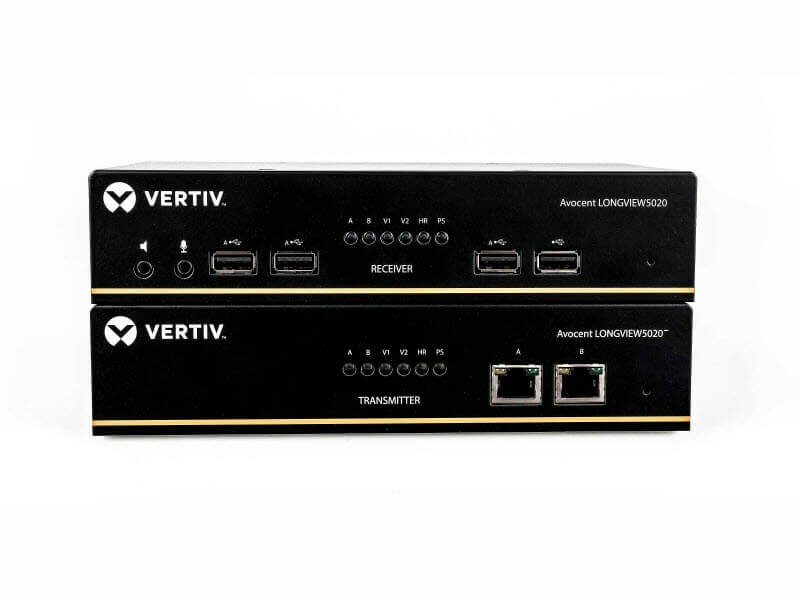

VOCENT LongView Dual Display Port,USB,audio,CATx 150M (lv5020p-001)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: LongView Dual Display Port,USB,audio,CATx 150M Power Adapter

Certifications & Standards: CE FCC UL

Country of Origin: United StatesPRODUCT DESCRIPTION

This item is brand-new, factory sealed.

The Avocent LV5000 series of high performance extender solutions provide an at the desktop experience in environments where conditions make it is advantageous to operate and manage critical business systems from a secure, monitored location. Users can access systems and applications remotely without sacrificing video quality, audio quality or device capability. High-performance extenders can be used in control rooms and traditional desktop settings and are most often used in broadcast, emergency management, industrial and energy organizations. The LV5000 series is, specifically, well-suited for applications that require extreme video and audio quality, like video post production, picture archiving and communication (PACS),radiology information systems (RIS), digital signage and video security.Pixel Perfect Video Every Time
The LV5000 series support DisplayPort Dual Mode video and offers pixel-perfect video resolutions for demanding applications. Users can choose to have a maximum resolution of 3840x2160 (UHD 4K) with a single monitor or 1920 x 1200 (WUXGA) resolution in a dual monitor configuration. Picture quality is delivered through an uncompressed system whereby every pixel of every frame is sent without loss.Extension, Not Exclusion
The LV5000 does more than just extend system control. It provides a full-function connection that enables up to six USB 2.0 human interface devices including mice, keyboards, graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage and isochronous devices, such as webcams and headsets, can be used through the transparent USB 2.0 high-speed port. High-definition audio recording and playback is also supported.Full USB 2.0 requires a second cable. Basic keyboard and mouse can share a single CATx video connection.Package Contents:

• LongView Dual Display Port,USB,audio,CATx 150M
• Power DescriptionInput Voltage Range100V AC to 240V ACInput Voltage
  • 120 V AC
  • 240 V AC
  Power Consumption20 WPhysical CharacteristicsForm FactorRack-mountableTransmitter Weight (Approximate)1.65 lbReceiver Width7.92"Receiver Height1.76"Receiver Depth4.80"Transmitter Depth4.80"Receiver Weight (Approximate)1.65 lbTransmitter Height1.76"Transmitter Width7.92"Rack Height1UWarrantyLimited Warranty2 Video Resolution3840 x 2160Graphic Mode4KGeneral InformationBrand NameAVOCENTMarketing InformationThe Vertiv Avocent LV 5000 high-performance KVM extender kit uses DisplayPort technology to support ultra-high-resolution (3840x2160) 4K video transmission and remote KVM control. The extender moves computing assets to secure, climate-controlled environments up to 330 ft. from the workstation while still delivering seamless and instantaneous KVM capabilities. The extender delivers a smooth user experience with no delays or signal degradation and supports isochronous USB devices such as webcams, joysticks and touchscreens. Pass through ports allow use of a local console at the transmitter and/or receiver as needed. The Avocent LV 5000 high-performance KVM extender does not require on-site configuration, plug them in, and start working right away without drivers or software to install. Bring order to environments that can't afford unnecessary complexity with the Vertiv Avocent LV 5000 High-Performance KVM Extender Kit. More from the ManufacturerProduct TypeKVM Console/ExtenderProduct NameLV5020 Dual VGA KVM ExtenderManufacturerVertivManufacturer Part NumberLV5020P-001Product ModelLV5020Product Series5000Product LineLVPackaged Quantity1TitleProduct TitleVertiv Avocent LongView - Dual Monitor, USB, Audio, CATx up to 100m / 330ft (LV5020P001)Technical InformationNumber of Remote Users Supported1Number of Computers Supported1Maximum Operating Distance492.13 ftDevice TypeKVM ExtenderConnectivity TechnologyWired
