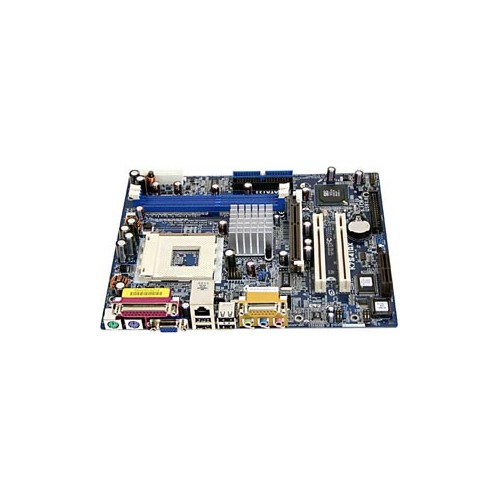

Socket 462 / Socket A motherboard with on-board audio, video and LAN

• Rear Panel I/O Ports:
  • 1 x Keyboard PS2
  • 1 x Mouse PS2
  • 4 x USB 2.0 ports default on rear panel + 2 ports upgrade via header
  • 1 x Parallel Port
  • 1 x Game/MIDI port
  • 1 x LAN RJ45 jack
  • Audio I/O Line In/Line Out/Mic. horizontal jacks
  • 1 x VGA port

• Internal I/O Interface:
  • CPU/Chassis FAN connectors
  • 20 pin ATX power connector
  • CD/AUX/ audio in
  • Front panel audio connector
  • Serial port header

• BIOS:
  • 2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP

• Hardware Monitoring:
  • CPU Temperature Sensing
  • Motherboard Temperature Sensing
  • CPU Fan Tachometer
  • Chassis Fan Tachometer
  • Voltage Monitoring: +12V, +5V, +3.3V, Vcore

• Manageability:
  • WOL,WOR

Motherboard Specifications

• Model:
  • ASRock K7S41GX
• AMD Processor Support:
  • Athlon 1000 to 1400
  • Athlon XP 1500 to 3000+
  • Duron 900 to 1800
  • Sempron 2200 to 3000+
  • NX 1500 to 1750
• Chipset:
  • SiS 741GX + 963L
• FSB:
  • FSB 333/266/200 MHz

• Memory:
  • Max. 2GB DDR
  • 2 x DDR Slots:
    • 1 AGP 8X/4X 1.5V
    • 2 PCI slots, PCI 2.2
    • 1 AMR

  • On-Board Audio:
    • AC97 CODEC
      5.1 CH Audio

  • On-Board Video:
    • Integrated Mirage Graphics
      Shared Memory Max. 64MB
  • On-Board LAN:
    • 802.3u, 10/100 Ethernet LAN, WOL supported
  • Storage:
    • 2 x IDE ATA 133/100/66/33
    • 1 Floppy connector
    • SIR/CIR 1/0
  • Form Factor:
    • Micro ATX form factor
    • Dimensions: 9" x 7.75"
