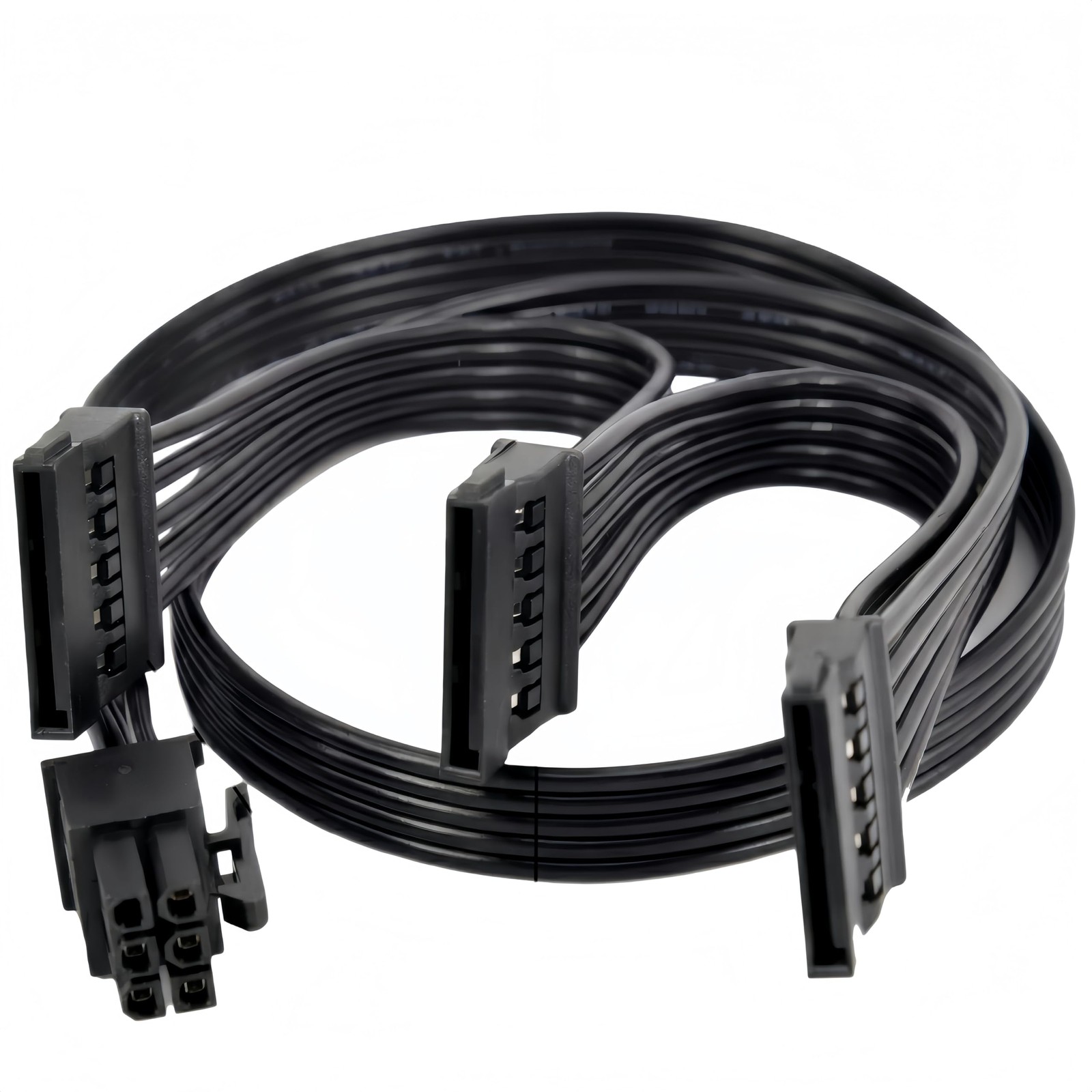

Power Multiple SATA Devices with One Corsair PSU Port
Are you running out of SATA power connections for your hard drives, SSDs, or other peripherals? Our 6-Pin to Triple SATA Power Adapter Cable is engineered specifically to help you maximize the potential of your Corsair modular power supply. By utilizing a single 6-pin peripheral port on your PSU, this Y-splitter cable provides three independent SATA power connectors, allowing you to expand your storage capacity without upgrading your power supply.
⚠️ CRITICAL: VERIFY COMPATIBILITY BEFORE PURCHASE – SERIOUS DAMAGE RISK ⚠️
This cable is engineered specifically for Corsair modular power supplies only. It is compatible with the following Corsair series:
Compatible Series: RM / RMX / RMi / HX / HXi / CX / CX-M / CS / SF / TX / AXi / AX series
Specific Models Include (but not limited to): RM550x / RM650x / RM750x / RM750x White / RM850x / RM850x White / RM1000x / RM650i / RM750i / RM850i / RM1000i / HX750 / HX850 / HX1000 / HX1200 / HX750i / HX850i / HX1000i / HX1200i / AX760i / AX860i / AX1200i / AX1500i
NOT Compatible With: AX1200, AX750, AX850, or any non-Corsair power supplies
⚠️ IMPORTANT SAFETY NOTE:
Different power supply brands and even different Corsair series use different pinout configurations on the PSU side . Using this cable with a non-compatible power supply will result in incorrect voltage delivery (e.g., 12V being sent where 5V is expected), which will instantly short-circuit and permanently damage your SSDs, HDDs, or the power supply itself . Multiple user reviews confirm that incorrect usage results in melted cables, popped PSUs, and destroyed drives emitting smoke . If you are unsure about compatibility, please contact us with your specific PSU model number before ordering.
Built for Reliability and Performance
We prioritize the safety of your components. This cable is manufactured to strict standards: Premium Materials: UL1007 standard 18AWG tin-plated copper wire offers excellent conductivity and heat resistance, ensuring stable power delivery even under load .
Durable Construction: Precision-molded connectors ensure a firm, secure fit with latching clips that lock into place, minimizing power loss and preventing accidental disconnection .
v Heat-Resistant: Flame-retardant PVC insulation rated up to 80°C (176°F) provides an extra layer of safety .
Specifications:
Feature Details
Connector A 1x 6-pin Male (for Compatible Corsair Modular PSUs)v Connector B 3x 15-pin SATA Female
Wire Gauge 1007 18AWG Tin-Plated Copper
Main Cable Length 50cm (20 inches)
Secondary Cable Length 15cm (6 inches) between connectors
Cable Outer Diameter 2.1mm
Color Black / White (Specify your variant)15-pin
Recommended Uses:
Expanding SATA power for additional 2.5"/3.5" HDDs or SSDs
Powering SATA optical drives (CD/DVD/Blu-ray)
Connecting SATA-powered fan hubs or RGB controllers
Powering BTC mining riser cards (Note: Maximum 2 riser cards recommended to prevent cable damage)
Package Includes:
1 x 6-Pin Male to 3X SATA Female Power Adapter Cable🔹 EXPAND YOUR SATA POWER CONNECTIVITY – 3X 15 PIN SATA OUTPUT This 6 Pin Male to 3X 15 Pin SATA power cable converts a single 6-pin peripheral port on your compatible Corsair modular power supply into three 15-pin SATA power connectors. Perfect for powering multiple hard drives, SSDs, optical drives, and other SATA devices from a single PSU port. Simplifies cable management and reduces clutter in your build.
🔹 COMPATIBLE WITH CORSAIR TYPE 3 & TYPE 4 MODULAR PSUs Designed for Corsair modular power supplies. Compatible with: RM / RMX / RMi series HX / HXi series CX / CX-M series CS / CS-M series SF series TX / TX-M series AXi / AX series ⚠️ NOT compatible with Corsair Type 5 PSUs (RMx Shift, SF-L, HXi Shift), AX1200, AX750, AX850, or any non-Corsair PSU. Corsair Type 3 and Type 4 SATA/PATA/Peripheral cables share the same pinout; the only difference is the 24-pin ATX cable. Type 3/Type 4 cables are NOT compatible with Type 5 power supplies.
🔹 PREMIUM 18AWG CONSTRUCTION – SAFE & RELIABLE Built with high-quality 18AWG tinned copper wire for efficient power delivery and minimal voltage drop. UL1007 certified materials ensure safety and durability. The secure latching 6-pin connector provides a safe connection to your PSU. Depress the latch before unplugging.
🔹 OPTIMAL CABLE LENGTH – 50cm + 15cm + 15cm + 15cm Main cable measures 50cm from the PSU to the first SATA connector, with 15cm secondary leads between each 15-pin SATA output. Provides ample length for clean cable routing in full-tower, mid-tower, and compact PC cases.
🔹 PLUG & PLAY – KIT INCLUDES & WARRANTY 1x 6 Pin Male to 3X 15 Pin SATA Power Cable (50cm+15cm+15cm+15cm, 18AWG). Works with hard drives, SSDs, optical drives, and other SATA peripherals from major brands.
⚠️ CRITICAL COMPATIBILITY & LOAD WARNINGS： This is a peripheral/SATA power cable, NOT a PCIe or CPU cable. The 6-pin end must connect to a peripheral 6-pin port on your PSU, NOT a PCIe 6-pin or CPU 8-pin port. Load Recommendation: Connect no more than 2x 3.5" HDDs, or up to 3x SSDs / 2.5" HDDs. SATA connectors are rated at 4.5A per rail (12V / 5V). Not recommended for mining. Do not exceed the safe current limit of your PSU peripheral port. This cable is directional – the 6-pin end goes to the PSU; the 3x 15-pin SATA ends go to your devices.
