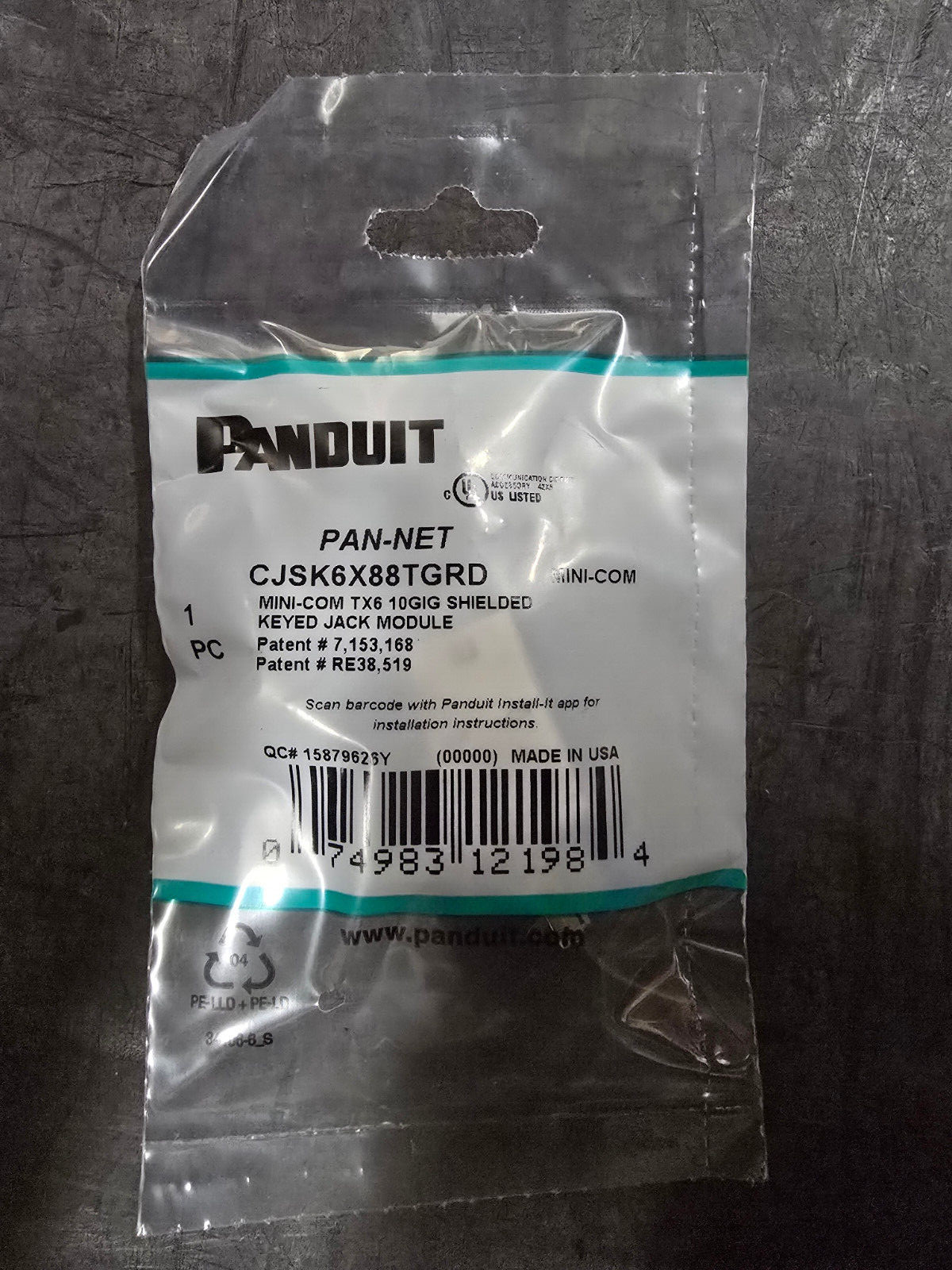

***NEW*** Panduit CJSK6X88TGRD Mini-Com STP RJ45 Cat 6A Keyed TG Jack Module RedThe Mini-Com® Cat 6A Shielded RJ45 TG Keyed Jack Module is designedto terminate shielded 4-pair, 22-26 AWG twisted pair cable and only allow
same-color Keyed Panduit Patchcords to be inserted. Each module is 100%
factory tested to exceed industry standard performance requirements. TG
style termination eliminates the need for a termination tool. Each jack is
individually serialized for traceability and is compatible with Mini-Com
Modular Patch Panels and Type Jack Module
Performance Level Category 6A
Connector Type Jack Module - Keyed
Termination Style TG Style
Body Material Polycarbonate
Contact Material Plated Phosphor Bronze
Module Type Mini-Com®
Wiring Scheme T568A/T568B
Shield Type Shielded (STP)
Sub Brand Pan-Net®
Maximum Operating Temperature (°C) 75
Maximum Operating Temperature (°F) 167
Minimum Operating Temperature (°C) -10
Minimum Operating Temperature (°F) 14
Maximum Storage Temperature (°C) 75
Maximum Storage Temperature (°F) 167
Minimum Storage Temperature (°C) -40
Minimum Storage Temperature (°F) -40
Resistance Properties Heat-Resistant
Color Red
Standards Met Exceeds Channel and Component Requirements of
ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective
Category, Meets IEC 60603-7, Supports 2500 Connection Cycles
with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL
1863 and UL 2043 and RoHS Compliant.
Overall Length (In.) 1.5
Infrastructure for a connected world
www.panduit.com For service and technical support, call [phone removed by ] Part: CJSK6X88TGRD 1
Specifications (continued)
Overall Length (mm) 38.1
Overall Width (In.) 0.62
Overall Width (mm) 15.7
Overall Depth (In.) 1.5
Overall Depth (mm) 38.1
Overall Height (In.) 0.74
Overall Height (mm) 18.8
Packaging Detail
UPC 07498312198
Std. Pkg. Qty. 1
Std. Pkg. Volume (cf) 0.0030
Std. Ctn. Qty. 50
Std. Ctn. Volume (cf) 0.1478
