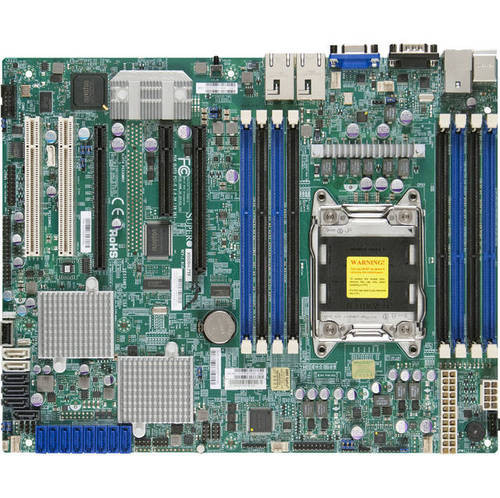

Key Features
1. Single socket R (LGA 2011) supports
Intel® Xeon® processor E5-2600/1600 2. Intel® C602J chipset
(7 Years Long Life) 3. Up to 256GB LR/RDIMM or 64GB ECC/
non-ECC UDIMM; DDR3 up to 1600MHz 4. Expansion slots: 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 2.0 x4 (in x8), & 2 PCI-32 slots 5. Intel® X540 Dual port 10GBase-T 6. 2 SATA3 (6Gbps), 4 SATA2 (3Gbps) 7. 8x SAS2 (6Gbps) ports via LSI 2308 8. Integrated IPMI 2.0 and KVM with
Dedicated LAN 9. 9 USB 2.0 ports
(2 rear + 6 via header + 1 Type A) 10. DOM power connector support Links & Resources Tested Memory List Tested HDD / SSD List Motherboard Manual Update Your BIOS IPMI Firmware Download the Latest Drivers and Utilities Heat Sink Compatibility OS Compatibility
Product SKUs MBD-X9SRH-7TF -B

• X9SRH-7TF (Bulk Pack)

Physical Stats Form Factor

ATX

Dimensions

12" x 9.6", (30.5cm x 24.4cm)

Processor/Cache CPU

• Intel® Xeon® processor E5-2600/E5-1600 processors (up to 8 cores and up to 135W)
• Single Socket R (LGA 2011)

System Memory Memory Capacity

• 8x 240-pin DDR3 DIMM sockets
• Supports up to 256 GB DDR3 ECC Registered memory (RDIMM)
• Supports up to 64 GB DDR3 ECC and non-ECC UDIMM

Memory Type

• 1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors
  (using ECC memory)

On-Board Devices Chipset

• Intel C602J chipset (7 Years Long Life)

SATA

• SATA3 (6Gbps) and SATA2 (3Gbps)
• RAID 0, 1, 5, 10

SAS

• SAS2 (6Gbps) via LSI 2308
• SW RAID 0, 1, 10 support

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450RA0BX
• Intel Node Manager support

Network Controllers

• Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Video

• Matrox G200eW 16MB DDR2 graphics

Super I/O

• Nuvoton NCT 6776F

Input / Output SATA

• 2 SATA 3.0 ports (6Gbps)
• 4 SATA 2.0 ports (3Gbps)

SAS

• 8 SAS2 ports (6Gbps)

LAN

• 2 RJ45 10GbE LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 9 USB 2.0 ports total (2 rear + 6 via header + 1 Type A)

Video

• 1 VGA port

Keyboard/Mouse

• 2 PS/2 Keyboard/Mouse ports

Serial Port / Header

• 2 serial ports (1 rear, 1 header)

DOM

• 1 DOM (Disk on Module) power connector

TPM

• 1 TPM 1.2 20-pin Header

Chassis ( Optimized for X9SRH-7TF ) 1U Chassis

• CSE-113MTQ-330CB
• CSE-512F-350B
• CSE-813MTQ-350C
• CSE-813MTQ-R400CB

2U Chassis

• CSE-823TQ-650B
• CSE-823TQ-653B
• CSE-826E16-R500LPB
• CSE-826TQ-R500LPB

3U Chassis

• CSE-833T-650B
• CSE-833T-653B
• CSE-836E16-R500B
• CSE-836TQ-R500B

Tower / 4U Rackmount

• CSE-842TQ-665B
• CSE-842TQ-865B

Important Chassis Notes

• To support motherboards based on Intel® Xeon® processor 5500/3500 series, Revision K chassis is recommended for most models. Please talk to your sales representative for details.

Expansion Slots PCI-Express

• 1x PCI-E 3.0 x16 slot
• 1x PCI-E 3.0 x8 (in x16) slot
• 1x PCI-E 2.0 x4 (in x8) slot

PCI

• 2x PCI-32 slots

System BIOS BIOS Type

• 64Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.7.1
• UEFI
• RTC (Real Time Clock) Wakeup

Management Software

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor® III
• Watch Dog
• NMI

Power Configurations

• ACPI / APM Power Management
• Keyboard Wakeup from Soft-Off
• CPU Fan auto-off in sleep mode
• Power-on mode for AC power recovery

PC Health Monitoring Voltage

• Monitors for CPU Cores, +3.3V, +5V, ±12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.

FAN

• Five 4-pin fan headers supporting up to 5 fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• I2C temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• Suspend static indicator LED
• UID/Remote UID

Other Features

• Chassis intrusion detection
• Chassis intrusion header
• Chipkill support
• RoHS, Halogen Free

Parts List (Bulk Package) Part Number Qty Description X9SRH-7TF MBD-X9SRH-7TF 1 X9SRH-7TF Motherboard (bulk pack)
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00027-0N 1 STD I/O SHIELD
