10 Inch Rack Mount 1U for the Ubiquiti UniFi Flex Mini 2.5G

A 1U tray that seats a Ubiquiti UniFi Flex Mini 2.5G (USW-Flex-2.5G-5) in a 10 inch mini rack, printed to order in matte black PETG. The switch slides in from the front, through the window, until it touches the two rear stop posts, and sits about 11 mm proud of the faceplate. It rests on an open honeycomb floor and the rear of the tray is open for cables. No adhesive, no modification to the switch.

Designed From The Published Specification

• Fits: Ubiquiti UniFi Flex Mini 2.5G (USW-Flex-2.5G-5), 117.1 x 90 x 21.2 mm per Ubiquiti, inserted with its 117 mm port side forward.
• Not for the original 1 GbE Flex Mini (USW-Flex-Mini, 107 x 70 mm), which is a different size.
• Opening 119.1 x 24.2 mm over a flush floor: 1 mm of side clearance and 3 mm above the 21.2 mm body.
• Faceplate 248 mm wide on EIA-310 10 inch hole spacing; 1U (44.45 mm) tall.

Build

• Single piece.
• Vented rhythm-slot face and an open honeycomb floor.
• Fits any 10 inch / 254 mm mini rack with standard square or round holes. The mounting slots take M6, M5, #10-32 or M4 rack screws.
• Part measures 248 x 87 x 44.45 mm. Matte black PETG.

Printed To Order

Each unit is printed fresh in our shop on calibrated printers and inspected before it ships. Lead time is typically 1-3 business days. Minor layer lines are normal for FDM 3D printing and part of the finish.

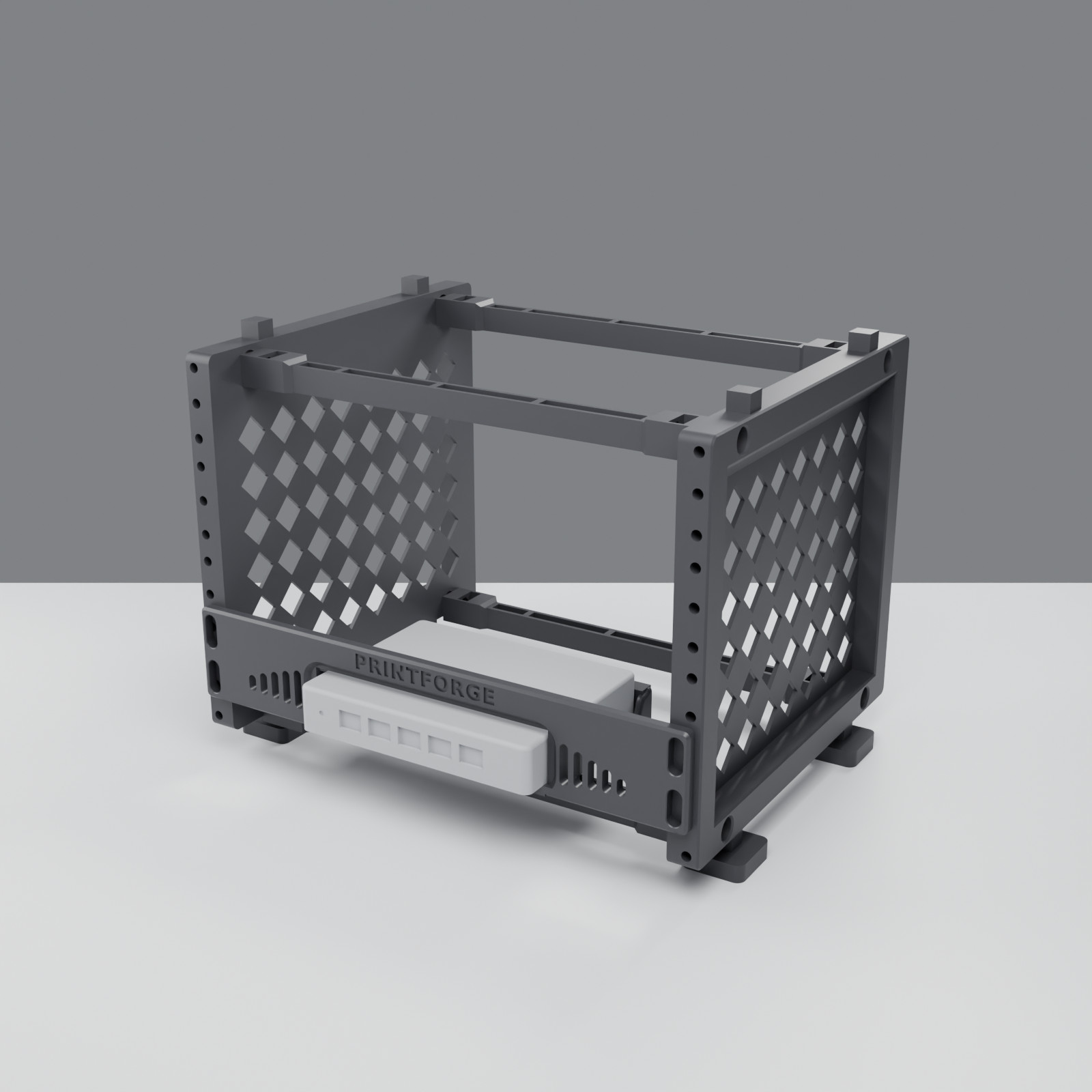

Mount only. Switch and power adapter not included. The rack and the device shown in the photos are not included; they appear for scale and fitment only.

Not an official Ubiquiti product; Ubiquiti and UniFi are trademarks of their owner.
