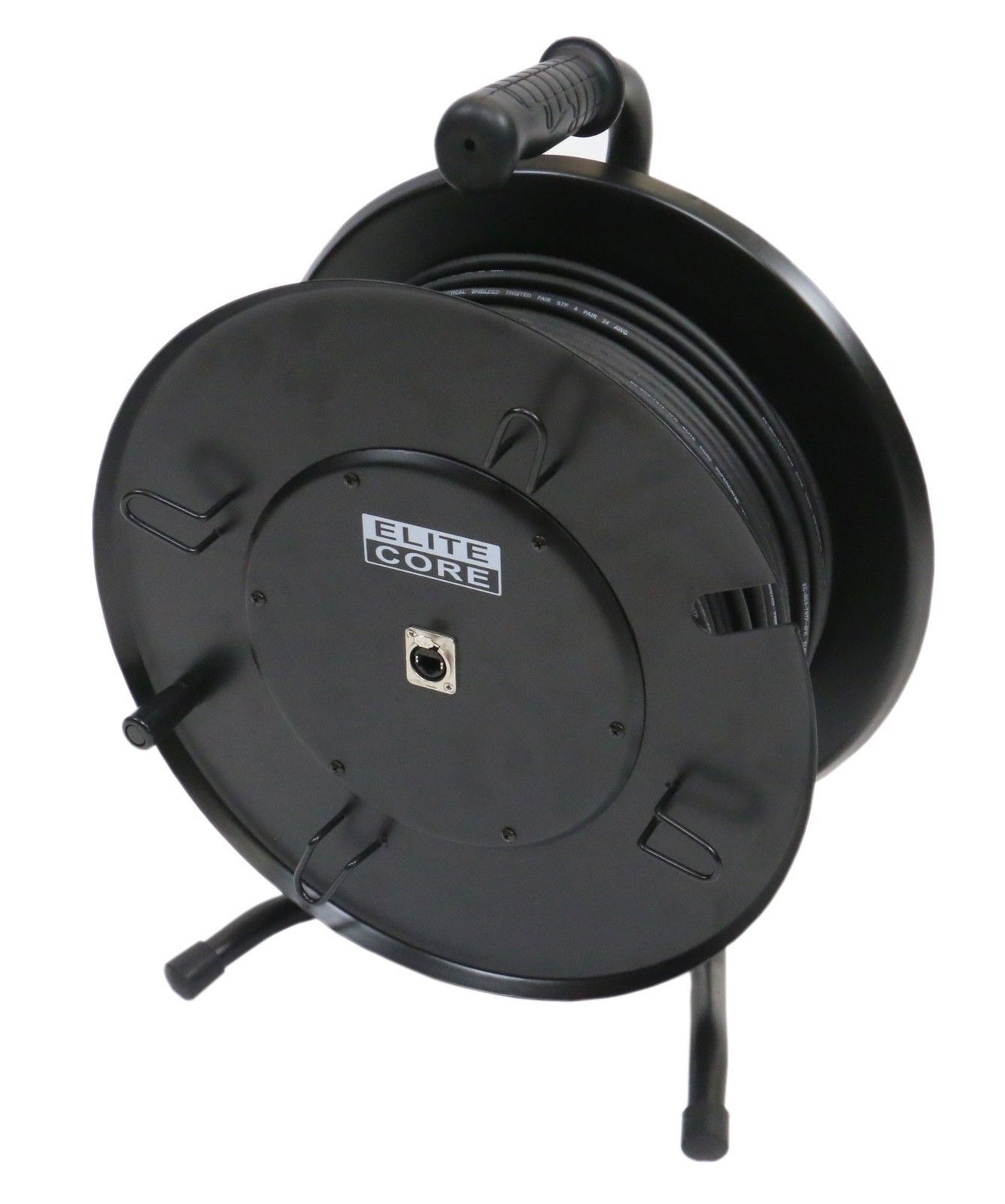

100 ft SUPER CAT5E Tactical Shielded Ethercon RJ45 Reel Snake CS-45

Price: US $599.99

Elite Core 100 ft Tactical Shielded Ethercon RJ45 SUPER CAT5E Reel Digital SnakeEliteCore SUPERCAT5E-100-REEL Converta-Shell Rugged Shielded CAT5E Cable, 100' onMetal Reel. Elite Core SUPERCAT cables feature the patent-pending CS-45connector. The CS-45 allows forEtherCon® style connections or RJ45 in aprotective shell. Simply twist off the barrel of the CS-45 to reveal a fullyprotected RJ45 with push-button release in place. It's tour-grade and tough.Fully shielded with the drain wire solder to the RJ45 on both ends. .

The ReelSnake has a Female RJ45 located on the metal reel and one RJ45 Male on the cable snake end

Fast, twist-off conversion from RJ45 to tactical ethernet locking XLR style jack
Fully finished RJ45 connection with release button
No need to dismantle cable to revert to RJ45
Flexible design provides for flat lay and smooth roll-up
Patented design assures twist pitch stability
Effective spacing of cable pairs controls crosstalk
Rugged build protects cable from damage caused by external force or roll-overs
Perfect for mobile audio, DMX, video, and LED screens

Type: SUPERCAT5E STP Tactical Shielded

StrandedTwisted Pair Jacket Color: Black

OutsideDiameter: 7.5mm

ConductorCount: 4 Pair

ConstructionDetails: (7/0.2+PE0.99)*(2C+MYLAR+PE2.65)*4 PAIR+ DW 7/0.22TC+AL FOIL+PVC

MainConductor Guage: 24 AWG

ConductorD.C.R. ohm/1Km: <89.3

NominalCapacitance ~ Conductors: <68.9 pF/m

NominalCapacitance ~ Pairs: <57.3 pF/m

Impedance: 100ohm

Flex Life: >8730(Load of 500G ±30°)

TensileStrength: >109kgf
