Product Page 1000BASE Fiber to Ethernet Media Converter SFP Slot Gigabit Network Adapter Description:

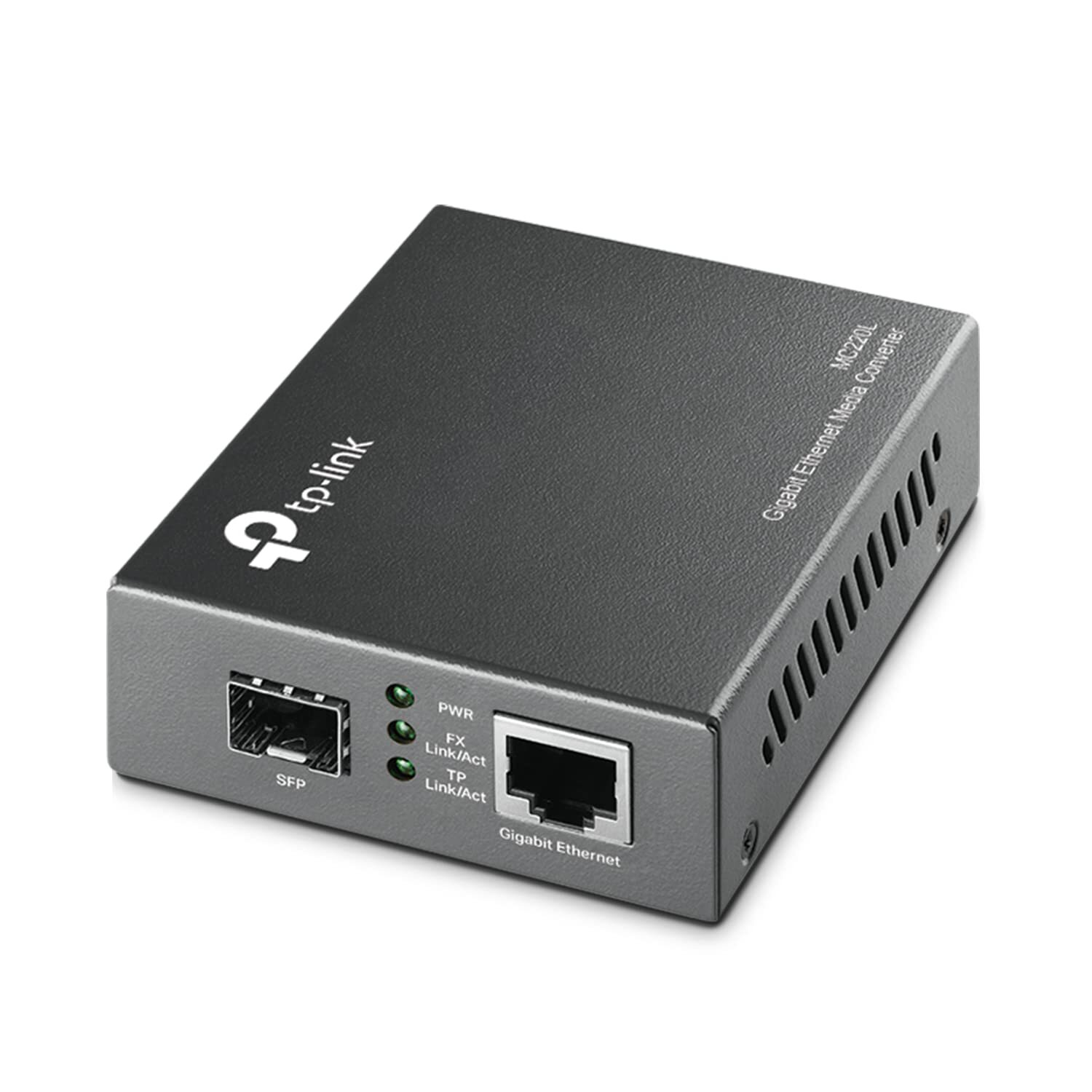

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19"system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers(0.342 miles) and 10 kilometers (6.2 miles) when utilizing single-mode fiber. Protocols Supported: IEEE 802.3ab IEEE 802.3z IEEE 802.3x

Features:

• Convert Fiber to EthernetDesigned to convert 1000BASE-SX/LX fiber to 1000Base-T copper media or vice versa.
• Versatile CompatibilityWorks with both single-mode and multi-mode fiber SFP modules and is fully compatible with 10/100/1000 Base-T Ethernet connections.
• Easy to UsePlug and play with no software installation or configuration needed.
• Auto-Negotiation Gigabit ConnectionAuto-negotiation RJ45 port supports Half-Duplex/Full-Duplex transfer mode and auto-MDI/MDIX.
• Long-Range TransmissionWhen used with different types of SFP modules, the Hot-Swappable FX Port extends fiber distance up to 12.4miles (20km) for Single-Mode transmission and 1,800 feet (550m) for Multi-Mode transmission.
