Product description

It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.

Key Features SOLDERLESS: No Welding Required

128 type copper terminal design, no need for soldering iron and cumbersome tools, easy wiring. The housing is designed with a folding buckle for easy assembly and disassembly without tools.

Pure Copper Plated Joints

Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of PP engineering material, which is soft and durable.

REDUCE ERRORS

All signal ports are clearly named and labeled on both sides of the board for quick wiring.

4 different sizes of tail pipe

Equipped with 4 different sizes of tail pipe, the material is soft and resistant to bending. Make sure that the pulling and sway of the cable does not affect the internal wiring during use.

Folding snap-on housing

The shell adopts folding snap type, PP material, which can be repeatedly folded and used multiple times to improve assembly efficiency

Package Includes

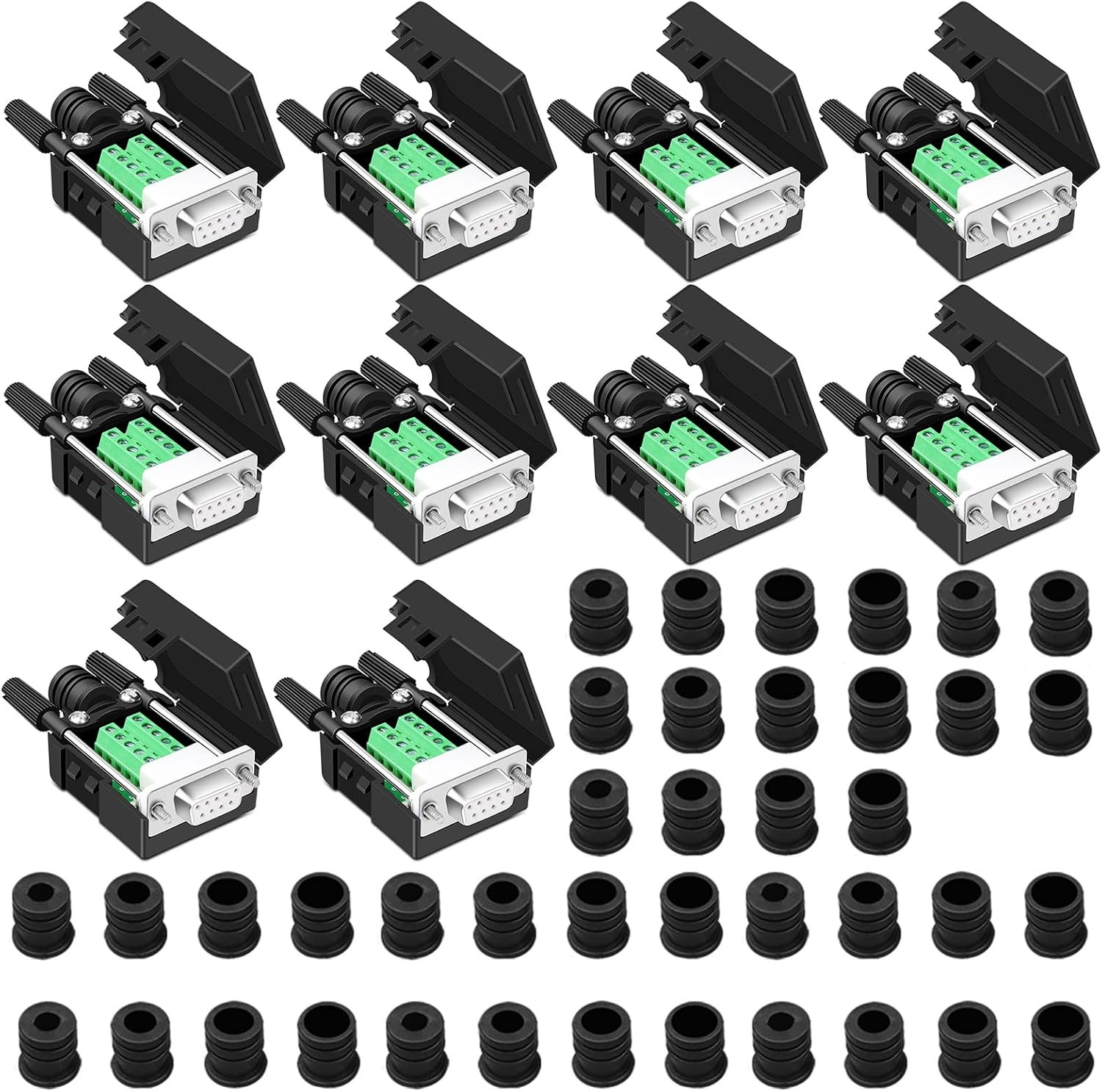

10 x DB9 Female Solderless Connectors

10x cable pressing plate

20x Screws

20x Long bolts

10x 5mm tail pipe

10x 6mm tail pipe

10x 7.5mm tail pipe

10x 8.5mm tail pipe

Technical Specifications: Name DB9 Solderless Module Plug type Female Connector material pure copper plated joint Contact Material Copper Housing Material PP engineering materials Pin Pitch 3.81mm/0.15in Cable Specification 26-16 AWG Torque 0.2Nm (1.7Lb-In.) Size 52 mm×34 mm×21.5 mm/ 2.05″×1.34″×0.85″ Shell Type folding snap-on Opening size (cable port) 10.5mm/0.41″ Accessories housing, screw, card line buckle Usage Method Step 1

Release the terminal

Step 2

Core wire peeling(about 3mm), Place the core wire in the hole and tighten

Step 3

Press the cable with a crimp

Step 4

Check wiring and cover the casing

• HIGH QUALITY&DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.
• EASY TO USE: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring. The housing is designed with a folding buckle for easy assembly and disassembly without tools.
• HIGH COMPATIBILITY: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera,PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
• HOMMIZATION:Each set of products is equipped with a set of cable pressing plate to prevent easy removal of the connected wires; Shell with non-slip design.
• INTUITIVE: All signal ports are clearly named and labeled on both sides of the board for quick wiring.
