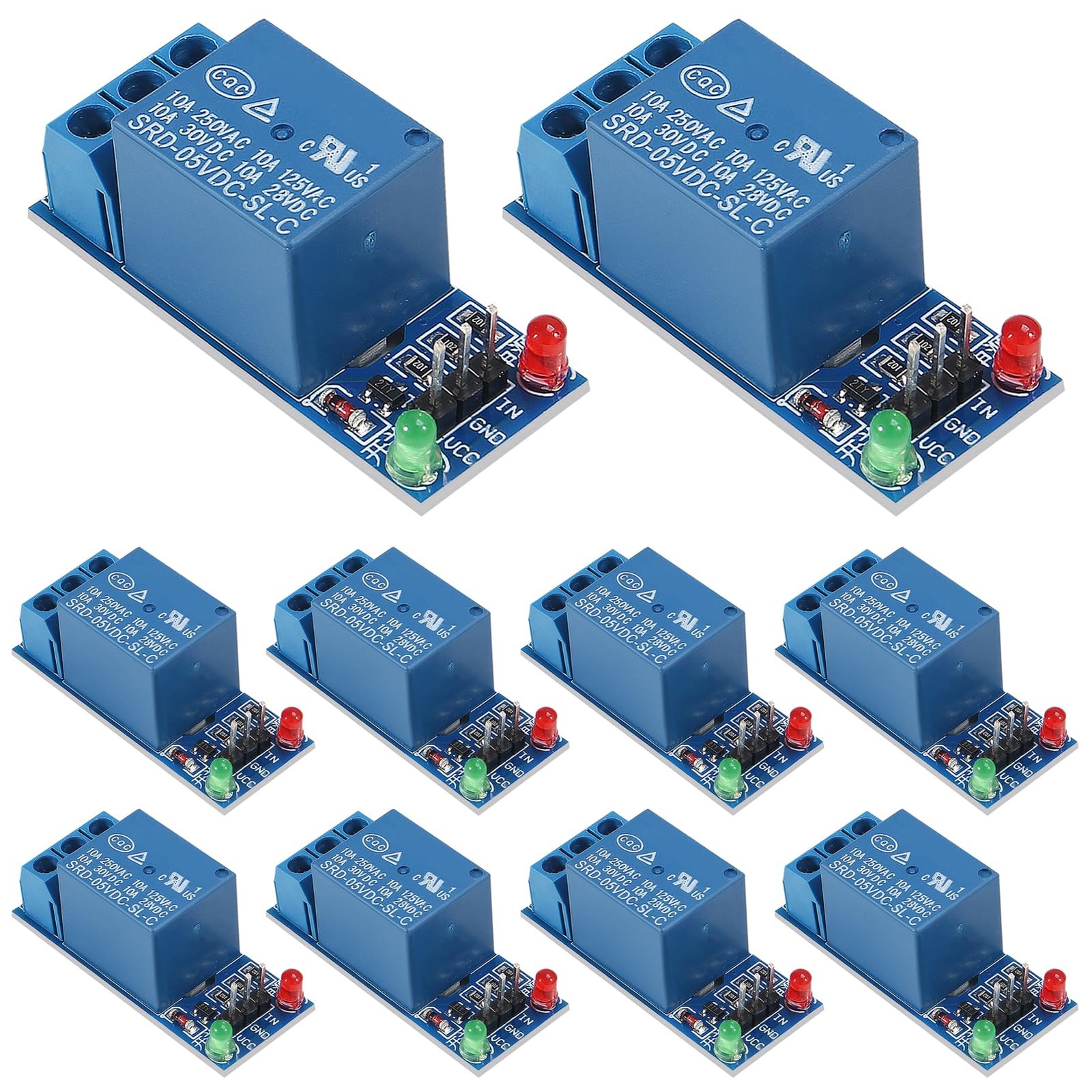

Module description:
Voltage version: 5V
Quiescent current: 4mA
Working current: 65mA
Trigger voltage: 0-1.2V
Trigger current: 2mA
The module can be high or low by a jumper setting trigger
Fault-tolerant design, even if the control line is broken, the relay will not operate;
The power indicator (green), the relay status indicator (red)
The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient.
Module interface:
DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay
Relay outputs:
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface
Package Include :
10 x Relay module
1 Channel Relay Module: Operating Voltage: 5V; Static Current: 5.;Static Current: 42mA; Trigger Voltage: 0-4V; Trigger Current: 3mA;Indicator Light: LED
Low-Power Operation:5V Supply, Low Current: 4mA (Quiescent), 65mA (Working).Trigger: 0-2V, 2mA.
It can be not only used as a microcontroller development board module, but also as a home appliance control.The control DC or AC signal, you can control 220V AC load.
Meet International Safety Standards: the control area and the load area have isolation tank.
Application: 5V Relay Module Can be Used as a MCU Development Board Module, Can be Used as Home Appliances Control; Widely Used in Industrial Automation, Electric Furnace Heating, Stage Lighting Control, Photocopiers, Medical Equipment, Petrochemical Equipment,CNC Machine Tools and Other Automation Control Areas and So On etc.
