12 Color Fiber Optic Fusion Splice Protection Sleeve Heat shrink tube 6000pcs
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
12 Color Fiber Optic Fusion Splice Protection Sleeve Heat shrink tube 6000pcs
Price: CN $295.00


12 Color Fiber Optic Fusion Splice Protection Sleeves-Wholesale6000pcs (1200pcs/set, 500pcs each color)


Free Shipping and Fast Delivery


Overview:


On this sale we offer you Premium Quality fiber optic fusion splice protection sleeves in 12 different colors Sea Blue, Sky Blue), diameter after shrinkage 2.7mm , length: 60mm,The product tested and positively evaluated by many customers. Stiffness of connection and quickness of assembly are the basic advantages of this solution.

We offer a good product in very good price for 6000pcs on this sale the sleeve PT-60B. Don't hesitate to order five set 6000pcs. We guarantee, next time you order more.

Insure every shipment!

After buying send us information what type you need.

Product features

  1. Keep optical transmission performance of optical fiber
  2. Provide safe protection to optical fiber splicing
  3. Airproof configuration keeping the splice point's good resistance of humidity and temperatur
  4. Easily use and avoid any damages to the optical fiber during installation
  5. Operating temperature ranging from -45 degto 100 deg
  6. Minimum fully recoverytemperature:120degree
  7. Strength member is made from "Full hard" stainless steel and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking.
  8. Hot melt adhesive tube made from polyolefin Ethyl Vinyl Acetate copolymer bonds both to the fiber and heat shrinkable outer tube to effectively encapsulate fusion splice.
  9. Long term proven performance, exceeds industry standards with satisfied customer

Product specifications

  1. Outer diameter after recovery: OD2.7 mm +/- 0.1mm
  2. Hole diameter before recovery: OD1.7+/- 0.1mm
  3. Pin diameter: OD 1.15 mm+/- 0.02mm
  4. Minimum installation temperature: 110degree
  5. Max installation time: 60 seconds
  6. Standard color: Clear
  7. Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
  8. RoHS compliant
  9. Packing: 100 pcs per bag (Others for special order)

Packing Contents

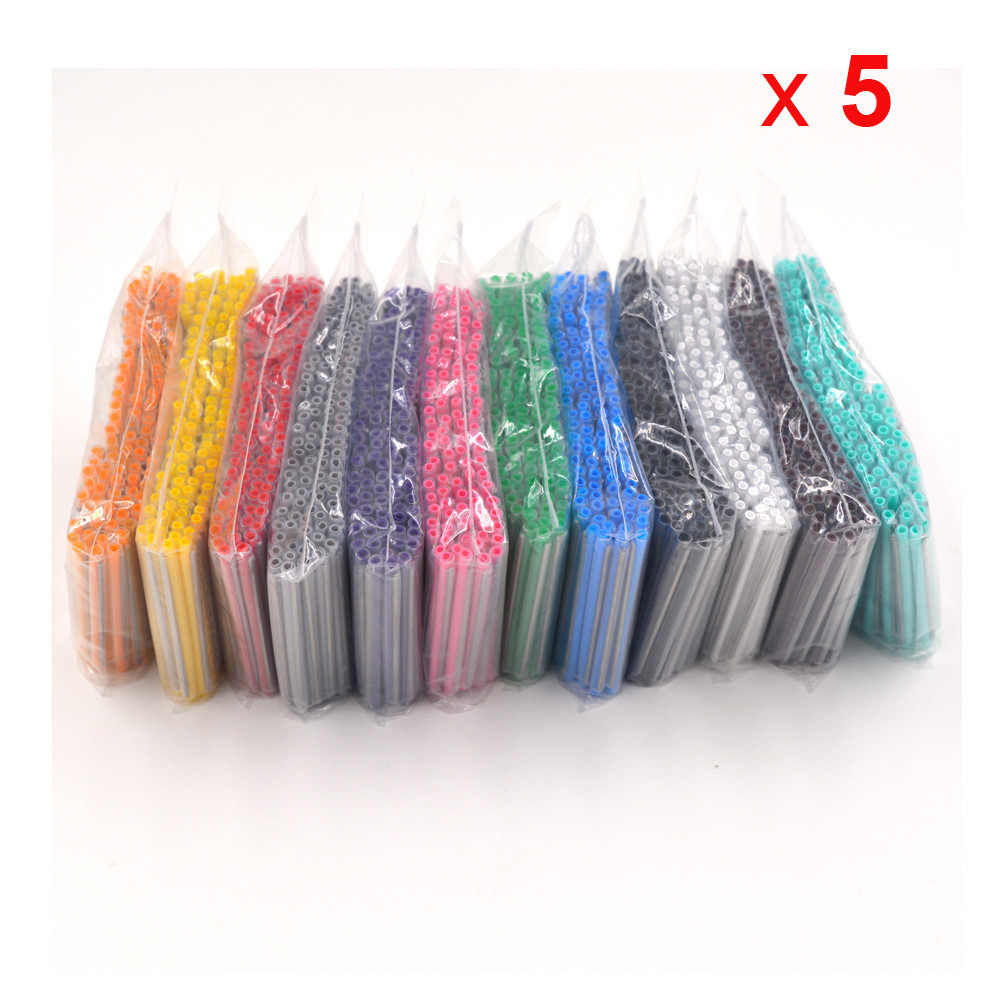

6000pcs (5 sets) x Fibersplice protection sleeves, 500pcs each color (12 colors)
