Main Parameters
Product Name

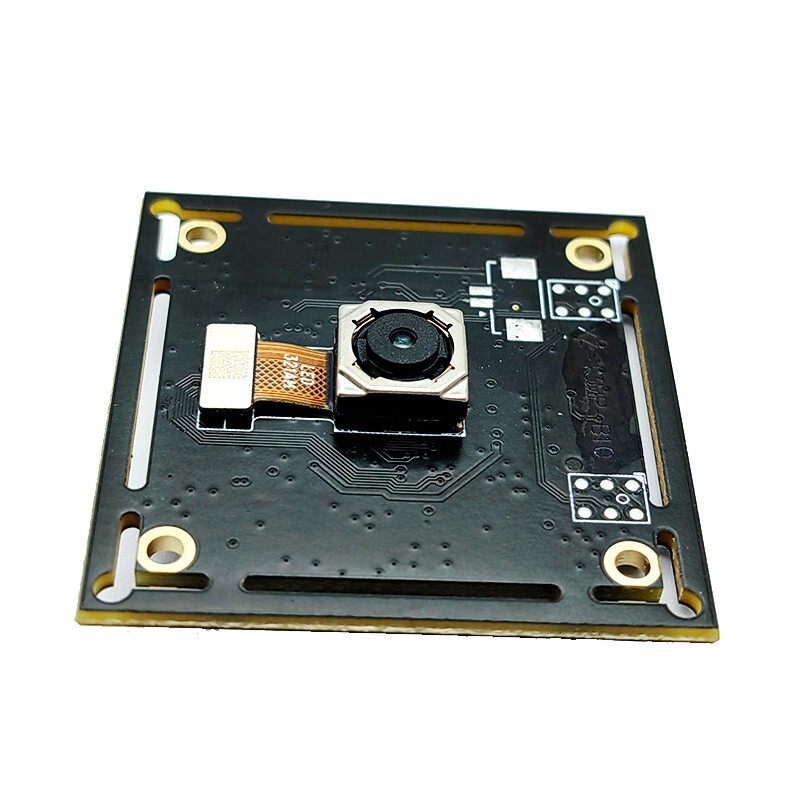

13MP USB2.0 Camera Module
Product Code
WN-L2311K376 13MP
Module Size
38*38mm
Image Sensor
1/3.06-inch CMOS Sensor
Max. Resolution
4160H*3120V
Pixel Size
1.12*1.12μm
Output Format
MJPEG, YUY2
Field of View
80°
Lens
EFL: 3.46mm, F/No: 2.2, 6P+IR 650nm
Focus Mode
Autofocus
Shutter Mode
Electronic Rolling Shutter
Audio Input
Digital Microphone
Output & Power Supply
High Speed USB2.0
Interface
5PIN 1.0mm Connector (SM05B-SRSS-TB)
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
4160*3120 (13MP)
15FPS
4000*3000 (12MP)
15FPS
3840* 2160 (8MP)
30FPS
2592* 1944 (5MP)
30FPS
1920*1080 (1080P)
30FPS
1280*720 (720P)
30FPS
YUY2
640*480 (VGA)
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
210mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
