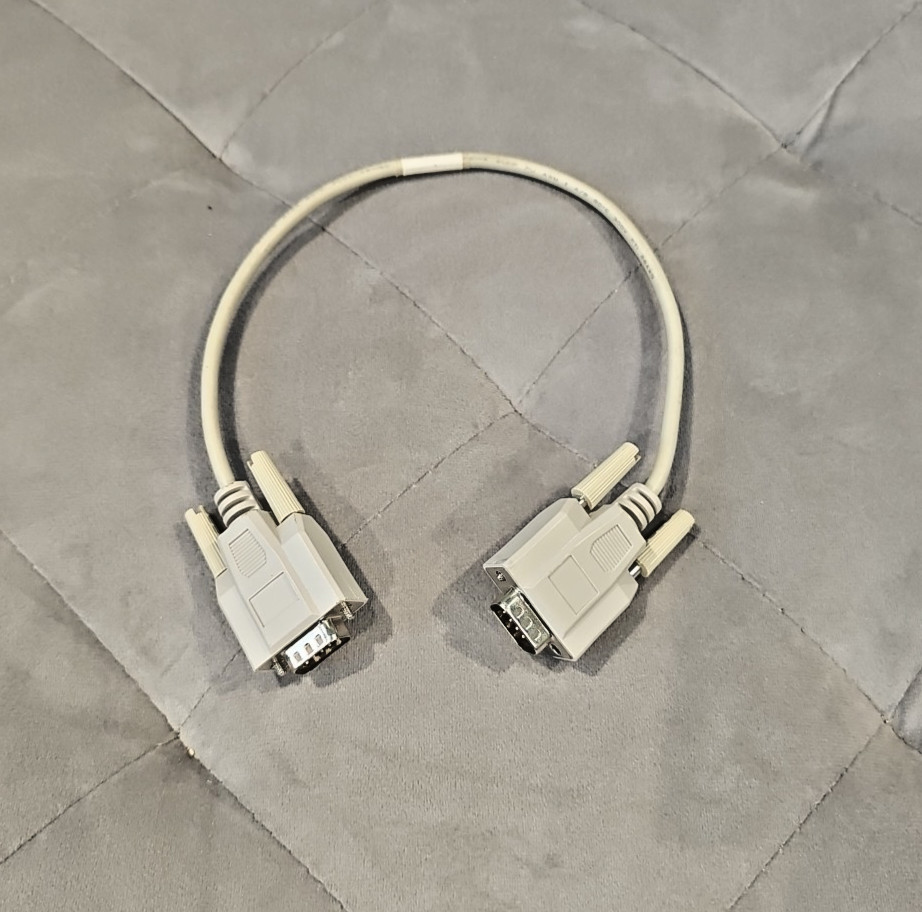

The DB9 Serial Null Modem Cable is a specialized RS-232 serial cable with cross-wired pins. It connects two Data Terminal Equipment (DTE) devices—like two computers or a PC to a server/router—directly, allowing them to communicate without a modem.
Originally purchased from Campbell Scientific, for connecting cellular modems to Data Loggers.How It Works

• Standard (Straight-through) Cable: Pin 2 connects to Pin 2, causing the transmit (Tx) line of one device to connect to the Tx of the other (meaning both talk simultaneously, and no data is received).
• Null Modem Cable: Internally crosses the Tx (Transmit) and Rx (Receive) lines. The Tx of the first connector links to the Rx of the second connector, and vice versa. This cross-linked setup acts as a crossover cable, allowing two devices to both talk and listen to each other.

Common Uses

• Networking Equipment: Used for configuring routers, switches, and firewalls by connecting a PC's serial port to the device's console port.
• Legacy Peripherals: Connecting older equipment like serial printers or scientific instruments directly to a computer.
• File Transfers: Allowing older computers to exchange files directly via terminal software.
• Hardware Debugging: Plugging microcontrollers and development boards directly into a PC for programming and debugging.
