High Quality￠3.0 Fiber Fusion Splice Sleeve 60mm -2400pcs/lot
We offer the competitive prices on for Very High QUALITY Fiber fusion splice protection sleeves
Fast Shipping, Fast Delivery via expediated DHL/FedEx/EMS with Tracking number

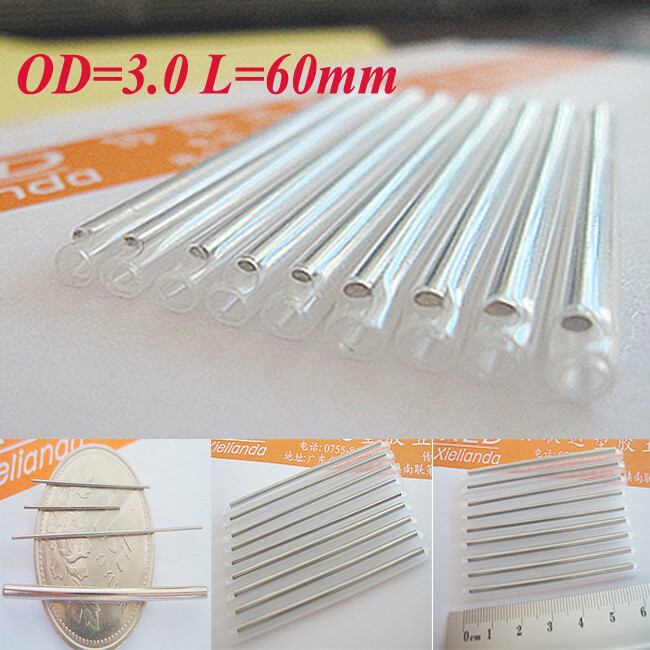

GT - Fiber optic fusion splice sleeve OD=3.0mm L=60mm - 2,400pcs.
On this sale we offer you premium quality fiber optic fusion splice protective sleeve, diameter after shrinkage 3.0mm , lengths: 60mm, The product tested and positively evaluated by many customers. Stiffness of connection and quickness of assembly are the basic advantages of this solution.
We offer a good product in very good price for 2,400pcs. On this sale the sleeve GT-60A. Don't hesitate to order one pack 2,400pcs. We guarantee, next time you order more.
Insure every shipment!
Product features:
1. Clear sleeve make it easy to detect splice before shrinkage
2. Airproof configuration keeping the splice point's good resistance of humidity and temperature
3. Easily use and avoid any damages to the optical fiber during installation
4. Operating temperature ranging from -45°C to 100°C
5. Minimum fully recovery temperature : 120 °C
6. Strength member is made from "Full hard" stainless steel of 304 grade and is ground at the edges before polishing to make it completely burr free to avoid rupturing during shrinking. 304 grade gives better corrosion resistance, even in coastal environment. Resistant to heat shocks, no cracking dripping or flowing
7. Hot melt adhesive tube made from polyolefin Ethyl Vinyl Acetate copolymer bonds both to the fiber and heat shrinkable outer tube to effectively encapsulate fusion splice.
Specification:
Series GT
Code:GT-XX
Fiber Optic Fusion Splice Protection Sleeves
Series GT
Fiber size: 250/900
Part No.
L
Lp
D
Dp
d
Stock
GT-60A
60
54
3.0+/-0.1
1.5
1.3
√
GT-45A
45
40
3.0+/-0.1
1.5
1.3
√
GT-40A
40
35
3.0+/-0.1
1.5
1.3
√
GT-60B
60
54
2.5+/-0.1
1.2
1.5
√
GT-45B
45
40
2.5+/-0.1
1.2
1.5
√
GT-40B
40
35
2.5+/-0.1
1.2
1.5
√
GT-60C
60
54
2.4+/-0.1
1.0
1.5
√
GT-45C
45
40
2.4+/-0.1
1.0
1.5
√
*Other size on special order. All dimensions in mm.
L - Length after recovery
Lp - Pin length
D - Outer diameter after recovery
Dp - Pin diameter
d - Hole diameter before recovery
XX - Color
√- Stock
- Production
Product properties
1. Outer diameter after recovery: OD3.0 mm +/- 0.1mm
2. Hole diameter before recovery: OD1.3 mm
3. Pin diameter: OD 1.5 mm
4. Minimum installation temperature: 110°C
5. Max installation time: 60 seconds
6. Standard color: Clear
7. Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
8. RoHS compliant
9. Packing: 100 pcs per bag (Others for special order)
Package include:2,400PCS x GT-60A Fiber splice fusion protector.
