Description

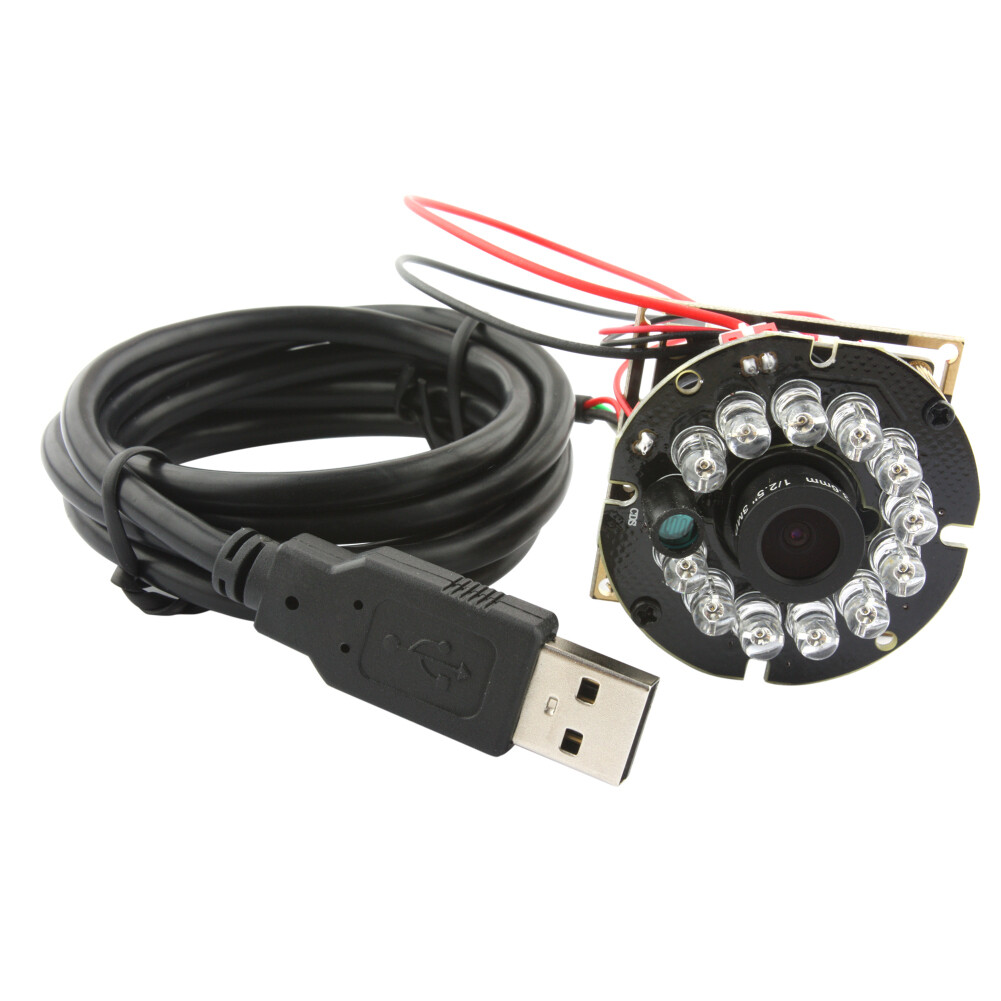

8mm lens 2megapixel 1920*1080 12pcs IR LED CCTV Surveillance Linux Android Windows Infrared mini cmos USB camera module OV2710
The HD 1080P USB CMOS board camera module(model: ELP-USBFHD05M serials) is ideal for many applications like security systems, portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.
The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.
Features:
*1080P HD high resolution USB Camera
*Can used as Endoscope Camera with high speed
*All kinds of resolution optional
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification:
LENS: 3.6mm /2.1mm/2.8mm/6mm/8mm/12mm Optional)
(can also choose other suitable lens as your required view angle)
CABLE: 1m USB cable (2M/3M/5M optional
Optional models
ELP-USBFHD05M-ARL21(2.1mm lens)
ELP-USBFHD05M-ARL28(2.8mm lens)
ELP-USBFHD05M-ARL36(3.6mm lens)
ELP-USBFHD05M-ARL60(6mm lens)
ELP-USBFHD05M-ARL80(8mm lens)
ELP-USBFHD05M-ARL12(12mm lens)
Sensor
1/2.7" CMOS OV2710
Lens size
200W, 2.0megapixel, 1920(H)x1080(V)pixels
Max. Resolution
1920X1080
Picture format
MJPEG
USB Protocal
USB2.0 HS/FS, USB1.1 FS
Support free driver
USB Video Class(UVC)1.1
Auto exposure AEC
Support
Auto white blance AEB
Support
Frame rate
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps
320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps
Adjustable parameters
Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision
optional, can choose IR board
view angle
30-150 degree optional
voltage
DC 5V
current
150mA
work temperature
DEGREES(-20~70)
Size
32x32mm/38*38
Support OS
WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above
Effective Pixels:
1920 (H) x 1080 (V) pixels
1280 (H) x 1024 (V) pixels
1280 (H) x 720 (V) pixels
1024 (H) x 768 (V) pixels
800 (H) x 600 (V) pixels
640 (H) x 480 (V) pixels
352(H) x 288 (V) pixels
320 (H) x 240 (V) pixels
Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps
352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps
320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,
endoscope, Medical auxiliary equipment, etc.
