Description:

PN5180 module NFC RF I sensor support ISO15693 RFID high frequency IC card ICODE2 read and write

PN5180 Module Introduction:

PN5180 can support more cards with different protocols (ISO / IEC 18092.14443 A / B, FeliCa, 15693),

Increasing the DPS function increases the stability of the reception, (more likely to be EMV, improve antenna response).

PN5180 supports card emulation and PEER TOpeer mode, NFC chip.

Module using the application of more serial peripheral interface SPI

Overview:

PN5180 is a multi-protocol NFC front end with high output power, dynamic power control (DPC), adaptive waveform control (AWC) and adaptive receiver control (ARC) and multiple power saving features, even in harsh conditions, Efficient, stable and reliable operation.

PN5180 for POS terminals, with a new generation of mobile phones to support NFC to achieve the largest interoperability. High-performance NFC front end to meet the radio frequency EMV standards.

characteristic:

Dynamic power control (DPC), even in the case of antenna imbalance can also optimize the RF performance

Adaptive Waveform Control (AWC) automatically adjusts the transmitter to fit the RF standard

Adaptive Receiver Control (ARC) automatically adjusts the receiver parameters to achieve consistent reliable communication

Automatic EMD processing without host interaction relaxes the timing requirements on the host controller

Key Benefits:

High RF output power

Compliance with all standards related to NFC, contactless operation and EMVCo

Active Load Demodulation Supports more compact antennas for card emulation mode

Target application

Pay

Physical access control

E-government

industrial control

Package:

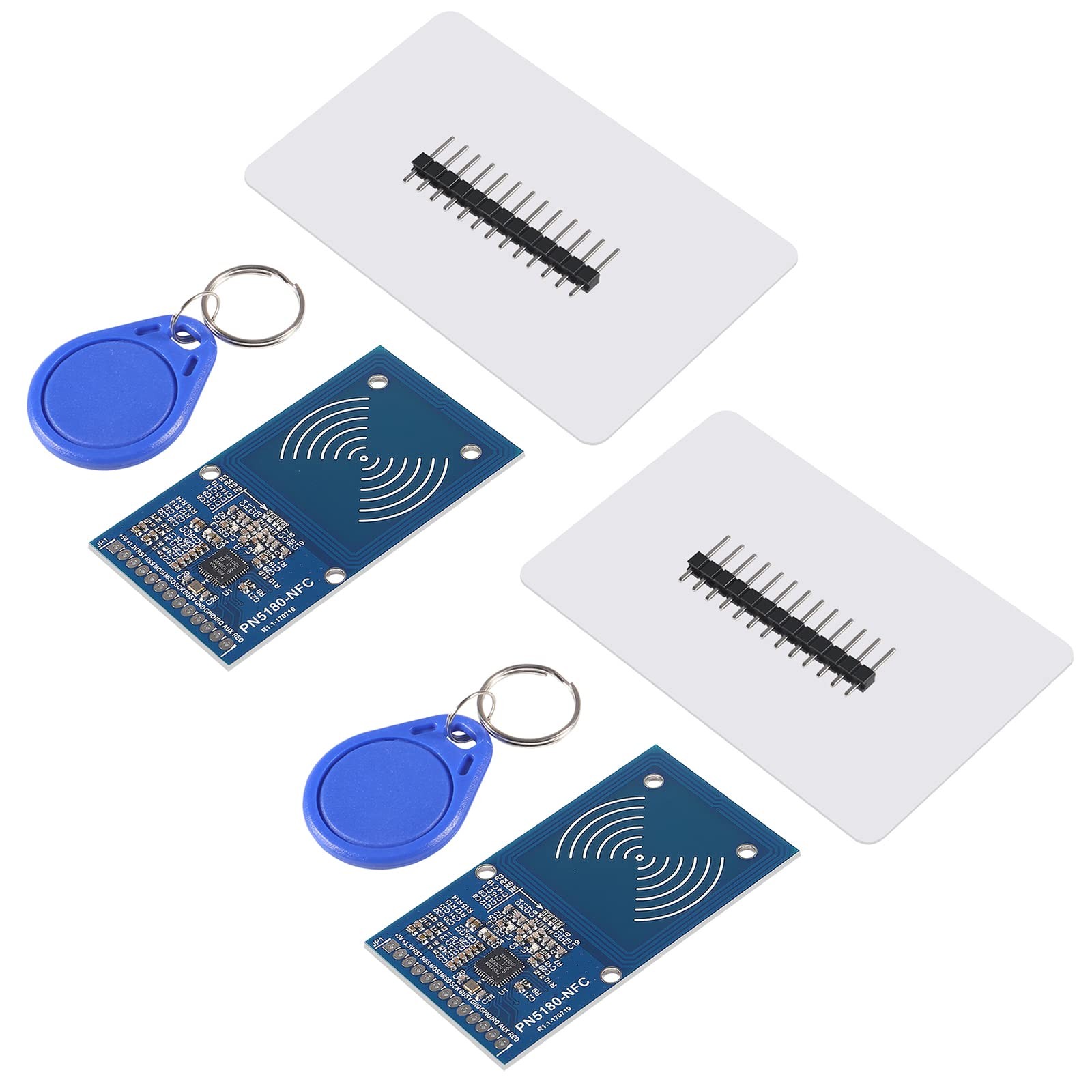

2*PN5180 Reader&Writer Module

2PCS PN5180 NFC RF I Sensor ISO15693 RFID High Frequency IC Card ICODE2 Reader Writer
PN5180 supports card emulation and PEER TO peer mode, NFC chip.
PN5180 can support more cards with different protocols (ISO / IEC 18092.14443 A / B, FeliCa, 15693)
Module uses serial peripheral interface SPI
Application：Pay，Physical access control，E-government，Industrial control
