T568B wiring standard is usually used for interconnection between different devices, such as the connection between switches or PC/HUB devices. T568B Wiring Diagram: White-Orange 、Orange 、White-Green、 Brown. T568A Wiring Diagram: White-Orange、 Green、 White-Brown、 Brown (for Similar device connection as PC to PC or Switch to Switch)
The RJ45 breakout board application range of using T568B direct connection interconnection is: both ends of the network cable are connected according to T568B. Computer and ADSL modem; WAN port of ADSL modem and ADSL router; LAN port of computer and ADSL router; computer and hub or switch.
Specifications:
Material: Plastic & Metal
Connectors 1: RJ45 8P8C Female Socket
Connectors 2: 8 Pin Screw Terminals
Wire range: AWG28～16
Pin: 8way/pin
Color: Black+Green
Package included:

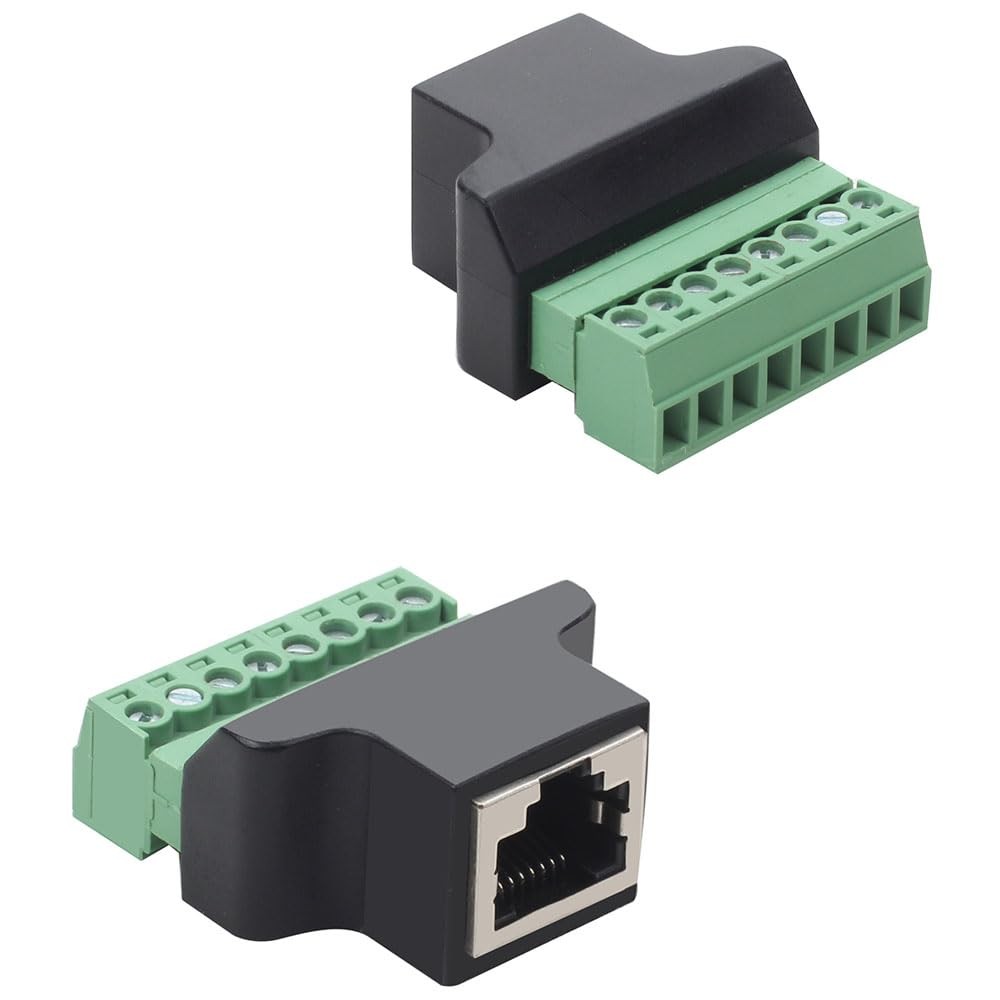

2 X RJ45 Female To 8 Pin Screw Terminal Converter Adapter
This RJ45 to 8 Pins Screw Terminal Block Adapter is wired in accordance with the EIA/TIA 568B wiring standard for structured cabling.
Stability: Reliable connection, strong signal stability and reliability. It is used to connect external network cables and transmit network signals. Also nice to have to debug signaling.
Easy to use: No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.and CCTV camera or data distribution.
Great for splitting pairs on UTP cable or re-wire an Ethernet line and CCTV camera or data distribution. For UTP Cat5, Cat6 and Cat7 cable. Use with baluns that have RJ45 video ports.
This 8P8C/ RJ45 adapter can fixed interface efficiently shield outside electromagnetic signal interference, prevent damage and avoid the lack of network signals.
