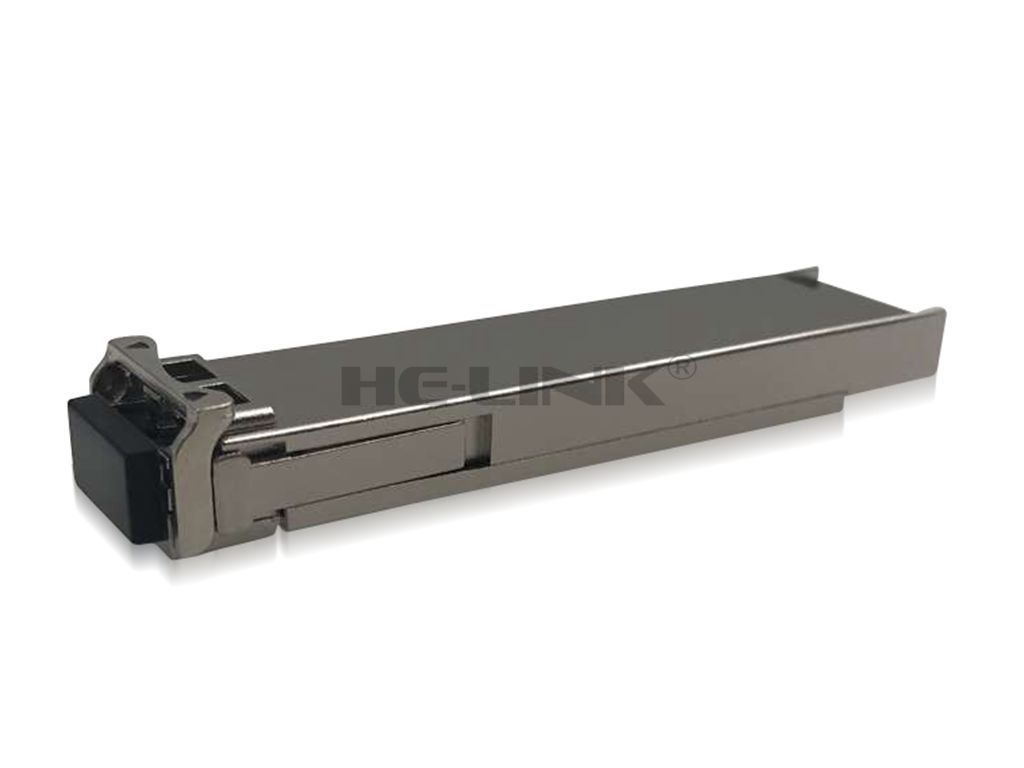

3HE00566CA Alcatel-Lucent Nokia Compatible 10GBASE SR XFP 850nm 300m Transceiver
Product Features:* Supports 9.95Gbps to 11.3Gbps bit rates* Maximum link length of 300m (50um,MMF,2000MHz.Km)* 850nm VCSEL laser and PIN receiver* XFP MSA Rev 4.5 Compliant* No reference clock required* +1.8V,+3.3V Supply Voltage* Low Power Dissipation 1.5W Maximum* XFI and lineside loopback Mode Supported* 0ºC to 70ºC Operating Case Temperature* Diagnostic Performance Monitoring of module temperature, Supply Voltages, laser bias current, transmit optical power, and receive optical power.* RoHS6 compliant (lead free)
Applications:* 10GBASE-SR/SW 10G Ethernet* Fiber Channel* Other optical links* 10GBASE-SR/SW 10G Ethernet with FEC
