High Quality Fiber Optic Fusion Splice Sleeve OD2.5 60mm -400pcs/lot
Don't choose low cost, generic, poor quality, not quality item, Choose Optimal, Choose us.

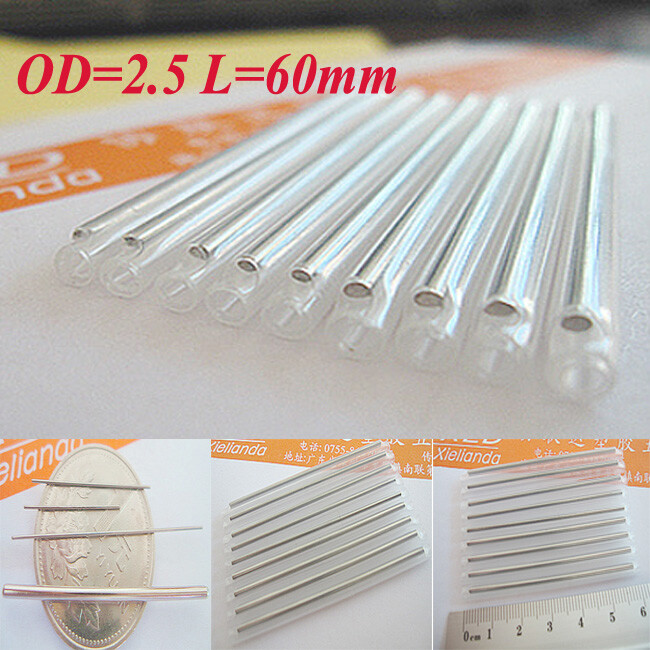

GT - Fiber optic fusion splice sleeve OD=2.5mm L=60mm - 400pcs.
On this sale we offer you premium quality fiber optic fusion splice protective sleeves, diameter after shrinkage 2.5mm , lengths: 60mm, The product tested and positively evaluated by many customers. Stiffness of connection and quickness of assembly are the basic advantages of this solution.
We offer a good product in very good price for 400pcs. On this sale the sleeve GT-60B. Don't hesitate to order one pack 400pcs. We guarantee, next time you order more.
Insure every shipment!
Product features:
1. Clear sleeve make it easy to detectsplice before shrinkage
2. Air-proof configuration keeping thesplice point's good resistance of humidity and temperature
3. Easily use and avoid any damages to theoptical fiber during installation
4. Operating temperature ranging from -45°Cto 100°C
5. Minimum fully recovery temperature : 120°C
6. Strength member is made from "Fullhard" stainless steel of 304 grade and is ground at the edges beforepolishing to make it completely burr free to avoid rupturing during shrinking.304 grade gives better corrosion resistance, even in coastal environment.Resistant to heat shocks, no cracking dripping or flowing
7. Hot melt adhesive tube made frompolyolefin Ethyl Vinyl Acetate copolymer bonds both to the fiber and heatshrinkable outer tube to effectively encapsulate fusion splice.
Specification:
Series GT
Code:GT-XX
Fiber Optic Fusion Splice Protection Sleeves
Series GT
Fiber size: 250/900
Part No.
L
Lp
D
Dp
d
Stock
GT-60A
60
54
3.0+/-0.1
1.5
1.3
√
GT-45A
45
40
3.0+/-0.1
1.5
1.3
√
GT-40A
40
35
3.0+/-0.1
1.5
1.3
√
GT-60B
60
54
2.5+/-0.1
1.2
1.5
√
GT-45B
45
40
2.5+/-0.1
1.2
1.5
√
GT-40B
40
35
2.5+/-0.1
1.2
1.5
√
GT-60C
60
54
2.4+/-0.1
1.0
1.5
√
GT-45C
45
40
2.4+/-0.1
1.0
1.5
√
*Other size on special order. All dimensions in mm.
L - Length after recovery
Lp - Pin length
D - Outer diameter after recovery
Dp - Pin diameter
d - Hole diameter before recovery
XX - Color
√- Stock
- Production
Product properties
1. Outer diameter after recovery: OD2.5 mm +/- 0,1mm
2. Hole diameter before recovery: OD1.5 mm
3. Pin diameter: OD 1.2 mm
4. Minimum installation temperature: 110°C
5. Max installation time: 60 seconds
6. Standard color: Clear
7. Compliant norms: UL224,MIL-I-23053, GR-1380-CORE, ZN-96 TPSA-006
8. RoHS compliant
9. Packing: 100 pcs per bag (Others for special order)
Package include:
400PCS x GT-60B Fiber splice fusion protector.
