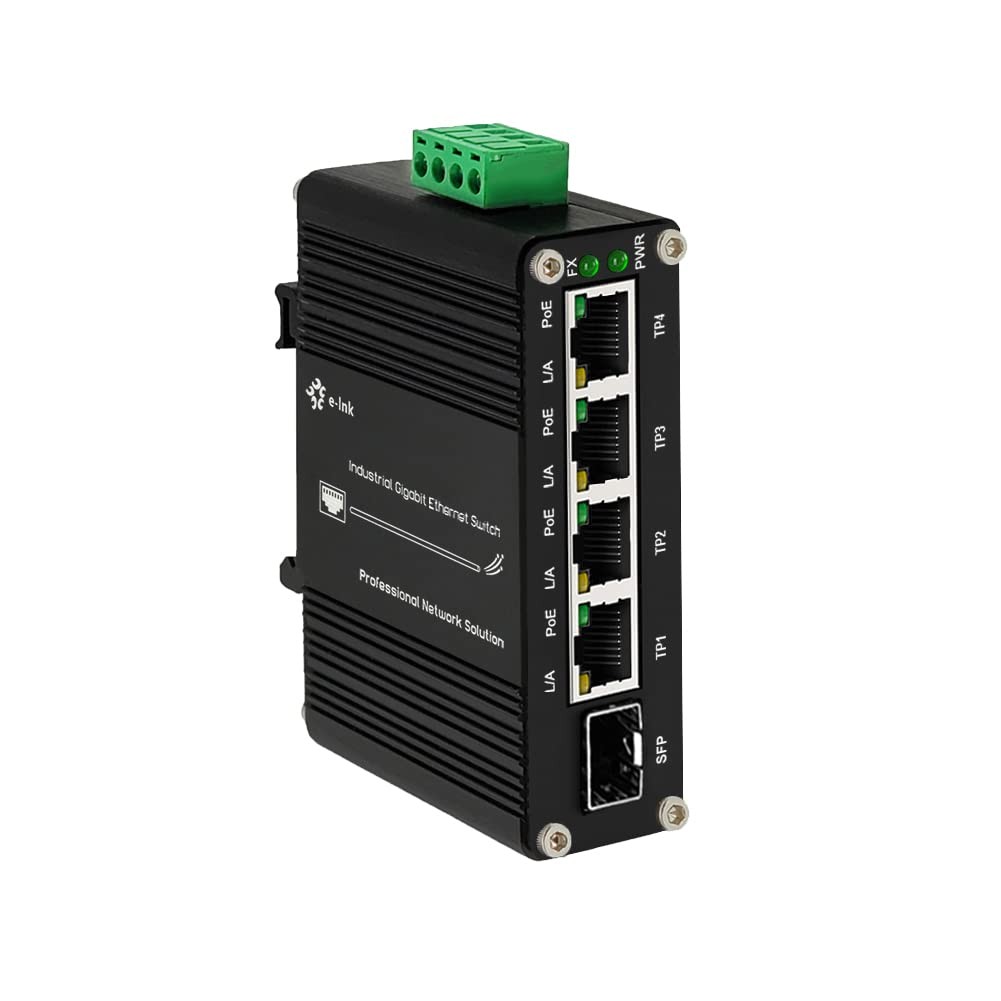

4X1000M RJ45 IEEE802.3af/at 30W-1X1000M SFP Industrial PoE Switch

• 10/100/1000Mbps POE+ Ethernet: 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function. 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection). Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex.
• 12~48V DC Input: The POE switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.
• Industrial Grade Quality: Use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.
• Aluminum material: Using Aluminum material with exquisite appearance, good corrosion resistance.
• Din-Rail & Wall Mount: The Hardened Ethernet POE switch come with 35mm Din-rail Clip and Wall mount accessories.

Overview：

E-link Mini Industrial 4 Port 10/100/1000Mbps Gigabit Ethernet PoE+ Switch with SFP Port Din Rail/Wall-Mount 4 Port 10/100/1000BASE-T RJ45 + 1 Port 100/1000FX (SFP) support 12-48V DC Included (-40°F to 167 ºF) 10Gbps Switching Capacity.

Specification：

This Mini Industrial 4 Port 10/100/1000Mbps Gigabit Ethernet PoE+ Switch with SFP Port supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. With reliable and simple operation against vibration and shock, and wide operation emperature range, it could match a variety of harsh environment.

Features:

► 4-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function.

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection).

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex.

► Support DC 12V~48V wide range voltage input with built-in voltage booster.

► Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature.

► Redundant Power Inputs.

Specifications:

Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control. IEEE802. 3af (PoE), IEEE802. 3at (PoE+)

Casing Material: Aluminum Case

Input Power: 12~48V DC (Terminal Block)

Packet Buffer Memory: 1Mbits

Max Packet Length: 9K Bytes

Switch Capacity: 10Gbps/non-blocking

Dimensions (WxDxH): 90 x 70x 29mm(3.74 x 2.76 x 1.15in)

Weight: 250g(0.55lb)

What’s in the package:

· 4-Port PoE Switch with SFP Port x1

· Wall Mounting Kit x1

· Gigabit Ethernet PoE Switch User Manual
