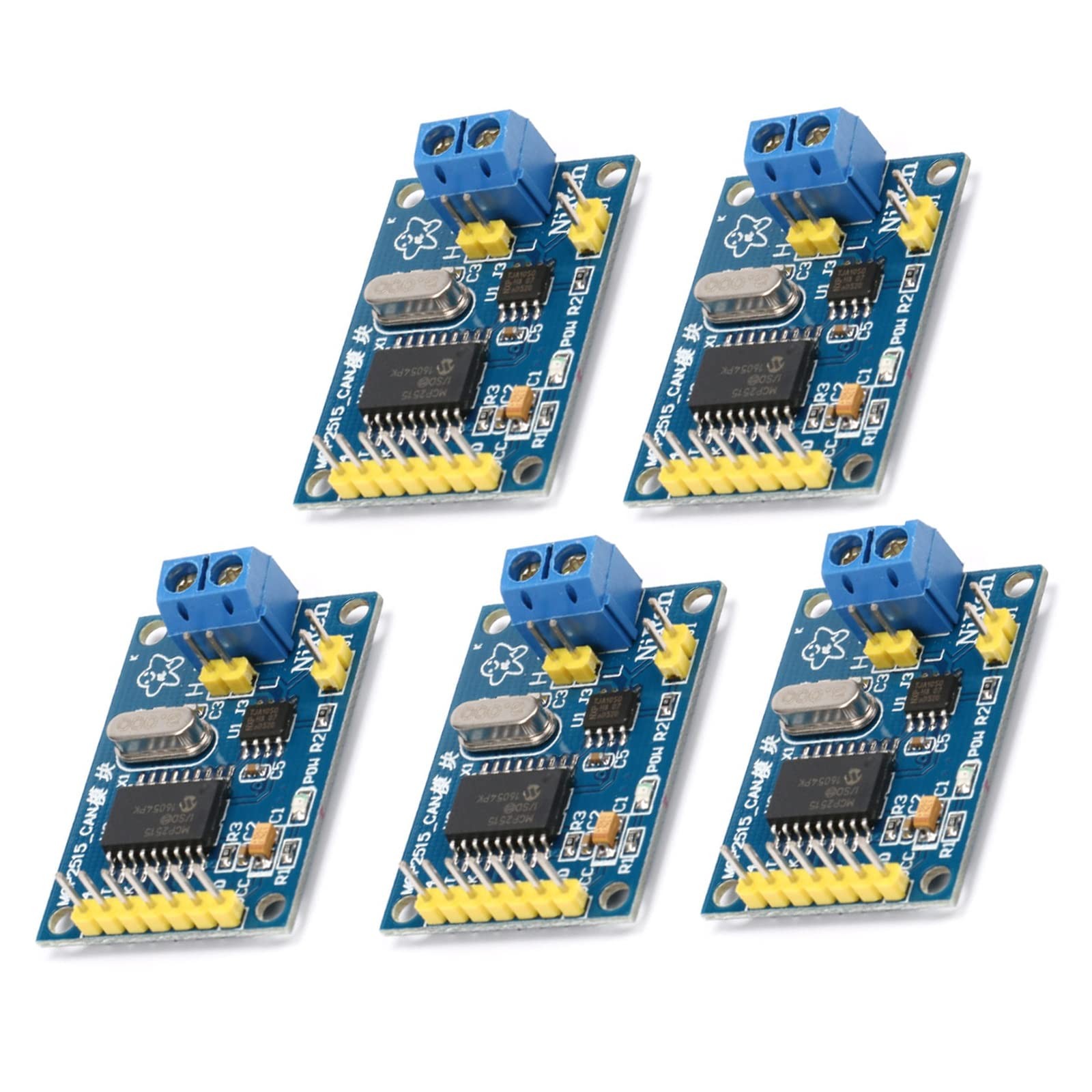

5Pcs MCP2515 Controller Module CAN Bus Module TJA1050 Receiver SPI Module for 51 MCU ARM Controller Development Board SPI Module for Arduino
5Pcs MCP2515 Controller Module CAN Bus Module TJA1050 Receiver SPI Module for 51 MCU ARM Controller Development Board SPI Module for Arduino
Description
Module characteristics:
Support CAN V2.0B technical specification, communication rate 1Mb/S 0~8 byte long data field
Standard frame, extended frame and remote frame
Module 5V DC power supply, SPI interface protocol control
120 ohm terminal resistance. Impedance matching ensures driving ability, and long-distance data transmission prevents signal emission
Module size: 44mm x 28mm positioning screw hole center spacing 23mm x 38mm
Working current: typical value: 5mA, standby current: 1μA. Except for power indicator
Working temperature: industrial grade - 40 ℃ to 85 ℃
Support CAN2.0B protocol
Use high-speed CAN transceiver TJA1050
SPI interface control can meet the need of a SPI host interface to expand multiple CAN bus interfaces
Onboard module SPI control pin, power indicator, 3mm mounting hole
Onboard 8M crystal oscillator, filtered tantalum capacitor, CAN controller
On-board CAN bus interface, CAN transceiver, terminal resistance selection
Features
- MCP2525 CAN module is a CAN bus module based on MCP2525 CAN controller and TJA1050 CAN transceiver
- The module circuit design is ingenious and reasonable, the circuit board is exquisite and generous, and the SCM program is simple and easy to understand
- The module is powered by 5V DC power supply. Through SPI protocol, it can be easily used on traditional 51 single-chip microcomputer, new 51 single-chip microcomputer, ARM and other controllers
- Support CAN V2.0B technical specification, communication rate 1Mb/S
- 120 ohm terminal resistance. Impedance matching ensures driving ability, and long-distance data transmission prevents signal emission
