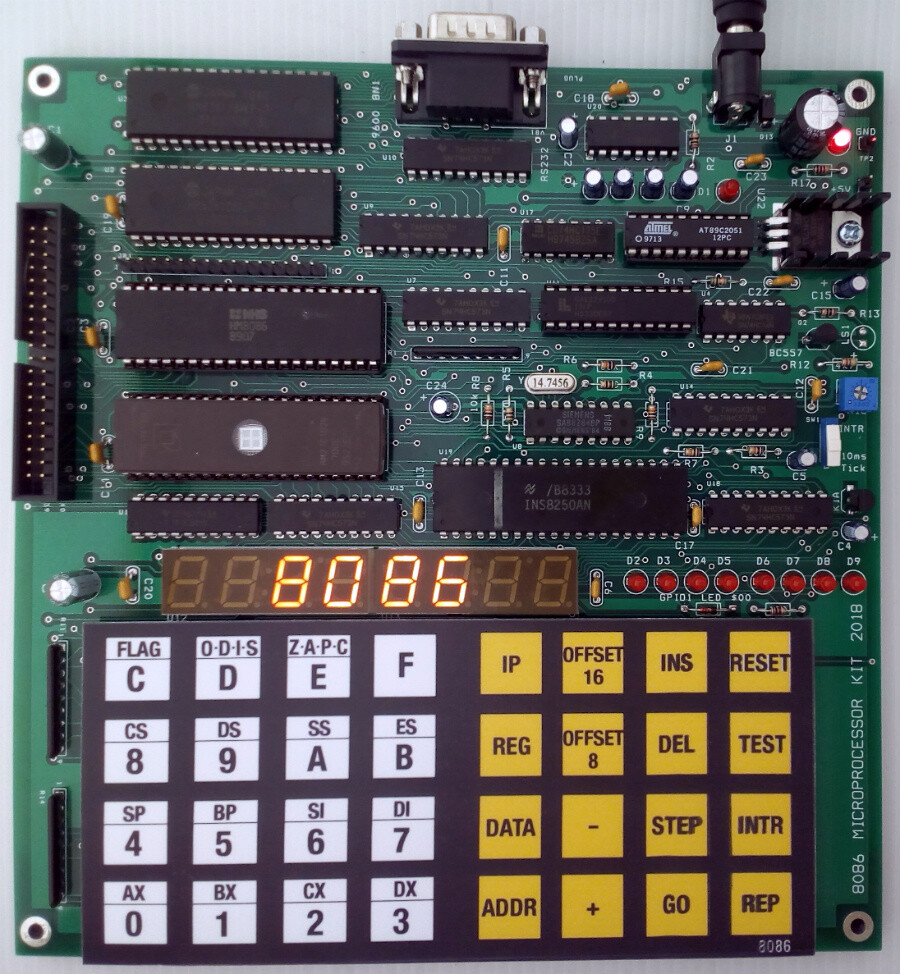

The 8086 microprocessor kit is another kit suggested by Francesco from Italy. The kit uses 8086, real 16-bit microprocessor. This kit has 16-bit EPROM for the monitor program, two 628128 SRAM for application program, 8250 UART chip for serial port. The platform is similar to all of my designs with 10ms tick generator for timer interrupt testing. I used GAL22V10, 24-pin PLD for memory and I/O decoders. Some hardware was similar to 8088 kit. With the 16-bit data bus, all I/O devices are located in EVEN addresses. The size is a bit bigger than 8-bit kits. The 8086 kit is suitable for learning the low level CPU operations of the popular x86 based microcomputer. Kit is available in both DIY and prebuilt, ready for testing.
Hardware features:
- CPU: 8086 16-bit microprocessor
- Oscillator: 8284, clock generator XTAL 14.7456MHz
- Memory: 256kB RAM, 256kB EPROM
- Memory and I/O Decoder chip: Programmable Logic Device GAL22V10
- Display: high brightness 6-digit 7-segment LED
- Keyboard: 32 keys
- RS232 port: 8250 UART 9600 bit/s 8n1
- Debugging LED: 8-bit GPIO1 LED at location 00H
- Tick: 10ms tick produced by 89C2051 for time trigger experiment
- Text LCD interface: direct CPU bus interface text LCD
- Brownout reset: KIA7042 reset chip for power brownout reset
- Power consumption: 500mA @9.0VDC AC adapter
- Expansion header: 40-pin header
More technical details: hardware schematic, program examples, please visit
Kit is pre-assembled and tested. No LCD, no AC Adapter.
For DIY kit, same price with free 16x2 LCD. Please add the note "DIY kit"
Free shipping worldwide with tracking.
