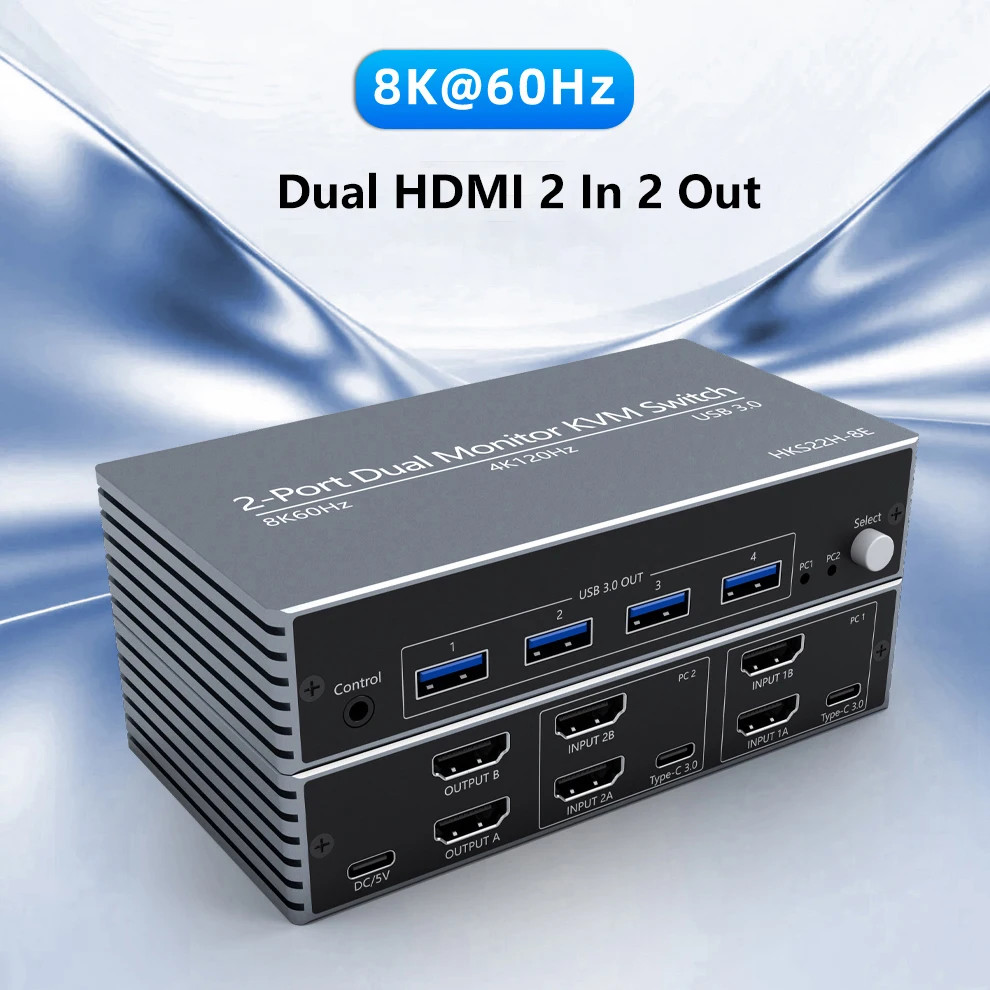

New arrival 8K 60Hz / 4K 120Hz Dual Display KVM Switch

Thiskvm switch allows you to control two computers sharing two monitors with
one set of keyboard and mouse, support extended & copy mode and with 4 USB3.0 Port
which can use for mouse keyboard,U disk and printer.


Very important:

There are 3options - Dual HDMI port , Dual DP port , HDMI + DP port,
please see the option picture and purchase it correctly .We will send you what as youpurchased.
2 in 2 out means can use for two computers and two monitors.


(Don't support any signal convertder.)


Hardware requirements:

1) PC or laptop must be capable of supporting 2 native HDMI video outputs Simultaneously.
And your pc or laptop must support Copyand Extended mode.
The KVM switch is just a bypass switch and cannot implement these functions by itself.

2) ThisKVM Switch can not increase the video out of your pc or laptop. if your PC or laptop does not
come with 2 native hdmi ports and capable of working simultaneously,the KVM Swich won't work.


Manual setting needed:

These KVM Switch with dual display does not support built-in EDID emulation.After switching from
one video source to another, manual setting might need to adjust the desktop.

Keyboards&mouse requirements

We tested tens of similar KVM Switch from various factories and brands, all of them have limited
compatibility with wireless&mechanica keyboards mouses.so,standard 104-key wired USB keyboard,
standard 2 or 3 button wired USB mouse are recommended. if your USB device cannot be compatibled,
pls change another USB device to use.


Cables requirements

Pls use qualified HDMI cables to pair the video soures and Display. Most Sync issues such as flickering
and drops are caused by poor cable. Poor cable might work well with a direct connections from source
to Display.But when it comes to long transmission, sync issues happens.


【for 8K HDMI+DP KVM Switch】

This kvm switchincludes DP and HDMI ports,so please make sure your computers/laptops
have DP+HDMI port,and KVM don't support the signal conversion function (HDMI input can
only be output to a monitor with HDMI, DP input can only be output to a monitor with DP).
The DP and HDMI ports of pc1 in on the product must be connected to the same computer,pc2 ditto.


Package Contents：

1 x 8K 60Hz Dual DisplayKVM Switch(optional)
2 x USB 3.0 data cable
1 x Desktop controller switching cable
1 x User Manual

Without retail box and other accessories,if any need,pls contact us before purchase

Following use DP+ HDMI version as sample for introduction:

PLS Attention :
