This listing camera lens is 8mm. We also have 3.6mm 6mm for your option. if you need, please leave note or reach us.

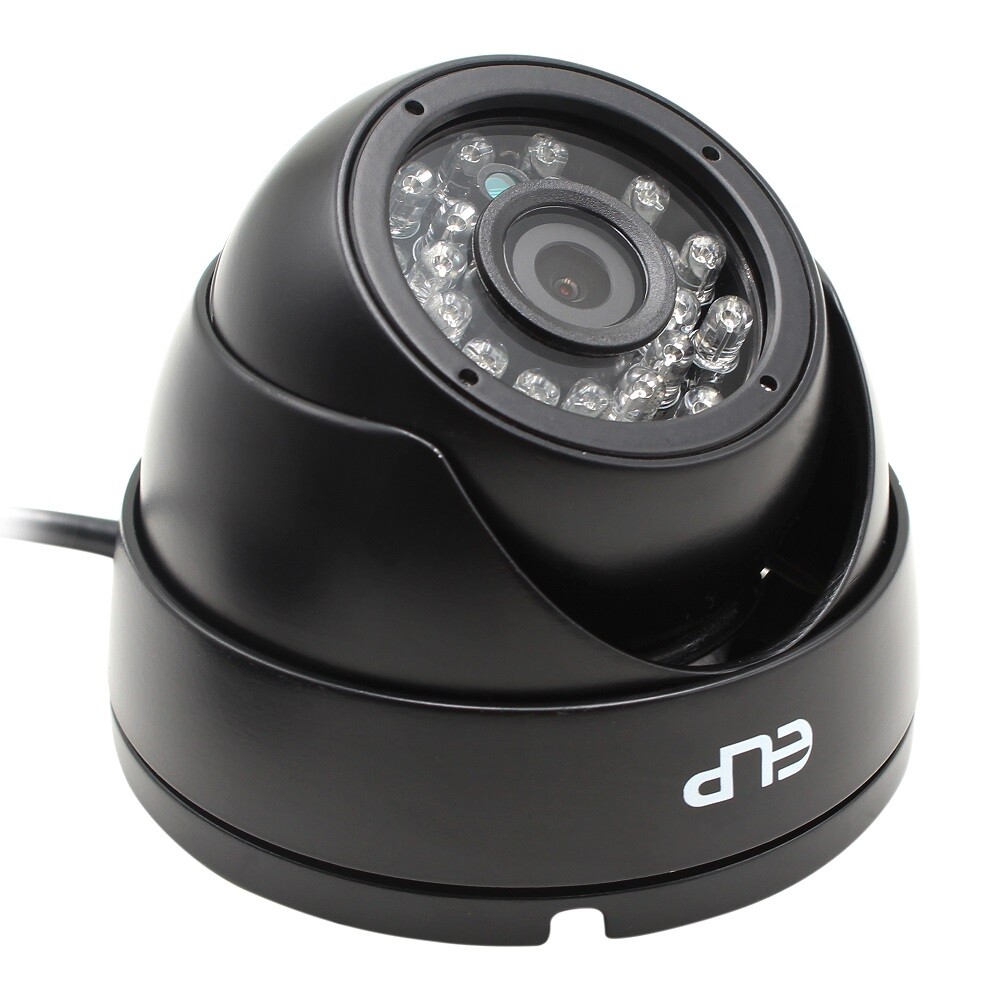

Night vision 720p HD 1.0megapixel microphone IR aluminum high quality dome usb camera
General Description
The HD 720P USB CMOS board camera module is ideal for many applications like security systems,
portable video system, video phones, industrial machine monitoring and toys. It use high quality image sensors made byOmniVision, one of the world leaders in this field of electronics.
Feature:
*720P resolution 1280x720P
*USB interface Camera Module for Monochrome Stereo
*Android&Linux system support
*YUY and MJPEG compression format optional
*CMOS 720P sensor for high quality image and low power consumption
*High speed USB 2.0 interface for high resolution PC camera interface
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 30 fps in 1280X720 resolution
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification:
Optional models
ELP-USB100W05MT-ML36
Sensor
OV9712
Lens size
100W, 1.0megapixel, 1280X720
Max. Resolution
640X480 VGA
Picture format
YUY2
MJPEG
USB Protocal
USB2.0 HS/FS, USB1.1 FS
Support free driver
USB Video Class(UVC)1.1
Auto exposure AEC
Support
Auto white blance AEB
Support
Frame rate
1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 10fps
960 (H) x 720 (V) pixels MJPEG 30fps YUY2 15fps
800 (H) x 600 (V) pixels MJPEG 30fps YUY2 20fps
640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps
Adjustable parameters
Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision
optional, can choose IR board
view angle
30-150 degree optional
voltage
DC 5V
current
150mA
work temperature
DEGREES(-20~70)
Size
32x32mm
Support OS
WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above
Applications:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
