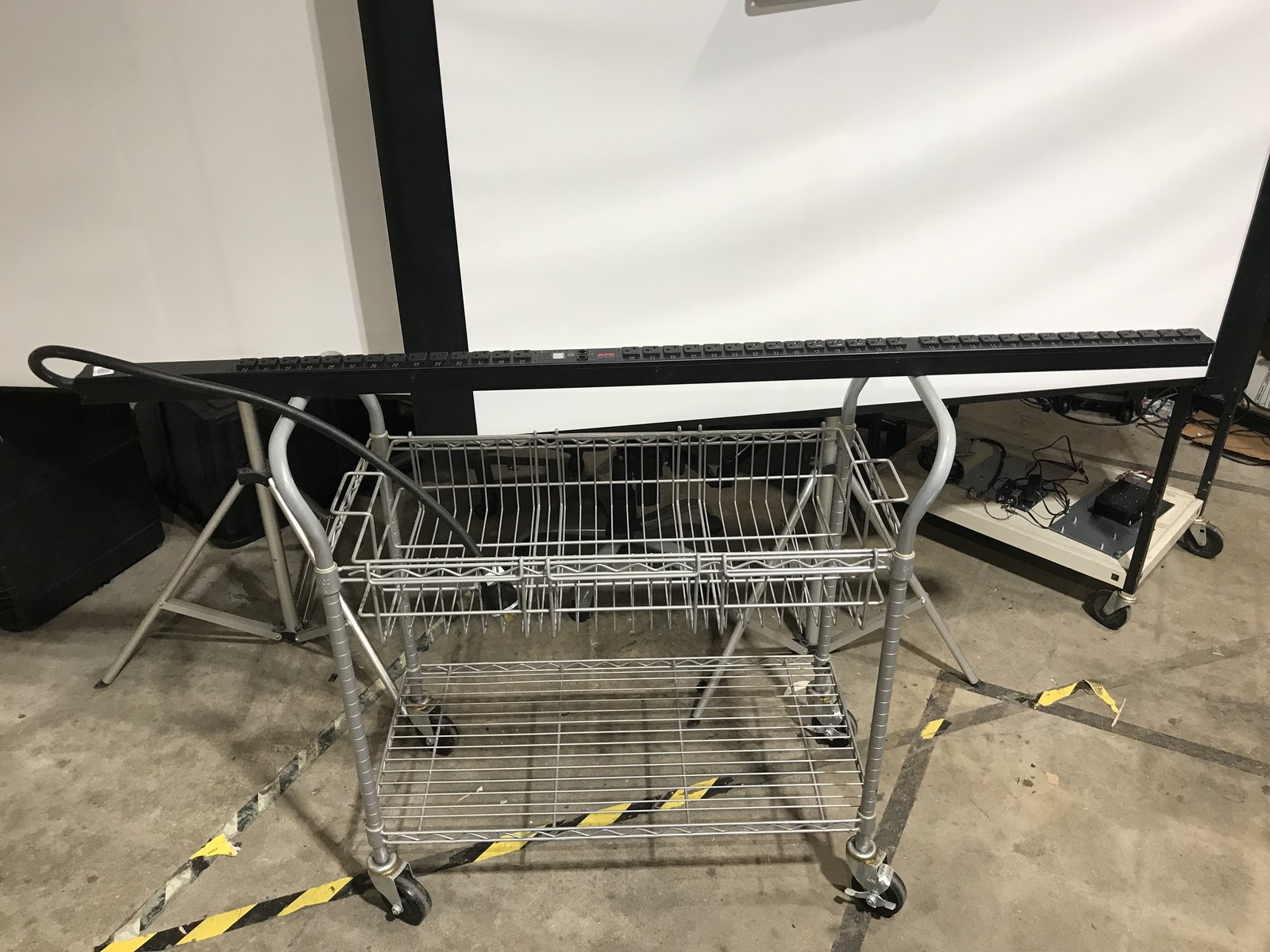

Listing Grid template example Product Photo Description APC AP7862 Metered Rack PDU 5.7kVA 42x 5-20R L21-20P 3-Phase Zero-U APC AP7862 Metered Rack PDU 5.7kVA 42x 5-20R L21-20P 3-Phase Zero-U

The APC AP7862 is a commercial-grade metered rack power distribution unit designed for server racks, network installations, and data center environments. This vertical Zero-U PDU provides 42 NEMA 5-20R outlets and supports high-density rack equipment while providing local and remote power APC / American Power Conversion

Model: AP7862

Type: Metered Rack Power Distribution Unit

Form Factor: Zero-U Vertical Rack PDU

Power Rating: 5.7 kVA

Input Voltage: 120/208 VAC, 3-Phase

Maximum Input Current: 20A

Derated Input Current: 16A

Input Connector: NEMA L21-20P

Output Voltage: 120 VAC

Outlets: 42x NEMA 5-20R

Input Frequency: 50/60 Hz

Power Cord Length: Approximately 3 ft

Height: Approximately 70 in.

Weight: Approximately 12 lb

Key Features

• 42 high-density NEMA 5-20R outlets
• 5.7 kVA power capacity
• Designed for 120/208V three-phase electrical systems
• Built-in digital current/load display
• Remote monitoring capability
• Supports network management through Web, SNMP, Telnet and SSH
• Configurable current alarm thresholds
• Zero-U vertical design preserves usable rack space
• Heavy-duty APC construction for server and data center environments

Important Notes

• Unit has scratches, scuffs, and cosmetic blemishes from previous use
• Requires a NEMA L21-20R 120/208V three-phase power source
• This is not designed to plug into a standard household 120V receptacle
• Please verify electrical compatibility before purchase
• Please review photos carefully for cosmetic condition

Included

• APC AP7862 Metered Rack PDU
• Attached NEMA L21-20P input power cord

Not Included

• Rack mounting hardware / brackets
• Network cable
• User manual
• Any additional accessories

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Mpn
AP7862 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Notes: Unit tested with multimeter and found to be fully operational. Buttons
Passed Shipping
