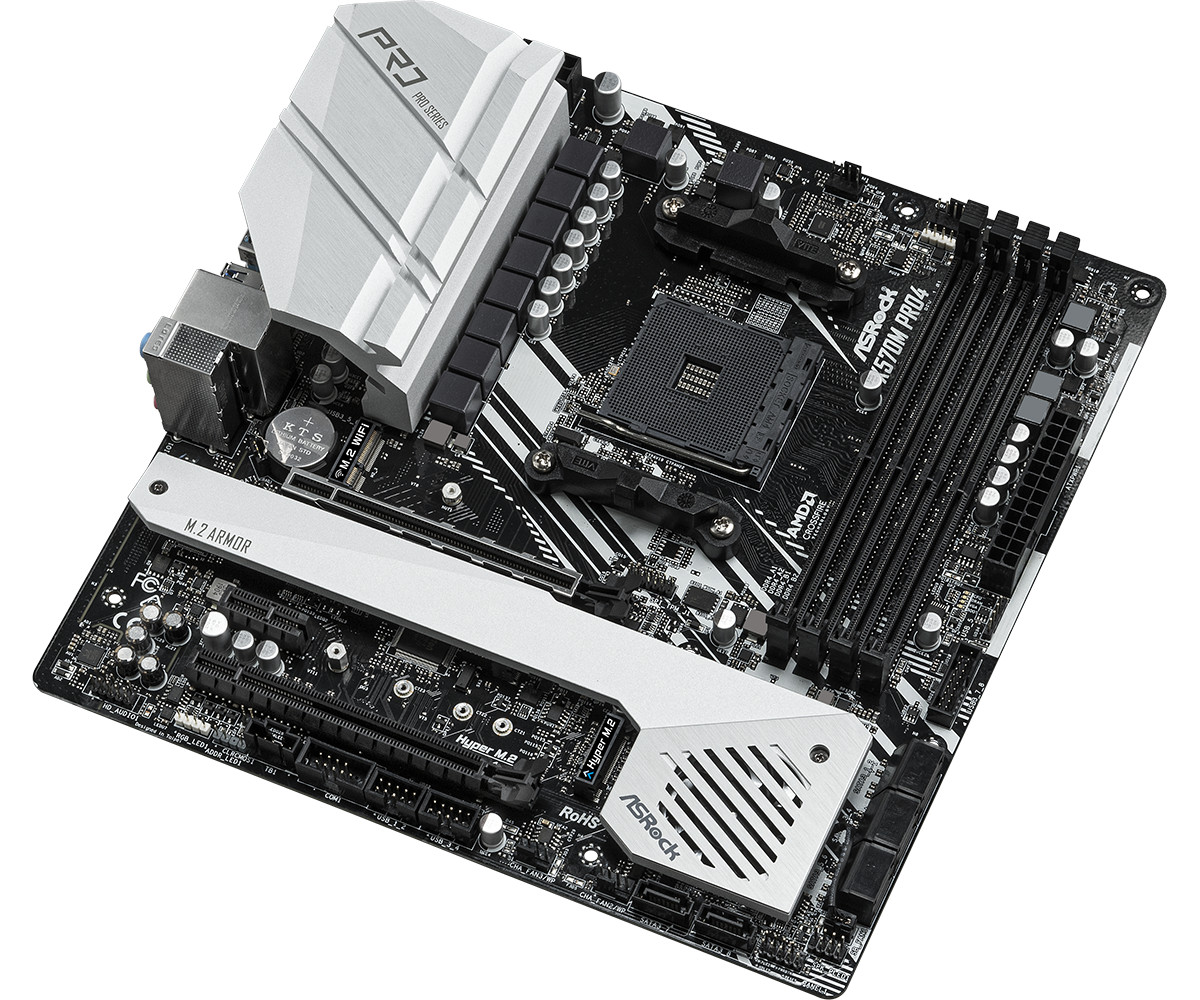

Product Description ASRock X570M Pro4 Specifications

Model: X570M Pro4 Socket: AMD AM4 Chipset: AMD® X570 Chipset

CPU Support

Supports AMD Ryzen™ 5000 / 4000 G-Series / 2nd /3rd Gen Ryzen™ Desktop Processors

Memory

• 4 x DDR4 DIMM slots, Dual Channel
• Max Capacity: 128GB
• Memory Speed: Up to DDR4 4200+(OC) MHz
• Support AMD A-XMP, ECC & non-ECC unbuffered UDIMM

Expansion Slots

• 2 x PCIe 4.0 x16 slots
• 1 x PCIe 4.0 x1 slot
• 1 x M.2 Key E slot (for WiFi module only)
• Multi-GPU: Supports AMD Quad CrossFireX™ & CrossFireX™

Storage

• 2 x Hyper M.2 M-Key slots:
  • 1 x Hyper M.2 PCIe Gen4 x4 & SATA mode
  • 1 x Hyper M.2 PCIe Gen4 x4
• 8 x SATA 6Gb/s ports
• RAID 0/1/10 for SATA & NVMe M.2
• AMD StoreMI Technology

Display Output (Onboard, requires CPU iGPU)

• 1 x HDMI™
• 1 x DisplayPort 1.4

Rear Panel USB

• 1 x USB 3.2 Gen2 10Gbps Type‑C
• 1 x USB 3.2 Gen2 10Gbps Type‑A
• 6 x USB 3.2 Gen1 5Gbps Type‑A

Internal USB headers:

• 1 x USB3.2 Gen1 header (2 ports)
• 2 x USB2.0 headers (4 ports)

Network

• Intel® I211AT Gigabit LAN (1G)

Audio

• Realtek ALC1200 Audio Codec
• 7.1-Channel HD Audio, ELNA Audio Caps
• Supports S/PDIF out

Form Factor & Power

• Form Factor: mATX
• PCB: 2oz thickened copper PCB
• Power Connector: 24-pin ATX main power + 8-pin CPU power
• Power Stage: 10 Power Phase Design
• Cooling: X570 active cooling fan, aluminium heatsink
