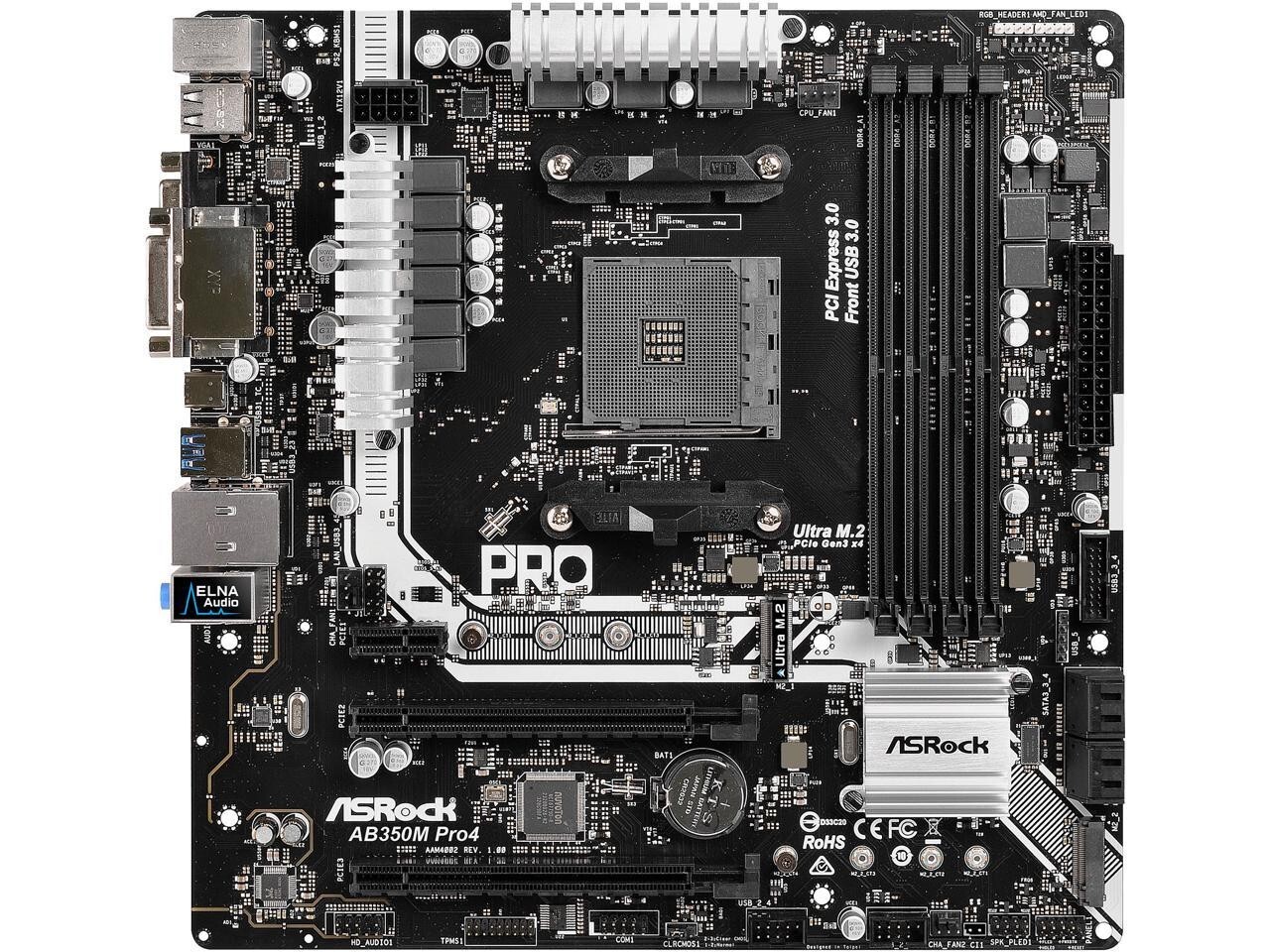

Product Description ASRock AB350M Pro4 Official Specifications

Model: AB350M Pro4 (R1.0 / R2.0) Form Factor: mATX, 24.4 cm × 24.4 cm

CPU

• Socket: AM4
• Chipset: AMD® B350
• Supported CPU: 1st /2nd Gen AMD Ryzen™, A-Series Bristol Ridge APU（更新 BIOS 可支持部分 3 代锐龙）
• Power Connector: 24-pin ATX main power, 8-pin ATX 12V CPU power
• VRM: 9 Phase Digi Power design, supports CPU overclock

Memory

• 4 × DDR4 DIMM slots, Dual Channel
• Max Capacity: 64GB (16GB per DIMM)
• Memory Type: Non-ECC, Unbuffered DDR4; supports ECC UDIMM in non-ECC mode
• Memory Speed: DDR4 up to 3200+ MHz (OC, A-XMP)
• Support AMD A-XMP memory overclock

Expansion Slots

• 1 × PCIe 3.0 x16 (GPU slot)
• 1 × PCIe 2.0 x16 (runs at x4 bandwidth)
• 1 × PCIe 2.0 x1
• Multi-GPU: AMD Quad CrossFireX™ supported

Storage

• 2 × M.2 M-key slots:
  • M.2_1 Ultra M.2: PCIe 3.0 x4 (2242/2260/2280)
  • M.2_2: SATA3 only M.2
• 4 × SATA III 6Gb/s ports
• RAID: RAID 0 / 1 /10

Rear I/O Panel

• 1 × USB3.1 Gen1 Type-C
• 4 × USB3.1 Gen1 Type-A
• 2 × USB2.0 Type-A
• 1 × PS/2 KB/Mouse combo port
• 1 × VGA (D-Sub)
• 1 × DVI-D
• 1 × HDMI
• 1 × Realtek® 1G Ethernet

Note: No onboard Wi‑Fi / Bluetooth

Internal Headers

• 1 × Front USB3.1 Gen1 Type-C header
• 2 × USB3.1 Gen1 front headers
• 2 × USB2.0 front headers
• Fan headers: 1×CPU Fan, 1×CPU OPT, 3×Chassis Fan
• Addressable RGB header & RGB header
• Onboard TPM header
• Chassis intrusion header

Audio

• Realtek ALC897 HD Audio Codec
• 7.1 Channel HD Audio, ELNA audiophile capacitors, isolated audio PCB

Special Features

• ASRock Super Alloy
• Polychrome SYNC RGB lighting
• Full surge & ESD protection
• UEFI BIOS
• Solid capacitor design
• Triple display output support (HDMI+DVI+VGA)

Supported OS

Windows®10 64-bit, Windows®11 64-bit
