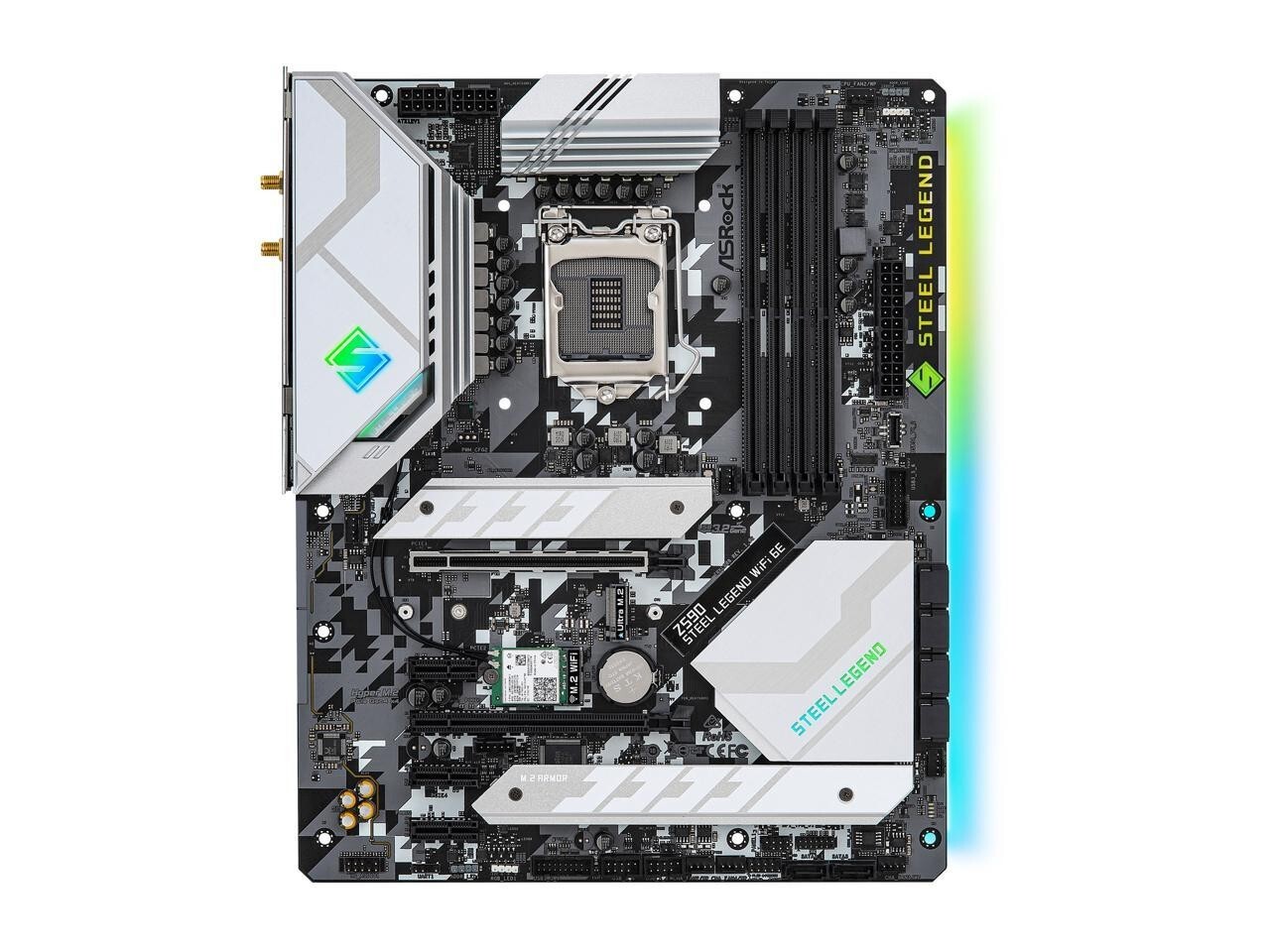

Product Description ASRock Z590 Steel Legend WiFi 6E Official Specifications

Model: Z590 Steel Legend WiFi 6E Form Factor: ATX, 30.5 cm × 24.4 cm

CPU

• Socket: LGA 1200
• Chipset: Intel® Z590
• Supported CPU: 10th /11th Gen Intel® Core™, Pentium® Gold, Celeron® Processors (CPU overclock supported)
• Power Connector: 24-pin ATX main power, 8-pin + 4-pin ATX 12V CPU power
• VRM: 14 Phase Dr.MOS power design

Memory

• 4 × DDR4 DIMM slots, Dual Channel
• Max Capacity: 128GB (32GB per DIMM)
• Memory Type: Non-ECC, Unbuffered DDR4; supports ECC UDIMM running in non-ECC mode
• Memory Speed: DDR4 up to 4800+ MHz (OC, XMP 2.0)
• Support Intel XMP 2.0

Expansion Slots

• 1 × PCIe 4.0 x16 (GPU slot, 11th Gen CPU enable PCIe4.0; 10th Gen runs at PCIe3.0)
• 1 × PCIe 3.0 x16 (Chipset lane, x4 bandwidth)
• 3 × PCIe 3.0 x1
• Multi-GPU: AMD CrossFire™ supported
• Built-in patented GPU holder to prevent graphics card sagging

Storage

• 3 × M.2 M-key slots:
  • M.2_1 Hyper M.2: PCIe 4.0 x4 (64Gbps, 2280, Intel Optane ready)
  • M.2_2 / M.2_3 Ultra M.2: PCIe3.0 x4 / SATA dual mode
• 6 × SATA III 6Gb/s ports
• RAID: RAID 0 / 1 / 5 / 10
• M.2 heatsink included

Rear I/O Panel

• 1 × USB3.2 Gen2 Type-C (10Gbps)
• 1 × USB3.2 Gen2 Type-A (10Gbps)
• 2 × USB3.2 Gen1 Type-A
• 2 × USB2.0 Type-A
• 1 × HDMI
• 1 × DisplayPort
• 1 × Dragon RTL8125BG 2.5G Ethernet
• Intel Wi‑Fi 6E + Bluetooth 5.3
• 3 × Audio jacks + Optical S/PDIF out

Note: Onboard Wi‑Fi 6E & Bluetooth 5.3 included

Internal Headers

• 1 × Front USB3.2 Gen2x2 Type-C header (20Gbps)
• 2 × USB3.2 Gen1 front headers
• 2 × USB2.0 front headers
• Fan headers: 1×CPU Fan, 1×CPU OPT, 3×Chassis Fan
• Addressable RGB header & RGB header
• Onboard TPM 2.0 header
• Chassis intrusion header

Audio

• Realtek ALC897 HD Audio Codec
• 7.1 Channel HD Audio, Nahimic Audio, isolated audio PCB, premium Japanese capacitors

Special Features

• Steel Legend armor style, heavy VRM heatsink
• 2oz thickened copper PCB
• Polychrome SYNC RGB lighting
• ASRock patented GPU support bracket (anti-sag for graphics card)
• Full spike & ESD protection
• UEFI Click BIOS

Supported OS

Windows®10 64-bit, Windows®11 64-bit
