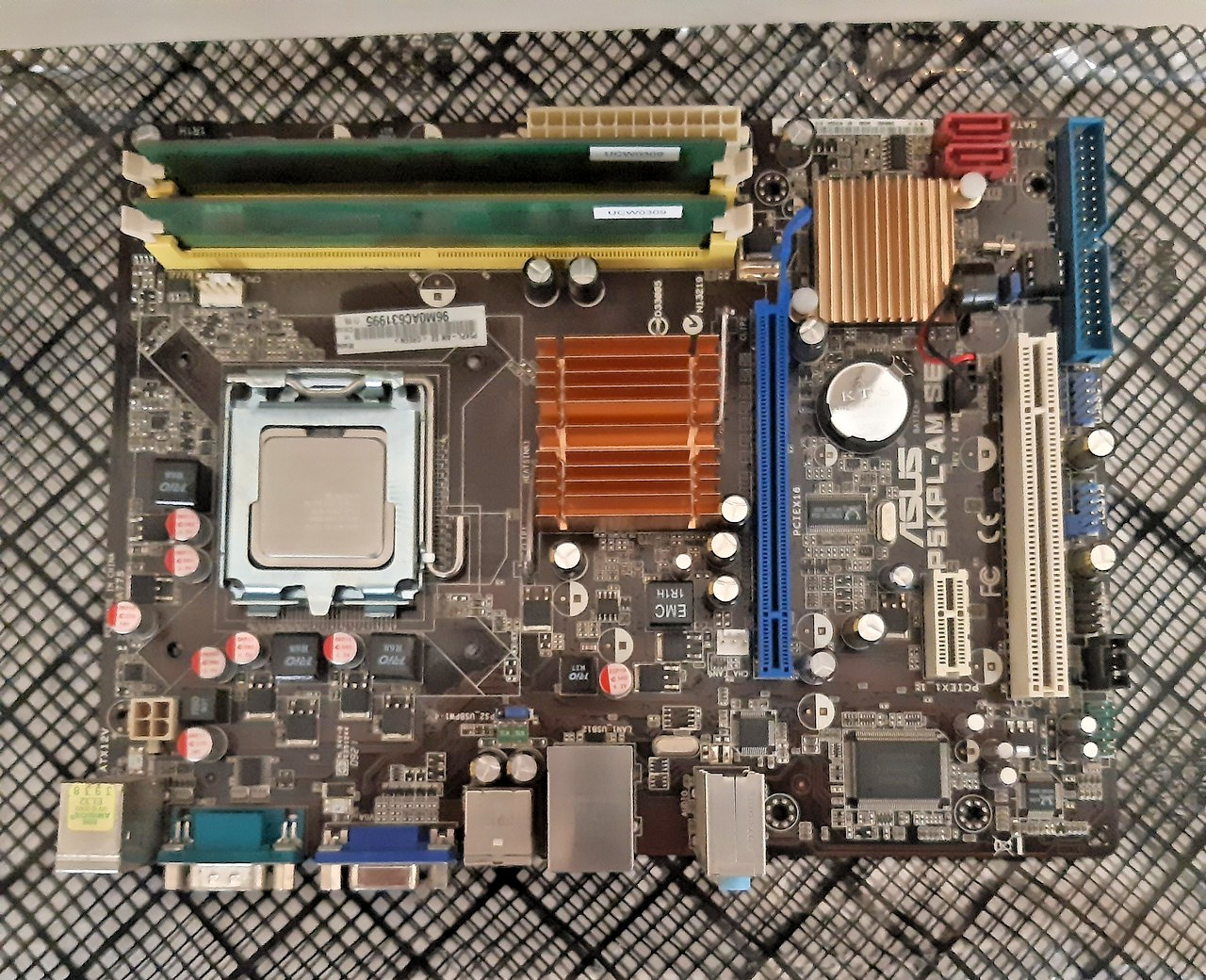

VINTAGE ASUS P5KPL-AM SE,MATX.SKT775CPU AND MEM INCL.SATA, IDE, UDIMM, PCI, AGP.PCIEX1PS2/ COM/ VGA/ USB/ LAN/ SND
TRUE HYBRID BOARD SUPPORTS BOTH IDE AND SATAHAS NORTHBRIDGE AND SOUTHBRIDGE AND WILL RUN WINDOWS 7
ChipsetIntel G31 (Bearlake-G)Chipset partsIntel 82G31 (GMCH)Intel 82801GB (ICH7)Audio chipsRealtek ALC882 (High Definition Audio)Video chipsIntel GMA 3100 (Graphics Media Accelerator 3100)Network chipsRealtek RTL8102/RTL8102E/RTL8102ELSuper I/O chipsWinbond W83627DHG
CPU socketSocket T (LGA775)Core 2 Quad (Yorkfield)Pentium 4 (Prescott)Core 2 Duo (Conroe/Allendale)Core 2 Duo (Wolfdale)Core 2 Quad (Kentsfield)Celeron D (Prescott-256)Pentium Dual-Core (Allendale)Celeron Dual-Core (Allendale)Celeron (Conroe-L)Celeron Dual-Core (Wolfdale)PENTIUM DUAL-CORE (Wolfdale) E6700 3.2Ghz INCLUDED
FSB factorMicroATX (max 244 x 244 mm)Dimensions244mm x 183mm
CacheNone/Integrated in the CPU
Max RAM size4GBRAM typeDDR2 UDIMM256/512/1GB/2GB UNBUFFERED ECC/NON-ECC DDR2 DIMMS2 x 1Gb 800 PC2 6400U INCLUDEDPSU connector12V P4 Connector (4-pin P4)ATX 2.x (24-pin ATX)I/O ports1x 3.5mm Audio Combo1x IDE interface1x PS/2 keyboard1x PS/2 mouse1x Parallel1x RJ-45 LAN1x S/PDIF2x SATA II1x Serial4x USB 2.01x VGA
Expansion slots1x 32-bit PCI1x PCIe x11x PCIe x16
Notes:The chipset is overclocked when running with 1600MHz FSB, while it is underclocked when running with 533MHz FSB.
BUTTON BATTERY
BACK PLATE INCLUDEDNO CPU COOLING INCLUDED
WHOLESALE PKG ONLY
