Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

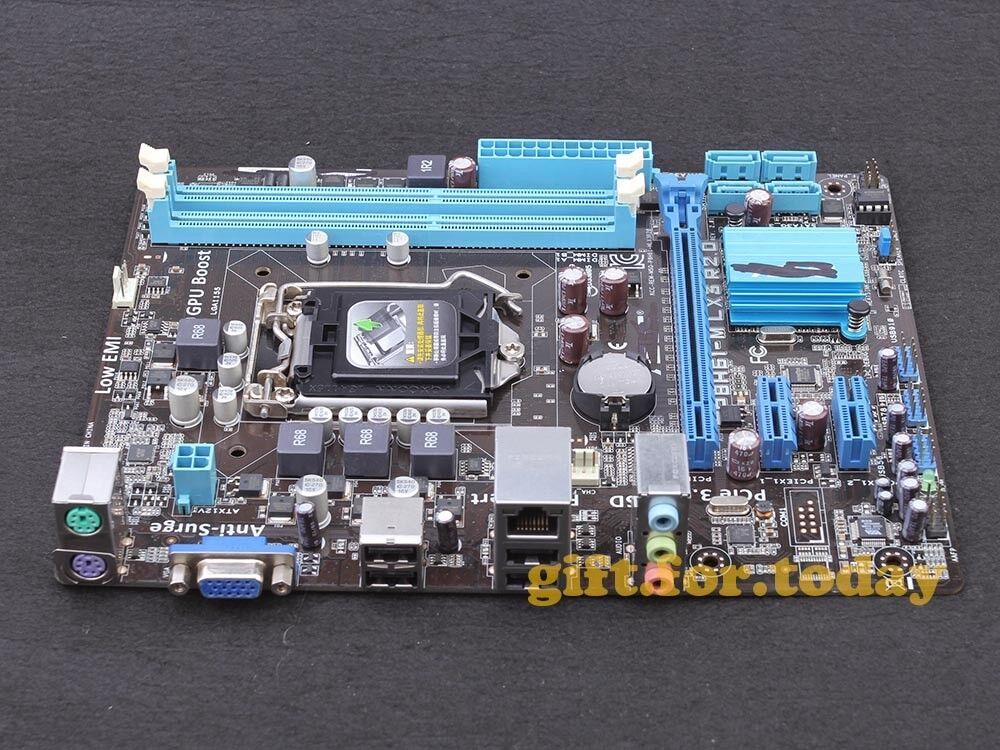

Motherboard Introduction

CPU

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to ASUS official website for CPU support list

Chipset

Intel® H61(B3)

Memory

2 x DIMM, Max. 16GB, DDR3 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

Graphic

Integrated Graphics Processor
VGA output support : RGB port
- Supports RGB with max. resolution 2048 x 1536 at 75 Hz
Maximum shared memory of 1748 MB

Expansion Slots

1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1

Storage

Intel® H61(B3) chipset :
4 x SATA 3Gb/s port(s), blue

LAN

Realtek® 8111F, 1 x Gigabit LAN Controller(s)

Audio

VIA VT1708S 6-Channel High Definition Audio CODEC
- Supports : Multi-streaming

USB Ports

Built-in Controller :
10 x USB 2.0 port(s) (6 at back panel, , 4 at mid-board)

Special Features

ASUS Exclusive Features :
- AI Suite II
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
ASUS Quiet Thermal Solution :
- ASUS Fan Xpert
- ASUS Q-Fan 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2

Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports

3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x Chassis Fan connector(s) (4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)

BIOS

64Mb Flash ROM, EFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready
ASUS UEFI (Unified Extensible Firmware Interface) BIOS

Manageability

WOL, PXE, PME Wake Up

Form Factor

Micro ATX Form Factor
10.24 inch x 10.63 inch ( cm x cm )
