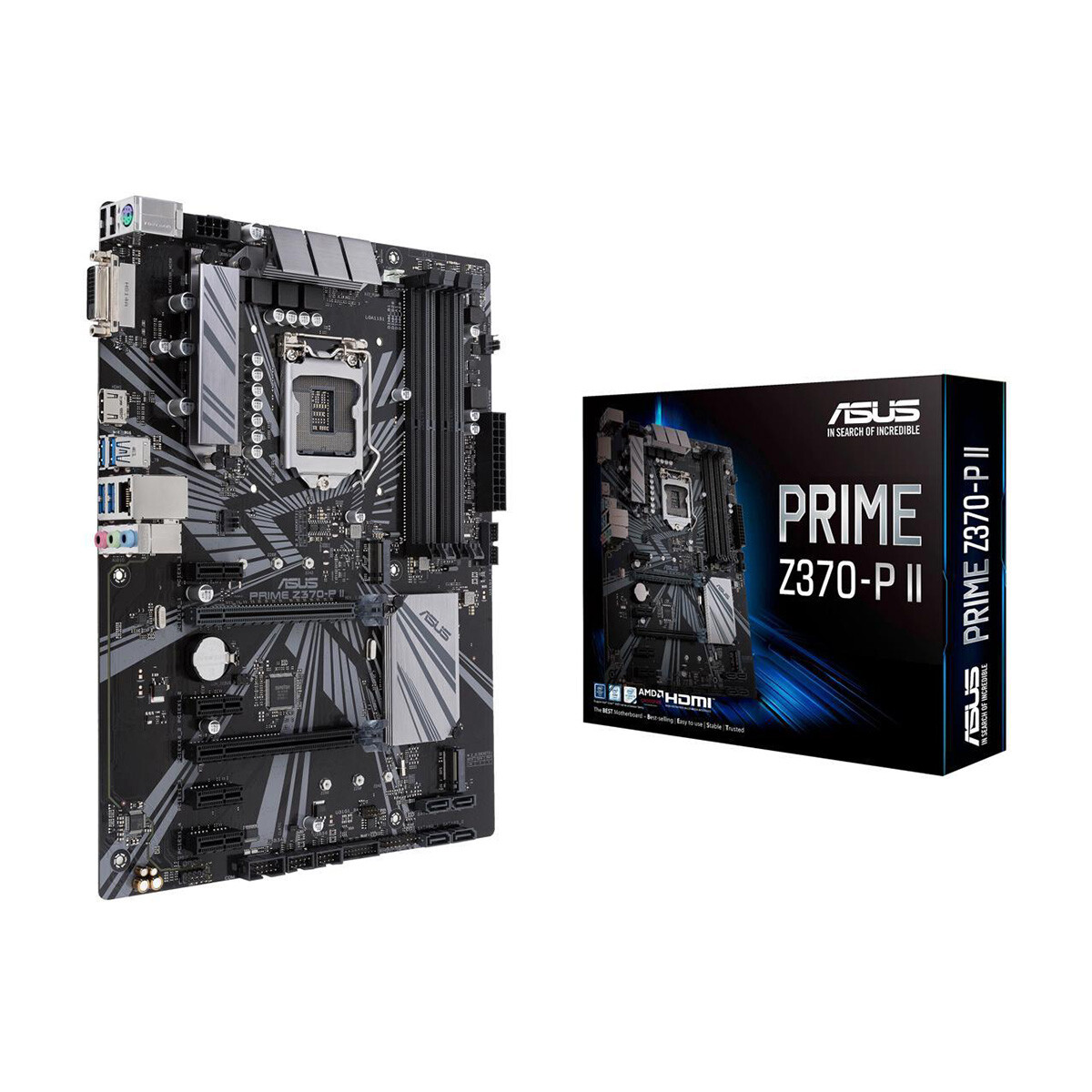

ModelBrandASUSModelPRIME Z370-P IISupported CPUCPU Socket TypeLGA 1151 (300 Series)CPU TypeIntel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
* Not backward compatible with older generation of LGA 1151 CPUs
** Refer to www.asus.com for Intel CPU support listSupported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0*
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.ChipsetsChipsetIntel Z370Onboard VideoOnboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support
Multi-VGA output support: HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB (for iGPU exclusively)MemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 4000(O.C.)*/ 3866(O.C.)*/ 3733(O.C.)*/ 3600(O.C.)*/ 3466(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666 / 2400 / 2133
* The maximum memory frequency supported varies by processor
** Refer to www.asus.com for the Memory QVL (Qualified Vendors List)Maximum Memory Supported64GBChannel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x161 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
* PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.**
** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.PCI Express x14 x PCI Express 3.0/2.0 x1 slotsStorage DevicesSATA 6Gb/s4 x SATA 6.0Gb/s ports (gray)M.22 x M.2 Socket 3*, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
* When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.Intel Optane ReadyYesSATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek ALC887Audio Channels8 Channels
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.Onboard LANLAN ChipsetRealtek RTL8111HMax LAN Speed10/100/1000MbpsRear Panel PortsPS/21 x PS/2 keyboard/mouse portVideo Ports1 x DVI-DHDMI1 x HDMIRJ451 x RJ45USB 3.14 x USB 3.1 Gen 1 (blue) Type-AUSB 1.1/2.02 x USB 2.0Audio Ports3 PortsInternal I/O ConnectorsOnboard USB2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)Other Connectors1 x COM port(s) connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
2 x Chassis Fan connector(s) (2 x 4-pin)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x AIO PUMP HeaderPhysical SpecForm FactorATXDimensions (W x L)12.0" x 9.1"Power Pin1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connectorFeaturesFeaturesMulti-GPU Support:
Supports AMD CrossFireX Technology
Special Features:
ASUS 5X Protection III:
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS OptiMem:
- Optimem (Improved DDR4 stability)
ASUS EPU:
- EPU
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
BIOS:
128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.1, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability:
WfM 2.0, DMI 3.1, WOL by PME, PXE
Support Disc:
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System:
