Active/Passive SMA GPS Antenna - Through Hole Mount - 6 ft Coax📜 Product Overview

's low-profile active GPS antenna is designed for use in fleet management, automatic vehicle location (AVL), mobile robot tracking, mobile video, positioning, timing and recreational navigation applications that require peak gain in a compact, vandal resistant form factor. It is ideally suited for positioning and timing systems in vehicular GPS-enabled modems/routers and dedicated GPS receivers. The external GPS antenna can be used with passive or active GPS equipment via its integrated 28 dB LNA and noise rejection filter.

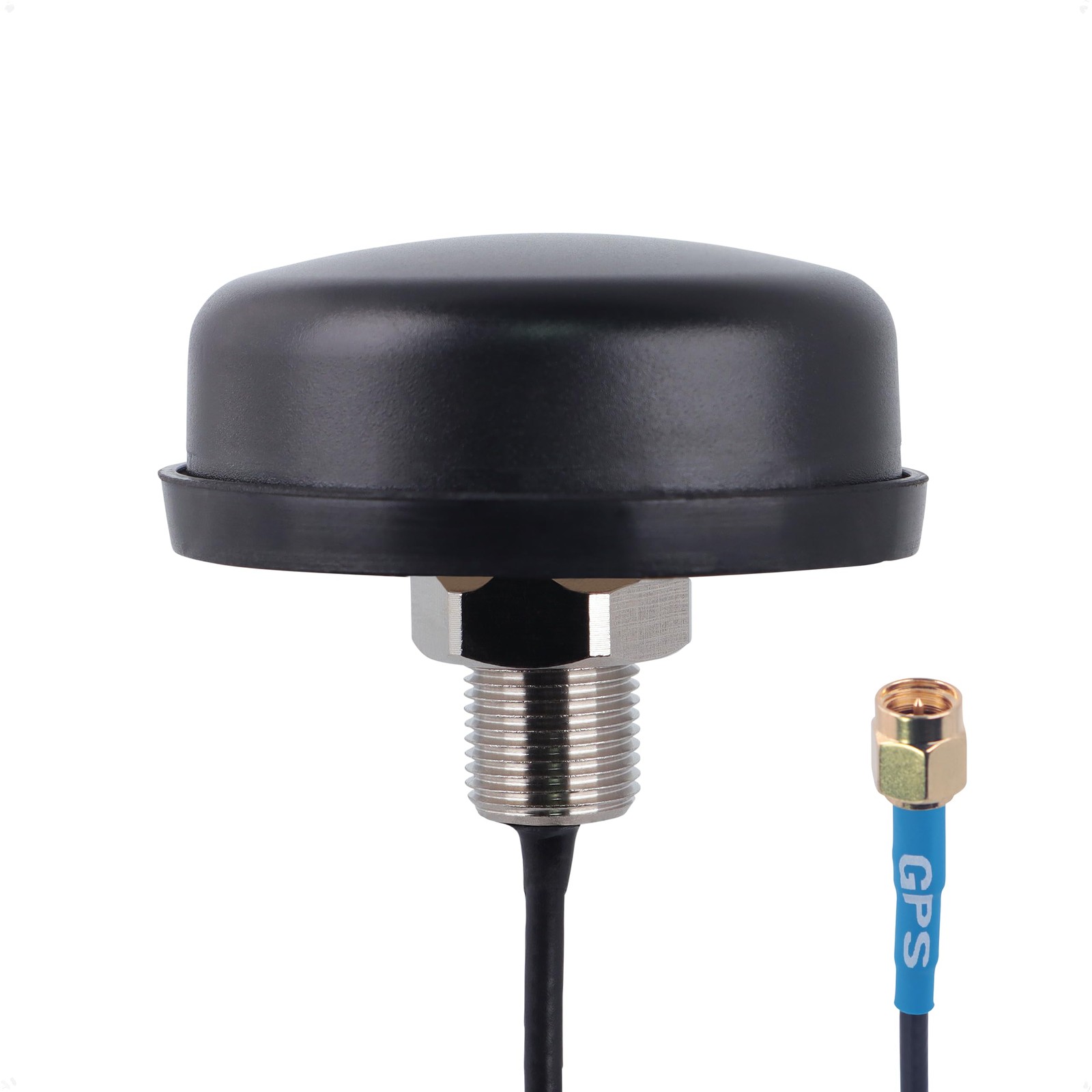

The GPS active antenna permanently mounts via a 1/2 in (12 mm) hole with internal nut and includes 6 ft of low-loss RG174 coax fed through center mounting post pre-terminated with a right-angle standard SMA Male connector. A rubber boot creates a water-tight seal. The short GPS antenna is not removable from outside and there is no exposed coax cable once installed.

Electrical Specifications
• Center Frequency: 1575.42 MHz
• Passive Gain: 2dBic
• LNA Gain: 28 ±4.5dB Typical
• Polarization: RHCP
• LNA Supply Voltage: 3-5.0 VDC
• Current Consumption: 13~22 mA
• V.S.W.R:
