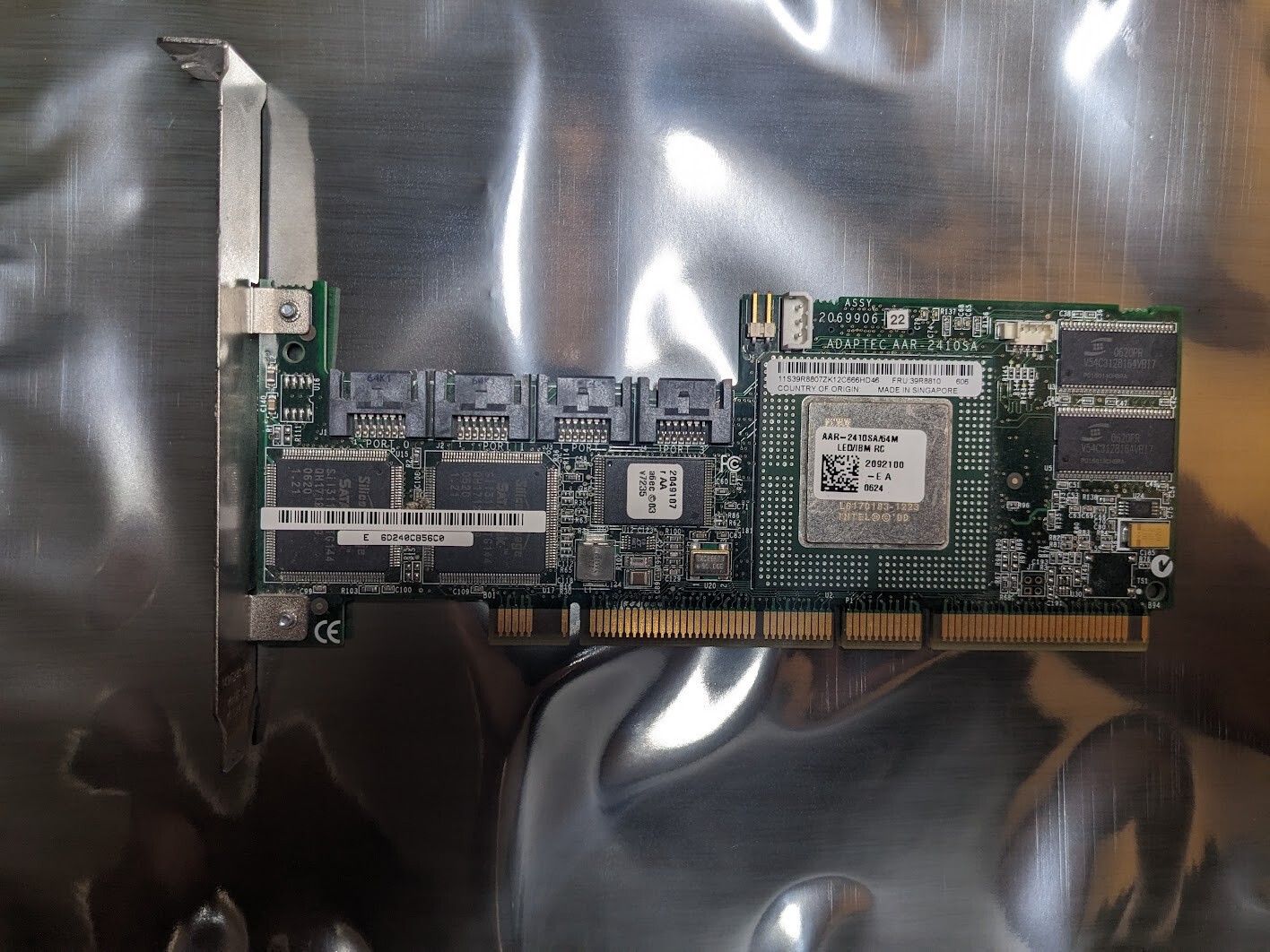

Adaptec AAR-2410SA

Adaptec Serial ATA RAID 2410SAThe Adaptec Serial ATA RAID 2410SA is a 4-port I/O processor-based native SATA RAID controller ideal for high-end workstations and entry-level servers. Advanced features include Optimized Disk Utilization, Online Capacity Expansion, and RAID Level Migration. Adaptec Storage Manager provides centralized management for Adaptec host-based RAID controllers. Enclosure management support. RAID levels 0, 1, 5, 10, and JBOD.
Optimized Disk Utilization

RAID Level Migration

Online capacity expansion

Background initialization (for immediate RAID availability)

Enclosure Management ready

Hot-swap disk drive support for easy replacement

Hot-spare disk support with automatic rebuild

Supports bootable arrays

Customer NeedsIdeal for workstations as well as entry-level servers requiring advanced RAID features and supporting up to four Serial ATA drivesSystem EnvironmentDesktopCapacity

Max. array size: 2TB
Max. physical disk drive size: 1TB

Cache Memory64 MByte (onboard)RAID Levels0, 1, 5, 10, JBODKey RAID Features

Optimized disk utilization

Online RAID Level Migration

Online capacity expansion

Immediate RAID availability (background initialization)

S.M.A.R.T. support

Number of devicesUp to 4 Serial ATA drives

Bus System Interface Type

64-bit/66MHz PCIInternal ConnectorsFour Serial ATA portsData Transfer RateUp to 1.5 Gbits/secSystem RequirementsAvailable PCI slot meeting PCI 2.2 specification

Board Dimensions

Low-profile card: 2.5 in. H x 6.6 in. L 6.4 cm H x 16.8 cm L

Power Consumption

1.6 amps @ +5V

0° to 55° C

FCC, UL, C-tick, CE, VCC
