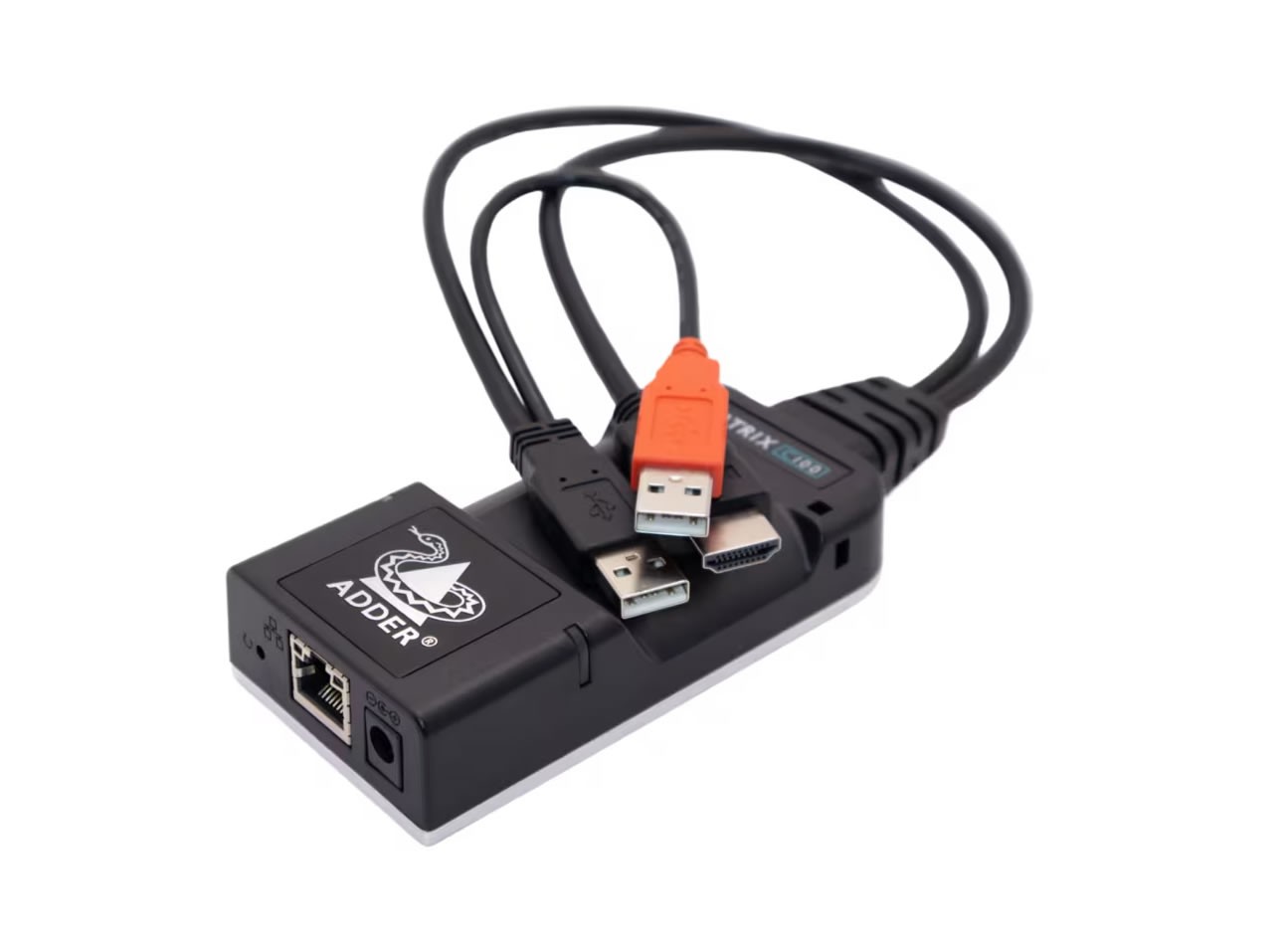

for All Products Adder AVM-C110-CAM-HM ZeroU HDMI Computer Access Module / USB Powered / 2560x1600@60Hz / USB 2.0 Manufacturer:Adder SKU:AVM-C110-CAM-HM Condition:New Warranty:2 Years
The ADDERView Matrix C110 is a ZeroU HDMI Computer Access Module designed to connect a single computer to an ADDERView KVM matrix - enabling extension of video, audio and USB over a single network cable. It provides pixel-accurate HDMI video at high resolutions while occupying no rack space in the server room. The CAM is USB powered and supports optional external power for redundancy.
Key features include spatially-lossless video encoding with 1:1 pixel mapping to preserve color accuracy and eliminate compression artifacts. The module supports up to 2560 x 1600 at 60Hz and 8 bpc color depth, and handles dithered or noisy video sources used by some platforms. USB 2.0 True Emulation supports human interface devices and mass storage while allowing device-type control.
On the audio side the device provides digital two-channel linear PCM and delivers USB stereo audio bi-directionally or embedded stereo audio uni-directionally. EDID management is available to either pass the true monitor characteristics back to the host or present a fixed EDID to the computer. Network bandwidth is 1GbE and the recommended cabling is CAT5e or above with a maximum cable length of 100m / 328ft.
Connectivity includes one HDMI video input, two USB A ports with True Emulation, a single RJ45 link port and USB audio support via one USB input. The CAM supports all known operating systems and does not require drivers or software installation - plug and play operation is standard. System limitations include no support for HDCP or CEC control.
Typical applications include control rooms, command centres and broadcast facilities where remote access to single-workstation systems is required. The device integrates with matrixed KVM infrastructures to centralize access while maintaining color fidelity and input device responsiveness. Its low power draw and USB-power capability reduce cabling and simplify deployments where local power outlets are limited.
Installation is straightforward due to the ZeroU form factor and fanless design, reducing maintenance and airflow concerns in equipment racks. The unit is constructed from ABS and aluminum for a lightweight but durable build and is specified for operation from 0 to 50 C with non-condensing humidity up to 90%. Regulatory approvals include CE, FCC, cULus and other regional standards to support professional AV Information (For 1 Screen)Maximum Resolution2560 x 1600Frame Rate60Colour Depth8 bpcComputer ConnectionsUSB A2x USB 2.0, True Emulation, Full Speed, Low Speed, High SpeedHDMI®1Link Ports8p8c (RJ45)1xAudio ConnectionsAudio TypeDigitalChannels2Audio In Ports1x USBAudio DirectionBi-directionalSize (bit)16Speed (kHz)48Additional InformationDigital Audio 2 channel linear PCMCable RequirementsRecommended Cable TypeCAT5e and aboveMaximum Cable Length100m / 328ftNetwork SupportBandwidth1GbE10/100 SupportNoEnvironmentalOperating Temperature0 to 50 C / 32 to 122 FStorage Temperature0 to 50 C / 32 to 122 FOperating Humidity (%)10% - 90% (non-condensing)Storage Humidity (%)10% - 90% (non-condensing)Altitude2000m / 6562ftMean Time Between Failure (MTBF)836,000MTBF StandardTelcordia SR332 Issue 4 March 2016 Calculated at 55CTemperature RegulationFanlessPower SourceUSB powered2x5V1xPower Additional InformationUSB power: 2x USB2.0 (2x 500mA at 5V) 5W, External power: 5VDC 1A (LPS)Power ConsumptionMaximum Power (Watts)5Typical Power (Watts)3Physical DesignConstruction MaterialABS and aluminum constructionWidth55mm / 2.2inHeight25mm / 1inDepth110mm / 4.30inFlying Lead Length300mmWeight0.2kg / 0.4lbCompatibilityOS CompatibilityAll known operating systemsSystem RequirementsDoes not support HDCP or CEC controlApprovals and StandardsApprovalsCE, cULus - E476334, FCC, ICES, KC, RCM, UKCAStandardsANSI 63.4, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003OtherCal Prop 65, China ROHS, EU REACH, UK REACHPacking BoxLength292mm / 11.5inWidth245mm / 9.6inDepth55mm / 2.2inWeight0.5kg / 1.1lbWhat"s in the Box?1x ADDERView Matrix C110 Computer Access Module (HDMI), 1x Quick start guide OUR PERKS Great Prices and
