Guce Adjustable DC Regulated Power Supply for Laptop and Mobile Phone Repair Switching Power Supplies

Model Specifications

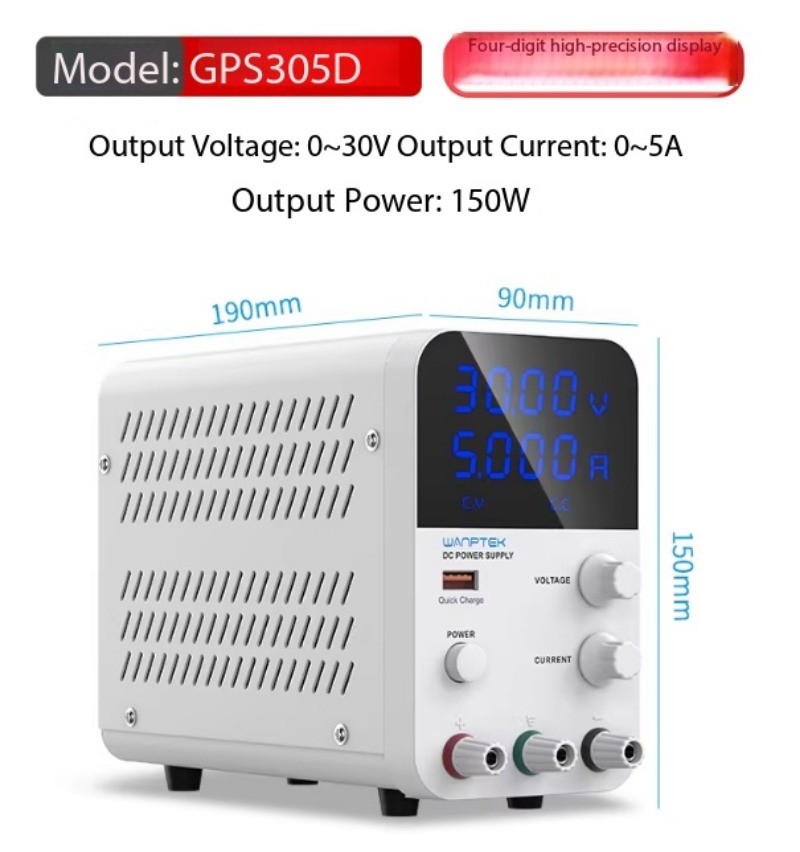

GPS305D:

Output Voltage: 0–30 V

Output Current: 0–5 A

Output Power: 150 W

GPS605D:

Output Voltage: 0–60 V

Output Current: 0–5 A

Output Power: 300 W

GPS3010D:

Output Voltage: 0–30 V

Output Current: 0–10A

Output Power: 300W

GPS1602D:

Output Voltage: 0–160V

Output Current: 0–2A

Output Power: 320W

GPS1203D:

Output Voltage: 0–120V

Output Current: 0–3A

Output Power: 360W

General Specifications

Voltage-Regulated Mode (CV): Continuously adjustable from 0 to rated voltage

Current-Regulated Mode (CC): Continuously adjustable from 0 to rated current

Operating Temperature: -10°C to 40°C

Input Power: AC 230V/115V ±10%; 50Hz/60Hz

Ripple Voltage: VPP ≤ 1%

Overall Efficiency: ≥89%

Digital Display Accuracy: 4-digit blue LED display

Display Resolution: 0.01V / 0.001A

Display Accuracy: ±0.5% + 1 digit

Product Dimensions: 90 (W) mm × 150 (H) mm × 190 (L) mm

Product Weight: Unit only: 1.13 kg

Included Accessories: Power cord × 1, User manual × 1, Warranty card and certificate of conformity × 1, Output cable × 1
