Alien ALN-9840-SR Squiggle Inlay (Higgs™-EC) Dry Slit Roll SpoolOf 20,000 – NEW
Manufacturer: Alien Technology LLC
Model: ALN-9840-SR
Description: Squiggle Inlay (Higgs™-EC) Dry Slit Roll Spool Of 20,000
Squiggle inlays are now enhancedwith the reliability, robustness and readability of the new Higgs-EC IC alongwith all the capabilities and features of the Higgs-4 version. The SentinelMemory within the Higgs-EC is a unique error-correcting architecture that fixessingle bit errors and detects rare dual bit issues. The Higgs-EC supports over200,000 write cycle capability, two times that of other devices on the markettoday. Lastly, Squiggle tags with Higgs-EC have best-in-class read and writelarger sensitivity that allows larger read & write distances to be achievedand more rapid reading and encoding.
Features:
Designed to meet EPCglobal Gen2(V1.2.0) and ISO/IEC 18000-6C
Alien Sentinel™ memory protectionfor best in industry data quality
Worldwide operation in the RFIDUHF bands (860-960 MHz)
512-Bits of NVRAM Memory
• Up to 128-EPC Bits(nominally 96 bits)
• 128 User Bits
• 80 Bit Unique TID
• 32 Bit Access and 32bit Kill Passwords
Pre-Programmed with a unique,unalterable 64- bit serial number
User Memory can be BlockPerma-Locked as well as read password protected in 32 Bit Blocks
Low power operation for both readand program
QuickWrite™ / BlastWrite™-High-speed chip & mass programming
Dynamic Authentication™ -anti-cloning/anti-counterfeit technology
Exceptional operating range, up to13m with appropriate antenna.
Available in high-yield, highcapacity dry/wet inlay rolls
Inlay general dimension:
Clearinlay thickness: +-10%
Over antenna:0.08mm
Overchip: 0.28mm
Specification:
Dry Inlay
Antenna Width
3.732” [94.8mm]
Antenna Length
0.319” [8.1mm]
Web Width (-R)
4.252” [108.0mm]
Web Width (-SR)
3.874” [98.4mm]
Web Pitch
0.625” [15.875mm]
Core Width (-R)
4.252” [108.0mm]
Core Width (-SR)
3.874” [98.4mm]
Core ID
6” [152.4mm]* Shipped with 6” to 3” plastic core adapter
Core Material
Fiberboard
Inlays per Roll
20,000 Nominal
Maximum Roll OD
< 12” [304.8mm]
Roll Labeling Data
Roll #, Quantity
RFID
Protocols Supported
ISO/IEC 18000-6C EPCglobal Class 1 Gen 2
Integrated Circuit
Alien Higgs™-EC
Operating Frequency
860–960 MHz
EPC Size
128 Bits
User Memory
128 Bits
TID
32 Bits
Unique TID
80 Bits
Access Password
32 Bits
Kill Password
32 Bits
Shelf Life
Dry Inlays: 5 years at +77°F [+25°C] @ 40% RH

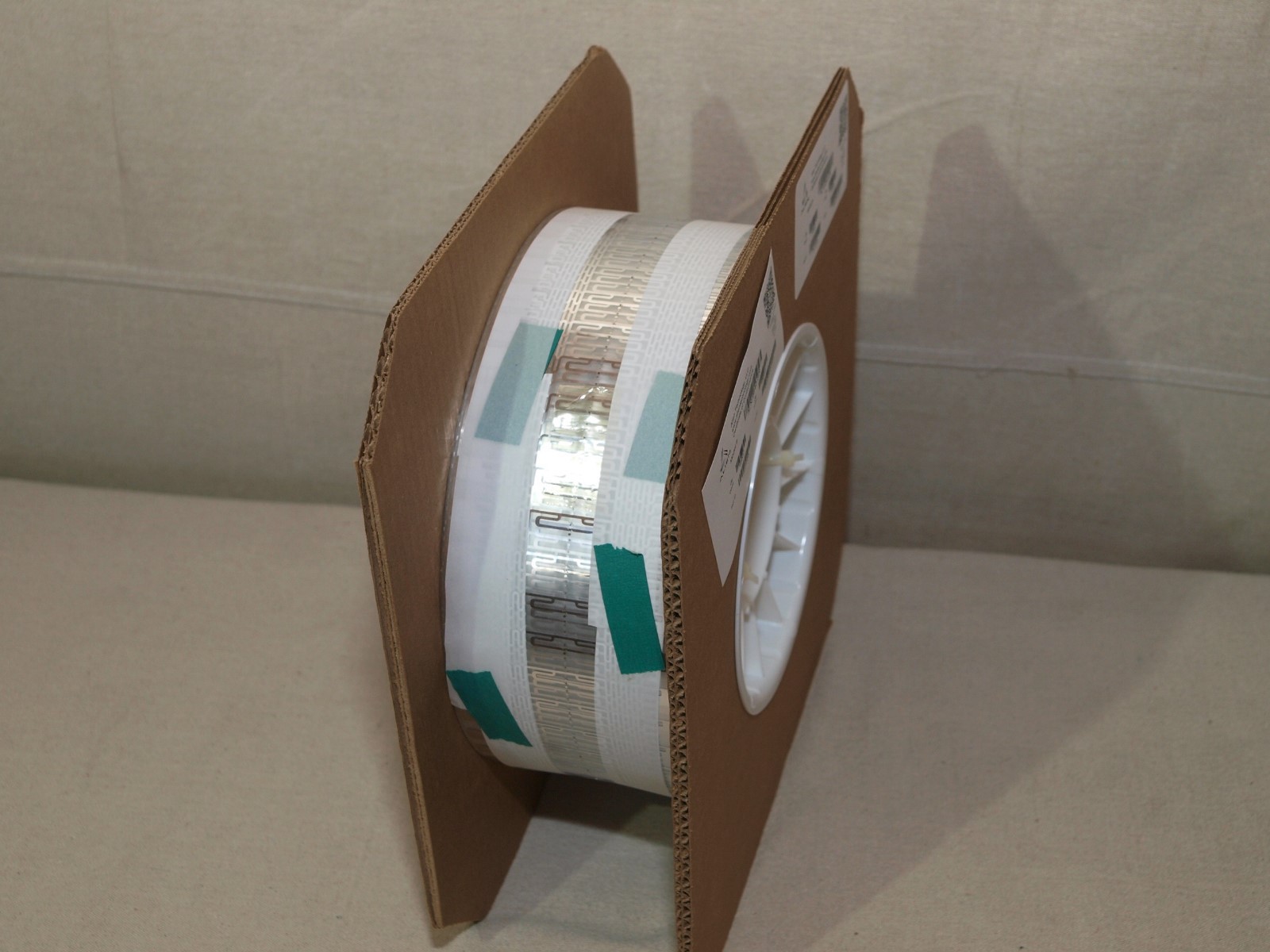

Item is new in originalopen packaging; spool and box as shown on the images.
Accessories included: none.
Warranty: Please note that I am not an authorizeddealer for any of the products I sell. Therefore I cannot guarantee that theitem in this listing will be covered by the manufacturer's warranty orsupport. For verification purpose I canprovide SN for potential buyers before the purchase upon request.
Return Policy:
If the item you purchased wasmisrepresented by me or it was damaged during shipping, you can obtain a fullrefund. In order to receive your refund, you must notify within 30 days ofreceiving your item.
In case you have received the item in adamaged condition you must keep all packaging material for inspection andplease notify me ASAP after receiving it andplease provide pictures.
Full refund (includingoriginal S&H) only applies for defective items and it must be sent back inthe original condition; including the original accessories and all packingmaterials.
Restocking Fee (up to 15%)will be charged for any item without original package, abused, altered, ordamaged.
I will not accept returned items with missing accessories or packaging.
Returns require my approval andreturn authorization and item must be received by me before I can issue yourrefund.
Please note: I record all serial numbers to discourage fraud.
