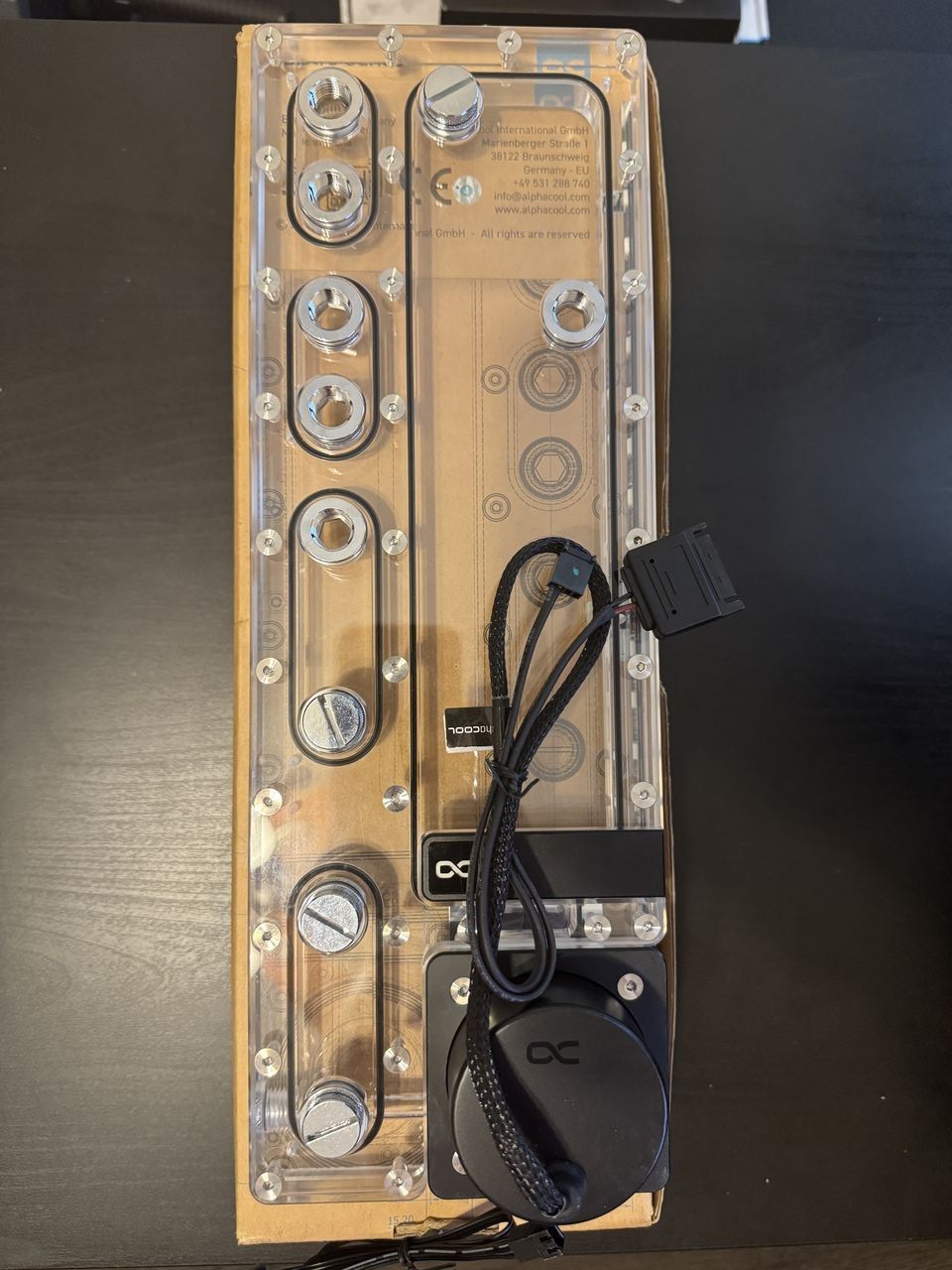

Alphacool 13875 Core Distro Plate 360 Left D5/DDC V.2 VPP Apex Pump aRGB 360mm

Condition: Installed, likely not used (customer return). Missing some screws - please check photos.

Technical and Material Specifications:

• Core Distro Plate 360 Left (V.2), transparent acrylic with brass G1/4" fittings integrated in the acrylic; chrome plugs
• Alphacool Apex VPP (D5-compatible) pump included, black
• Pump: 8-13V DC, 14W, IP32, 12V start voltage, 2500-4500 RPM, max head 4.25 m, max flow 340 L/h, ceramic shaft, aluminium cover; 4-pin PWM + SATA power, 48 cm cables
• 19 digital aRGB LEDs, 5V, 3-pin JST + 3-pin 5V connection
• Ports: 10x G1/4" + 1x drain port; volume approx. 190 ml
• Dimensions: 360 x 125 x 34.5 mm plate only (62.2 mm with pump, 88.8 mm with pump and Core Push mounting)
• Mounts on a 360mm radiator or a panel (Core Push Mount set)
• Max working temperature 60 C; pressure tested 0.8 bar
• Use clear, transparent coolant only (pastel fluids can clog and void warranty)

Enclosed:

• 1x Core Distro Plate 360 Left with VPP Apex pump installed
• Remaining accessories as pictured (some screws missing). Factory scope per retailer: O-ring, Allen key, 4x M4x22 pump screws, Core Push Mount set, plug tool, ARGB adapter, 5x G1/4" plugs
