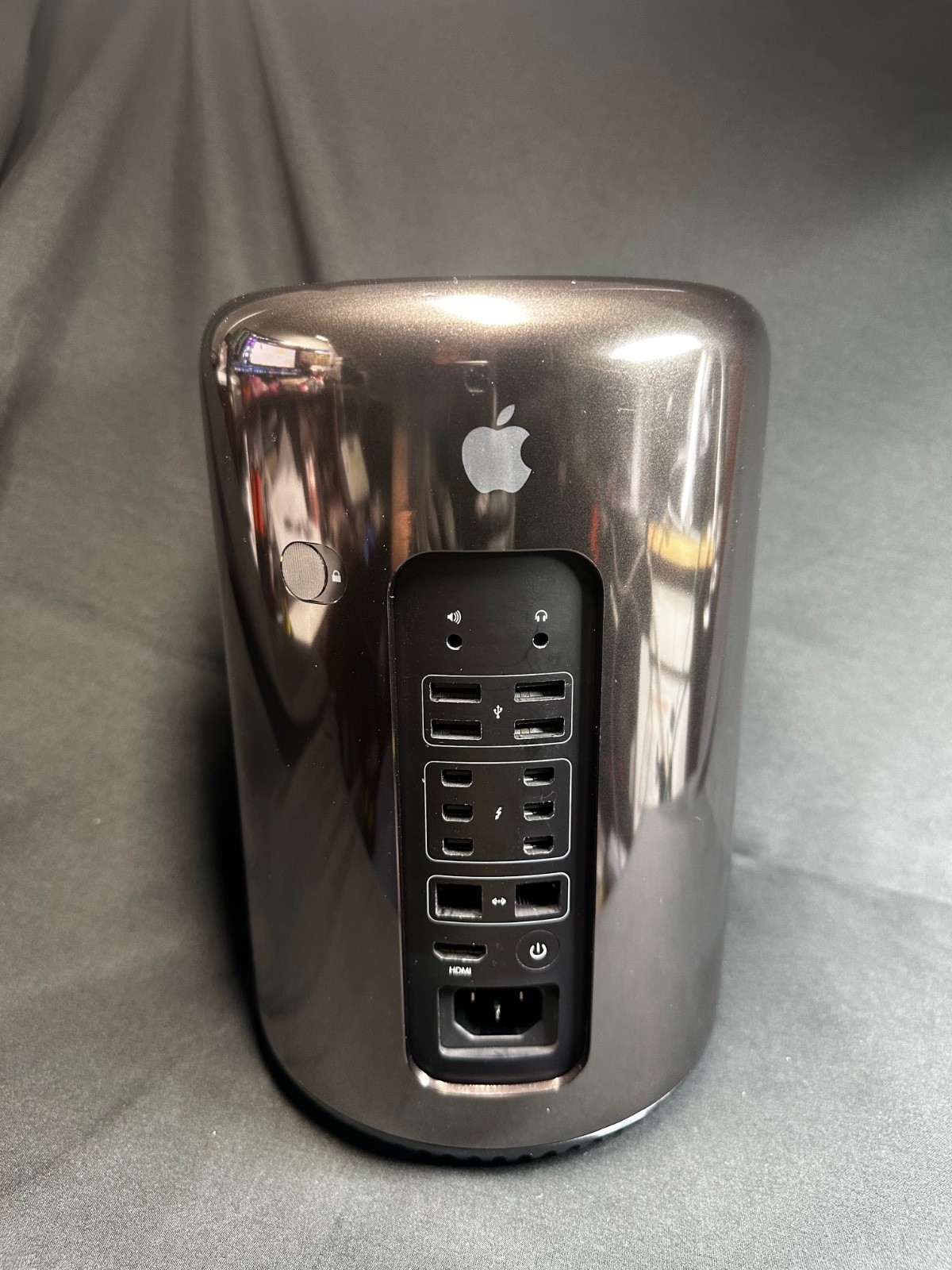

Mac Pro (Late 2013) 2.7 GHz 12-Core... #35
As noted above, this Mac Pro 2.7 GHz twelve core computer is in excellent used conditionand functions as expected... everything works perfectly.
Testing:
Using the Apple ServiceDiagnostic EFI 3S159 for Mac Pro (Late 2013) - (see pictures)
12 categories and over80 different parameters were tested over a 2 hour 39 minute period - all passed.
All Ports were manually tested - all functioned as expected. Battery was verified good - new at 3.08V. SMC was reset and verified working as expected. NVRAM was reset and verified working as expected.
Maintenance: All thermal paste was replaced using Arctic MX-6 and the Apple specific Mac Pro stencils to ensure the proper distribution and amount of thermal paste was applied. (Please see the pictures for further details.)The system was cleaned of any dust that would impact it's cooling. All cooling paths are clear and working as expected.
The computer has gone through careful reconditioning following the procedures outlined in the Apple Mac Pro service manual. The processincluded disassembly, cleaning, inspection & reassembly. The upgraded configuration (as detailed below) included the use of professionally installed Apple spec components. The computer has installed the latest version of macOS Monterey. Along with macOS Monterey, its System Firmware Version has been updated to version (481.0.0.0.0). Its Geekbench 6 64-bit multicore score was over 5.3K. Cosmetically, itsaluminum case is in Very Goodcondition and as stated above ithas two 1" to 2" long hairline scratches and a small pinhead chip all barely noticeable and too faint to capture in a picture.
Product Identifier:
Brand: Apple
Model: A1481
EMC: 2630
Part #: BTO/CTO
Serial #: F5KM606HF694
Processor:
2.7 GHz Twelve-Core
Intel Xeon E5 with 30MB L3 cache and Turbo Boost up to 3.5GHz
Memory:
64 GBSKhynix memory modules (four 16GB) of 1866MHz DDR3 ECC memory
Configurable to 16GB (four 4GB), 32GB (four 8GB) or 64GB (four 16GB)(Max 64GB at 1866MHz)
Graphics:
Dual AMD FirePro D500 graphics processors with 3 GB of GDDR5 VRAM each
1526 stream processors
384-bit-wide memory bus
240 GB/s memory bandwidth
2.2 teraflops performance
Display Support:
Connect up to:
Three 5K displays
Six Thunderbolt displays
Storage:
500 GBApple OEM SSD
Audio:
Combined optical digital audio output/analog line out minijack
3.5 mm headphone jack with headset support
HDMI port supports multichannel audio output
Built-in speaker
Connections and Expansion:
4 USB 3
6 Thunderbolt 2
Dual Gigabit Ethernet
HDMI 1.4 Ultra HD
Wireless:
802.11ac Wi-Fi wireless networking; IEEE 802.11a/b/g/n compatible
Bluetooth 4.0 wireless technology
Electrical and Operating Requirements:
Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 450W
Operating temperature: 50° to 95° F (10° to 35° C)
Relative humidity: 5% to 95% noncondensing
Maximum altitude: 16,400 feet (5000 meters)
Typical acoustical performance, sound pressure level (operator position):
12 dBA at idle
In the Box:
Mac Pro, power cord
Included Software:
macOS Monterey (version 12.7.6)
