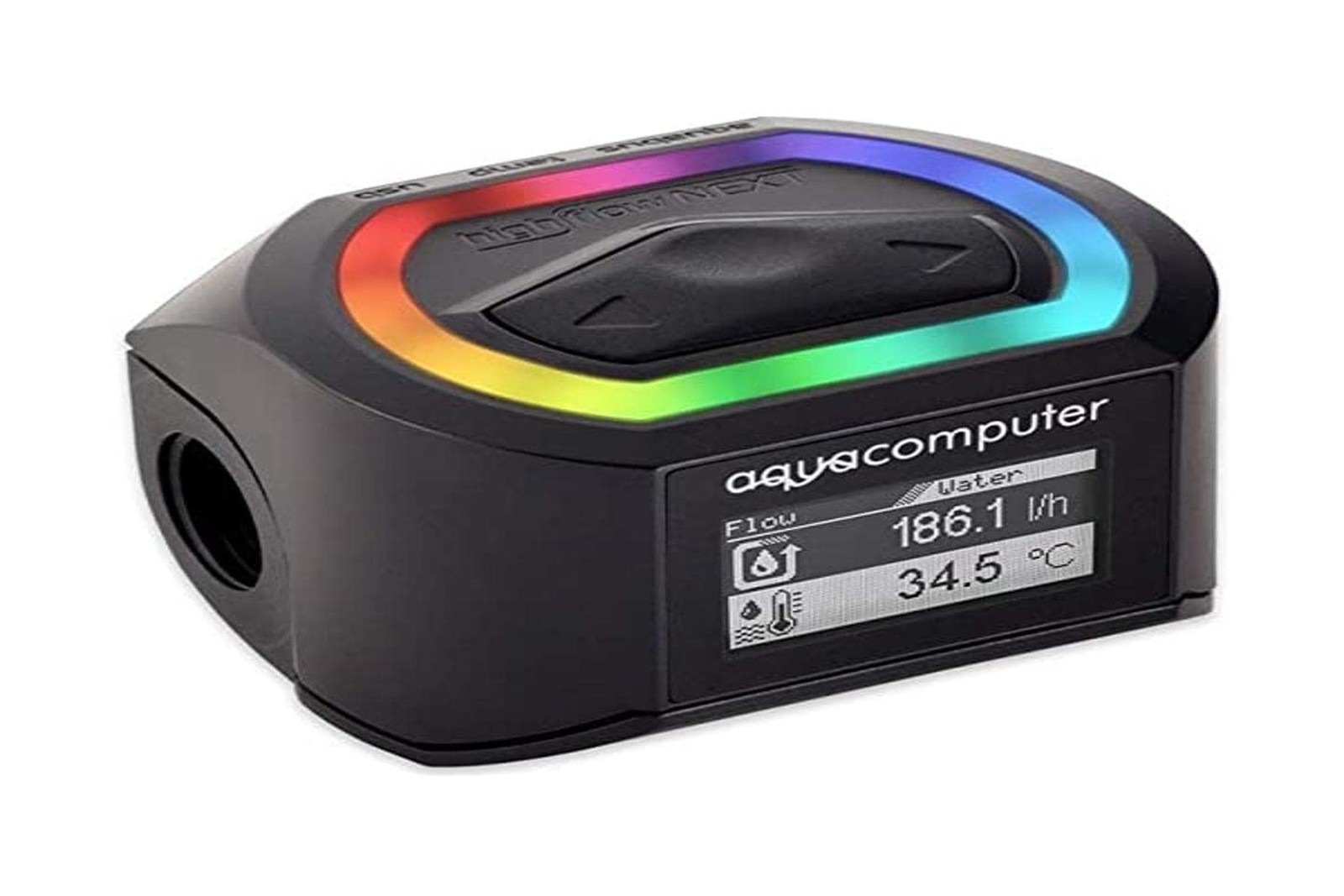

Brand New Aquacomputer G1/4 Next RGBpx Flow Sensor - High Flow (53293)
Manufacturer model: 53293

• The high flow NeXT flow sensor from Aqua Computer is a fully integrated sensor for flow, temperature and coolant quality with USB interface, RGBpx lighting and OLeD display.

• The flow rate is measured by a rotor / impeller that is driven by the coolant flowing through.

• A very precise measuring system for the electrical conductivity of the coolant is integrated into the sensor.

• The sensor has ten integrated RGBpx LeDs to enable direct visual flow control.

• Dimensions: approx. 51 x 43 x 34 mm

Description

The high flow NEXT flow sensor from Aqua Computer is a fully integrated sensor for flow, temperature and coolant quality with uSB interface, RGBpx lighting and OLED display.

The flow rate is measured by a rotor / impeller that is driven by the coolant flowing through. The rotation speed is recorded without contact using a magnetic measuring system. The optimally calibrated bearing clearance for each sensor ensures minimal running noise. The sensor delivers reliable measured values from approx. 35 l / h to 1000 l / h. The high flow NEXT is equipped with two sensors for measuring the speed of the rotor.

A very precise measuring system for the electrical conductivity of the coolant is integrated into the sensor. This is able to measure the conductivity between 2-200 µS and from this to determine the quality of the coolant. The high flow NEXT is equipped with a water temperature sensor, an OLED display, alarm buzzer and a complete RGBpx system. Power supply and data connection to the PC is via the uSB interface.

The sensor can be conveniently configured directly via the display and three buttons. All measured values can be shown on the graphic display both as a value and as a diagram. All sensors can be evaluated with alarm limits. Data from the high flow NEXT can be transmitted to a connected aquaero 5/6 via an aquabus interface.

The sensor has ten integrated RGBpx LEDs to enable direct visual flow control. In addition, the high flow NEXT has an RGBpx output for the individual control of up to 90 addressable LEDs. Each LED can be set individually in terms of color and brightness. A total of six LED groups of variable sizes can be configured, to which visual effects can then be assigned.

Technical specifications:

Dimensions: approx. 51 x 43 x 34 mm
Connection thread G 1/4

Scope of delivery:

A flow sensor
An internal uSB connection cable

Model: 53293

•
