Product Overview:

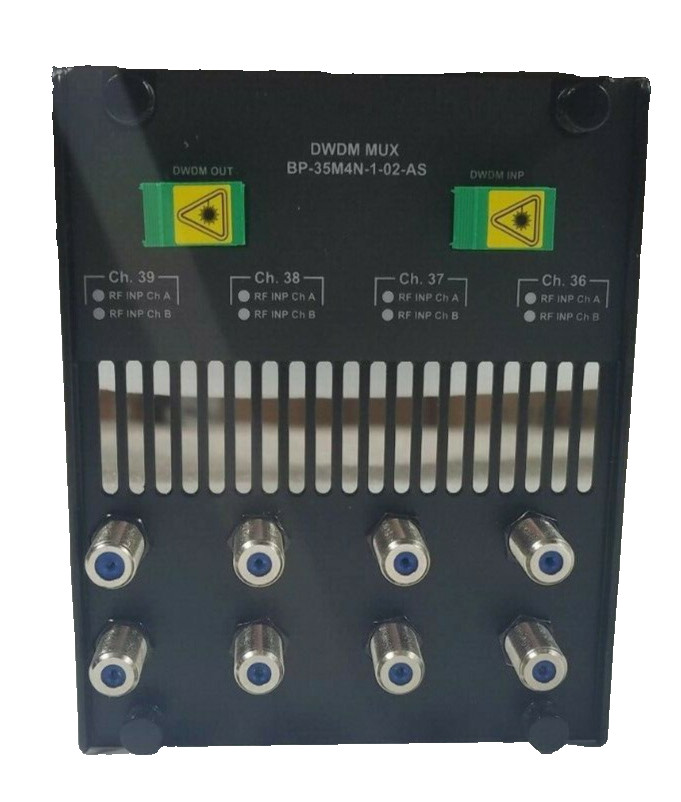

The Arris BP35M4N Optical Mux Back Plate is a 4-channel DWDM (Dense Wavelength Division Multiplexing) module designed for the CH3000 Headend Optics Platform. Covering channels 36-39, it enables high-capacity optical signal multiplexing without occupying internal chassis slots, providing efficient fiber network utilization. This back plate is compatible with Arris DT3515 Series Return Path Digital Transmitters and allows cascading for expanded multi-channel DWDM deployment in telecom and broadcast networks.

Features:

• Model BP35M4N-1-02-AS: Optical mux back plate for DWDM channels 36-39

• 4-Channel DWDM Multiplexing: Supports ITU-standard 100 GHz channel spacing

• Chassis-Saving Design: Provides multiplexing functionality without using internal slots

• Compatible with DT3515 Series Transmitters: Integrates with CH3000 chassis and digital return path transmitters

• SC/APC Connectors: Ensures reliable performance and easy installation/maintenance

• Pass-Through DWDM Ports: Allows cascading of multiple multiplexers for expanded networks

• Optimized Performance: Low insertion loss, flat-top passband, and high optical isolation

• Compact Design: Measures 4x5x8 inches, color-coded connectors for easy identification

• Network Applications: Ideal for telecommunications, cable, and broadcast DWDM deployments
