Description:
Arris
Headend Optics Platform(CH3000) BP35D4x Optical Demux Backplate, Ch. Group S(48-51, 100GHz onITU Grid); SC/APC Connectors; Quality Control, Class 1M Laser Product;
Quality Control-Quality control(QC) is a process through which a business seeks to ensure that productqualityis maintainedor improved with either reduced or zero errors.Quality controlinvolves testing of units and determining if they are within the specifications for the final product.
Class 1M.Laser productsconsideredClass 1Mare, much likeClass1lasers, safe and incapable of producing hazardous exposure. However, when viewed with collecting optics, such as a telescope,Class 1M laserscan potentially be hazardous. Otherwise, they are exempt from control measures.
Product Overview:
ARRIS’ BP‐35D4x series Optical Demux Back Plates facilitate implementation of Dense Wave Division Multiplexing (DWDM)architectures. DWDM technology can dramatically increase network capacity without requiring that additional fiber be deployed forsuper‐trunking or narrowcasting applications.
ARRIS’s unique packaging of these 4‐channel demultipexers as back plates that can be easily attached to the rear of the CH3000chassis eliminates the need to allocate internal chassis slots for dedicated demultiplexer modules.
The flexibility and efficiency of the BP‐35D4x packaging concept is particularly noteworthy when these back plates are mated withup to four model AR3002G‐1‐AS Analog Forward Receivers installed in adjacent slots of the CH3000 chassis.
The passthrough DWDM input and output ports permit the cascading of all the BP‐35D4x series demultiplexors, and facilitate thesequential demuxing of multiple (greater than four) individual ITU channels off of a single optical fiber.
Features:
*Unique 4‐module‐wide back plate design providesdemultiplexing function without need for internal chassis slot• Eliminates four patch cords• 4 channels spaced on standard 100 GHz DWDM ITU grid (10channel plans available); This one works on channel group S,channels 48-51.• Demux optimized for minimum combined insertion loss acrossall channels• Flat‐top passband• High optical isolation• SC/APC connectors ensure performance repeatability,compatibility and easy installation and maintenance• Designed for use with AR3002G‐1‐AS series Analog ForwardReceivers and CH3000 chassis. AR3002G-1-AS sold separately.

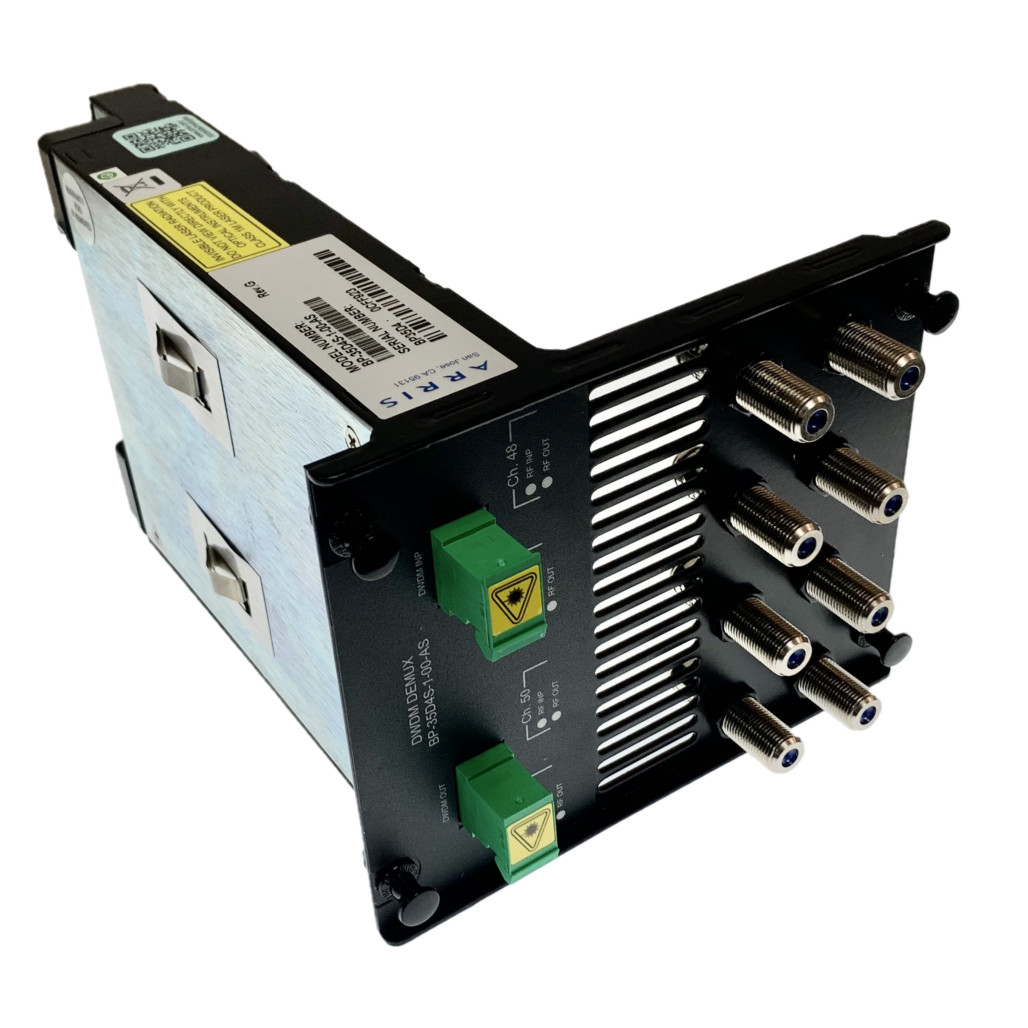

This item is black and silver, with green and yellow covering sc/apc connector covers. It measures 4x5x9.
*Note- This is a newly posted item. Please take a look at the pictures of the item to make sure it is the product you intend to buy.If you have any questions, feel free to contact us for more information. Thank you for your business!
Part #BP-35D4S-1-00-AS
