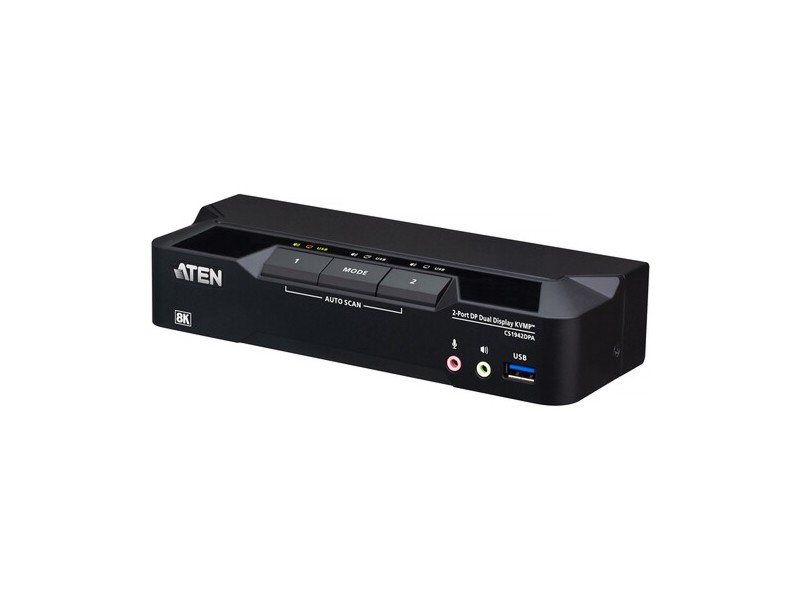

for All Products Aten CS1942DPA 2-Port USB 3.0 8K DisplayPort Dual-Display KVMP Switch Manufacturer:Aten SKU:CS1942DPA Condition:New Warranty:2 Years
The Aten CS1942DPA is a 2-port KVMP switch that lets one keyboard and mouse control two DisplayPort computers across a dual-display console while sharing USB peripherals and audio. It consolidates desktop control to reduce cable clutter and simplify multi-system workflows.
This unit supports high-bandwidth video including 8K at 60 and high-refresh 4K modes, plus HDR10+ and HD audio capability, enabling color-accurate previews and smooth motion on compatible displays. The device also supports ultra-wide formats such as 5120 × 1440 at 120/144/240 Hz.
Installation is plug-and-play and includes DisplayPort and USB 3.0 cables plus a wired remote port selector for immediate setup. Switching can be performed via pushbutton, hotkeys, mouse, RS-232 commands, or the remote selector to match varied operational preferences.
Key Features:
- Dual 8K DisplayPort: Two DisplayPort inputs and two DisplayPort outputs supporting up to 7680 × 4320 at 60 Hz for high-resolution dual-monitor workflows
- High-Refresh Support: Supports 4096 × 2160 at high refresh rates and 5120 × 1440 at 120/144/240 Hz for smooth motion and responsive UI
- USB 3.0 Hub: Two USB 3.1 Gen1 ports with SuperSpeed 5 Gbps for fast peripheral and storage access across connected hosts
- Daisy-Chain Quad-Display: DCC daisy-chain support lets two units form a quad-display KVM console to control up to four systems from one console
- Flexible Switching: Multiple control methods including pushbutton, hotkeys, mouse wheel, RS-232 and wired remote for adaptable workflows
- Independent Switching: Separate assignment of KVM, USB and audio focus to different computers for mixed-task operations
- All Accessories Included: Ships with four DisplayPort cables, two USB 3.0 A-B cables, power adapter and wired remote for immediate Creation: Dual 8K/HDR displays for color grading, video editing and frame-accurate review
- Multi-System Monitoring: Control multiple workstations across two displays for testing, QA or build orchestration
- Office Productivity: Single-console control of two PCs to maintain a tidy desk and streamline cross-system workflows
Attention: Button/coin batteries can cause severe injuries or even death when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention to 7680 x 4320 at 60Hz, 5120 x 2880 at 60Hz, 4096 x 2160 at 240HzSuperior video quality7680 x 4320 at 60 Hz, 5120 x 2880 at 60 Hz, 4096 x 2160 at 120 HzVisual support4K at 240, 8K at 60Ultra-wide aspect ratios21:9, 32:9Refresh rates4K 144/240 Hz, 5120 x 1440 at 120/144/240 HzSupports Quad-Display2 Dual-Display KVM switchesDisplayPort Dual-Mode technologyDP++MSTMulti-Stream TransportDisplayPort compliant1.4HDCP compliantYesHDRHDR10+Audio supportHD AudioIndependent switchingKVM, USB, AudioConsole Ports2 x USB Type A Female, 2 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear), 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)KVM (Computer) Ports2 x USB3.1 Gen1 Type B Female (Blue), 4 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green), 2 x 3.5mm Audio Jack Female (Pink)USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)USB hub speed5 GbpsUSB ports2 x USB 3.1 Gen 1Port SelectionHotkey, Pushbutton, Mouse wheel, RS-232 Commands, Remort port selectorComputer selectionpushbuttons, remote port selector, hotkeys, mouse, RS-232 commandsDaisy Chain Ports1 x RJ-45 FemalePower1 x DC JackComputer Connections2One USB keyboard and mouse control2 or 4 DisplayPort computers, 2 USB peripheralsKeyboard mappingEnglish, Japanese, French, GermanKeyboard / MouseUSBConsole keyboard/mouse emulation/bypass supportYesPower-on detectionYesSupports hot-pluggingYesFirmware upgradableYesPlug & playYesMultiplatform supportWindows, Mac, LinuxIncluded accessories4 DisplayPort cables, 2 USB 3.0 A to B cables, 1 power adapter, 1 remote port selectorLEDs - KVM3 (Orange)LEDs - Audio3 (Green)LEDs - USB Link3 (Green)Selected3 x PushbuttonStation Selection1 x Slide SwitchScan Interval1-99 seconds (default: 5 seconds)Power Temperature0-50CStorage Temperature-20-60CHumidity0-80% RH, Non-condensingHousingMetalWeight0.47 kg (1.04 lb)Dimensions (L x W x H)20.00 x 7.18 x 4.30 cmDimensions (L x W x H)7.87 x 2.83 x 1.69 in.NoteL x W x H format OUR PERKS Great Prices and
