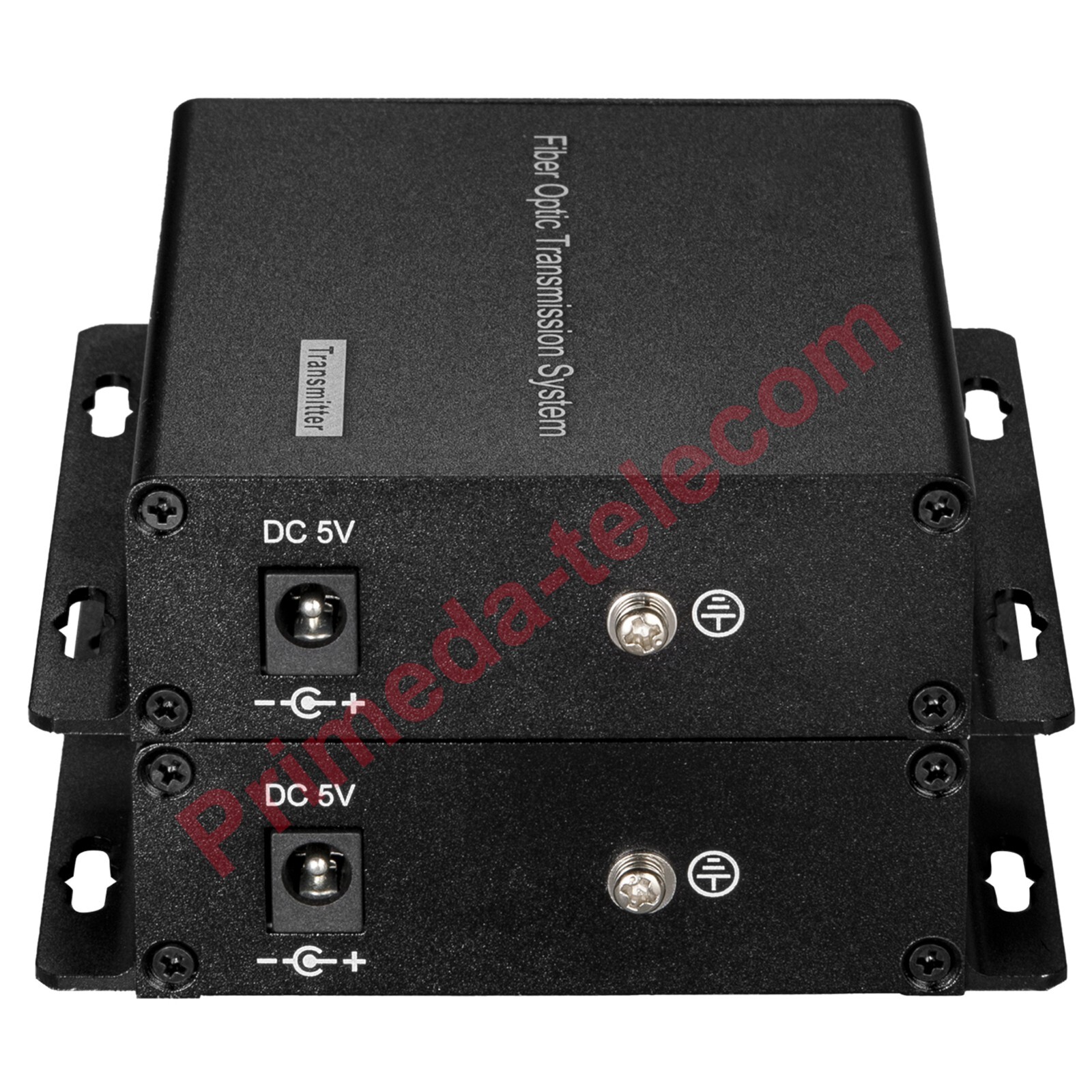

High Quality Unbalanced RCA Audio to Fiber Extenders, 1Pair (TX and RX)

Overview

This Unbalanced analog audio optical transceiver is a single chip stereo analog data fiber optical converter that uses bit-stream converter (ADC) technology.The low power consumption and low voltage requirements make the device ideal for use in low-voltage and low-power portable data and audio devices.

Features:

This unit can extend Unbalanced RCAAudio over an optical fiber cableto far end. It allows 1-16 audio device synchronous transmission, No Step uprequired.RCAAudio signal is transmitted from T (TX) in the direction of R (RX). offerirectional 1-8 is optional

Compatible withSinglemode and Multimodeoptical fiber cable. Singlemodesingle fiberup to 12.4 miles (20Km), Mutlimodesinglefiber up to 0.31 miles(500meters).

LEDs for power supply and optical fiber link status indication which can monitor the operating status of the system.

Typically used in applications for Campus, public places, Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and more. and are available for stand-alone and desktop type, or wall mounted, installations.

No need to set up ,Simply plug in an Optical FC port and RCAaudio connectors at TX and RX sides,

Audio Specification

1.Full-size output sine wave, 997 Hz;MCLK = 12.288 MHz.Fs basic probability mode = 48 kHz, SCLK = 3.072 MHz,

2.Measurement bandwidth 10hz to 20khz;Fs is high rate mode = 96 kHz,

Features

Multi-format Output Interface

1.Compatible with I2S bus and MSB format

2.Serial output up to 24 bits

Advanced Audio Configuration

1.Stereo single - end input configuration

2.High linearity, dynamic range and low distortion

Optical Port:

Optical connector: FC

Wavelength: 1310nm&1470nm~1610nm.

Tx power ＞-7db

Rx sensitivity ＞-24db

Transmission range: 0-20km for SM, 0-500m for MM.

Optical fiber type: universal 9/125u single mode, 50/125u or 62.5/125u multimode.

Audio index:

Dynamic bandwidth:96dB

Total harmonic distortion (THD): -68dB

Signal-to-noise ratio: -68dB

Signal-to-noise ratio（S/N）: 60dB

Sampling frequency: 32kHz 44.1kHz 48kHz

Audio A/D sampling: 24 Bit

Frequency response: 10～20kHz

Gain mismatch between channels: 0.1dB

Gain error: ±5%

Gain drift: 100 ppm/°C

Amplitude-frequency characteristic: ≤±0.5 dB

Audio input/output impedance: 600 Ω balance

Audio maximum input/output voltage: 0~2V

LED indicators:

PWR: ON upon power in.Off upon powered off

FIBER:Off when fiber optical signal is blocked or excessive attenuation. On when fiber signal is received properly

General Spec:

Operating temperature :-20 to 70°C

Storage temperature: -40 to 80°C

Relative humidity: 5 to 95%（non-condensing）

Working life(MTBF): ＞100,000hours

Installation: stand-alone.

Support wide range working Voltage: AC100-240V50/60Hz, DC5V

Power plug：US/EU/UK/AU standard is optional.

Product Size:

2/4 port size : class="MsoNormal" style="font-family: "Microsoft YaHei";">4 offerI/8 port size: class="MsoNormal" style="font-family: "Microsoft YaHei";">8 offerI/ 16 port size: class="MsoNormal">

Package include:

1x Unbalanced Audio Fiber Transmitter

1x Unbalanced Audio Fiber Receiver

2x Power supply adapter

1x FREE 3M Fiber patch cord

1x Manual.
