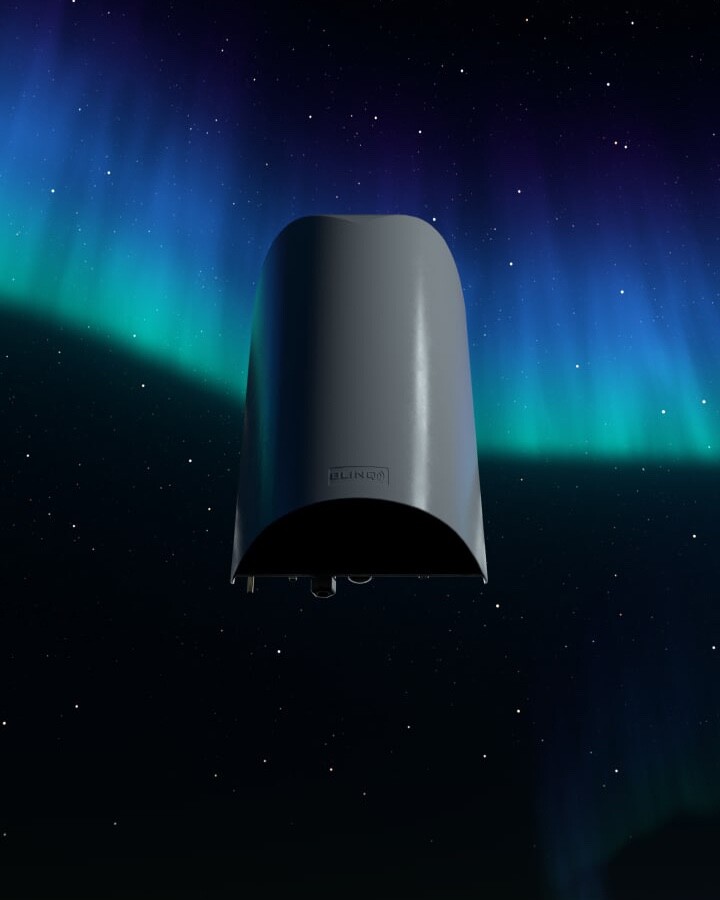

BLiNQ Networks High Powered FW-300i
Price: US $1500.00
FW-300i LTE B48 3-sector integrated antenna eNodeB kit, incl. mounting bracket, 1x10W+2x2W, FCC CBRS certified.
New units, with original boxes and documentation.
Please note, that we will need to ship these units to Blinq Networks after purchase for an operator unlock, but not to worry, we will guide you through the process and have them complete the unlock and send the unit directly to you with fresh firmware.
Please DM if you have any question

The BLiNQ Networks High Powered FW-300i is a single piece of hardware that is easy to set up, fits anywhere, and provides incredible network capacity. This simple solution fits almost anywhere. From the side of a building or water tower and is ready to go immediately, giving 3x the capacity at 1/3rd the price. Provide incredible connectivity using this single box solution.

Product Features:

  • Features Self Channel Assignment
  • Supports Uplink* and Downlink Carrier Aggregation
  • CBRS Category B Certified
  • Supports all LTE TDD Configurations
  • 60° Azimuth Coverage
  • Features Standard 2×2 MIMO Configurations
  • Supports 256 QAM* downlink and 64 QAM Uplink
  • Network Management: WebUI, CLI and EMS

Radio Specifications:

  • Transmit Power (B48):
  • 10MHz:30dBm /antenna port (1CC), 30dBm /antenna port (2CC)
  • 20MHz:33dBm /antenna port (1CC),30dBm /antenna port (2CC)
  • Transmit Power (B46):
  • 10MHz:CC Compliant: 13dBm /antenna port, Max. Transmit Pout: 23dBm /antenna port
  • 20MHz:FCC Compliant: 16dBm /antenna port,Max. Transmit Pout: 23dBm /antenna port
  • EIRP (Per carrier) B48:
  • 10MHz:47dBm EIRP/antenna port (1CC),47dBm EIRP/antenna port (2CC)
  • 20MHz:50dBm EIRP/antenna port (1CC),47dBm EIRP/antenna port (2CC)
  • EIRP (Per carrier) B48:10MHz: 33dBm EIRP/sector (aggregate power per MIMO)
  • 20MHz:36dBm EIRP/sector (aggregate power per MIMO)
  • Channel Bandwidth: 3 x 10MHz or 3 x 20MHz
  • MIMO: 2TX x 2RX (several possible MIMO configurations)
  • LTE Compliance: 3GPP Release 10 (SW upgrade to Release 13)
  • Carrier Aggregation: Supports contiguous and non-contiguous 1CC, 2CC, 3CC Covers full CBRS band (150MHz)
  • Throughput DL TDD Config 2-7: 110Mbps per 1CC (140Mbps *) 330Mbps per base unit (420Mbps *)
  • Throughput UL TDD Config 2-7: 11Mbps per 1CC 33Mbps per base unit (3 x 1 CC)
  • Operating Mode: TD-LTE
  • Power Consumption: 180W maximum
  • Power: 48 VDC
  • Citizens Broadband Radio Service (CBRS): CBSD Category B Certified
  • Embedded Evolved Packet Core (EPC): Software Option
  • EMS Integration: RESTCONF
  • OAM Protocols: RESTCONF, HTTPS, SSH, SNMPv2c
  • Survival Wind Speed: Up to 124 mph (200 kph)
  • Operational Temperature: -40°F to 140°F (-40°C to 60°C)
  • Mechanical Uptilt/Downtilt: 0° - 10°

Antenna Specifications:

  • Gain: 17 dBi
  • Azimuth Coverage (-5dB): 180°
  • Azimuth Beamwidth (-3dB): 45°
  • Azimuth Beamwidth (-5dB): 60°
  • Elevation Beamwidth (-3dB): 10°
  • Electrical Downtilt: 0°
  • Azimuth Sidelobe: < -25dB (Typ.)
  • Co-Polar Port-to-Port Isolation: 15dB (Typ.)
  • Max. Voltage Standing Wave Ratio (VSWR): 1.5:1
  • Lightning Protection: DC Ground

Product Includes:

(1) BLiNQ Networks FW-300i Base Unit
(1) Mounting Bracket
(1) Mounting Assembly
(8) Washers 1/4in
(8) Socket Head Cap Screws 1/4in.-20, 5/8in.L
(4) Washers 3/8in
(4) Hex Nuts 3/8in. -16
(1) User Manual
