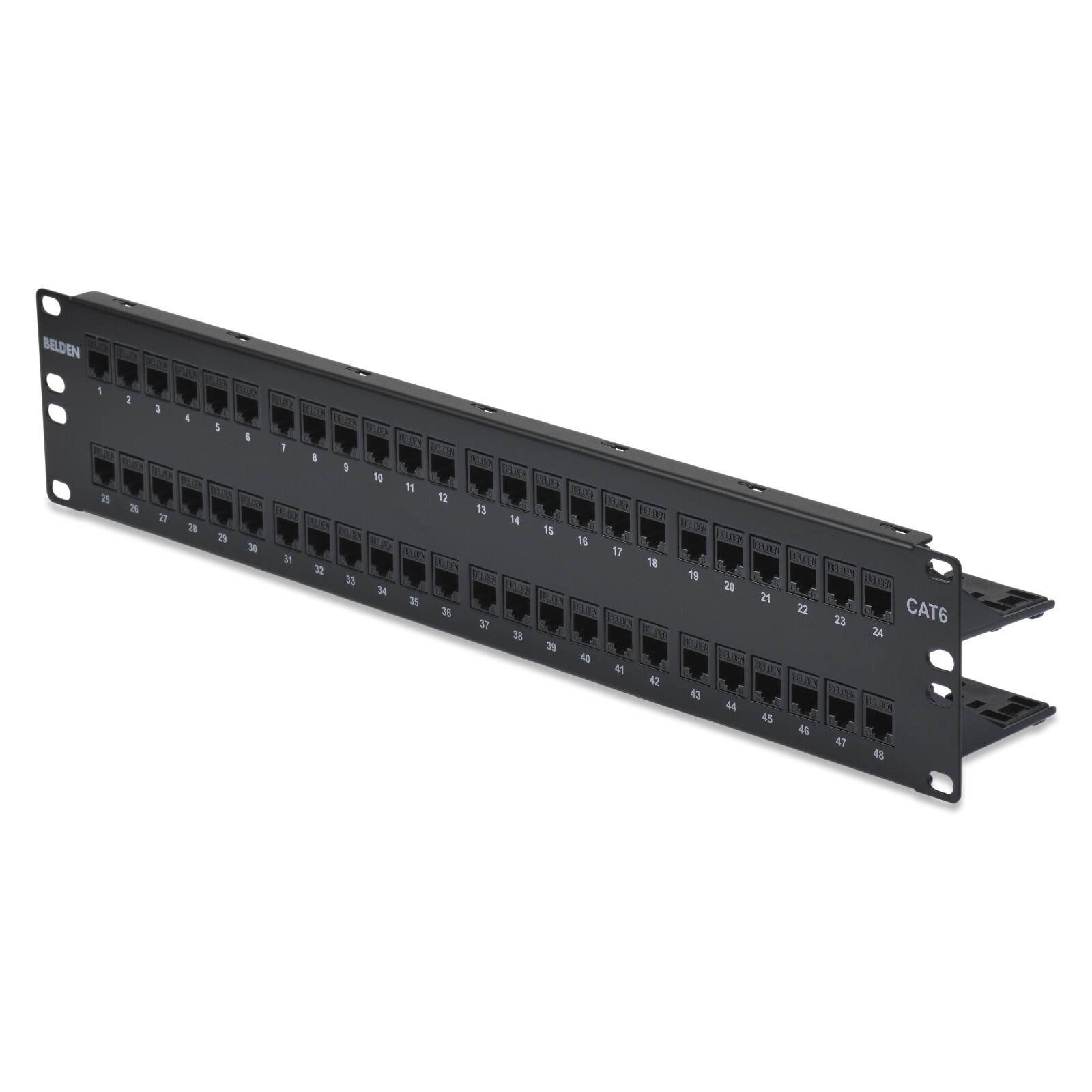

Belden DC6PPF2U48BK 48 Port CAT6 DataConnect Patch Panel 2U Black Click Thumbnails to EnlargeDESCRIPTION
• Belden DC6PPF2U48BKCAT6 DataConnect Patch Panel, UTP, Flat, 48-Port, 2U (Preloaded)
APPLICATIONS
• Suitable Applications: Ethernet 10/ 100/ 1000BASE-T, 2.5G/ 5GBASE-T
MATERIALS
• Panel: Steel
• Management Bar: Steel/Plastic
CONSTRUCTION AND DIMENSIONS
• Max Capacity: 48 connectors (preloaded)
ELECTRICAL CHARACTERISTICS
• Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
• Current Rating: 1.500 A
• Insulation Resistance: 500 M-Ohm Minimum
• Termination Resistance: 2.5 mOhm
TEMPERATURE RANGE
• Installation Temperature Range: -10°C to +60°C
• Storage Temperature Range: -40°C to +70°C
• Operating Temperature Range: -10°C to +60°C
MECHANICAL CHARACTERISTICS
• Footprint/Type: DataConnect
• Tool Compatibility: Belden 110 Connecting Tool (AX100749), MediaFlex Termination Station (AX101852), Belden Rapid TerminationTool (AX105566)
• Plug /Jack Compatibility: RJ45
• Cable/Connector Retention: 11.25 lbs
• Connector/Hardware Retention: 20 lbs
• Plug/Connector Retention: 11.250 lbs
STANDARDS
• UL Rating: UL94V-0
• ISO/IEC Compliance: IEC 60603-7
• Data Category: Category 6
• TIA/EIA Compliance: ANSI/TIA 1096-A (formerly FCC Part 68-F)
• IEEE Compliance: IEEE 802.3at type 1 and 2 (PoE) up to 30W, IEEE 802.3bt type 3 and 4 (PoE) up to 100W, CISCO (UPOE) up to 60W, Power over HDBaseTTM (POH) up to 100W
• Other Standards: ANSI/TIA 1096-A (formerly FCC Part 68-F)
PRODUCT SPECIFICATIONSPart Number DC6PPF2U48BKPort Count48Front ConnectionFlushHeight 2.96 inWidth 19.00 inDepth 2.96 inWeight (lbs) 3.40
