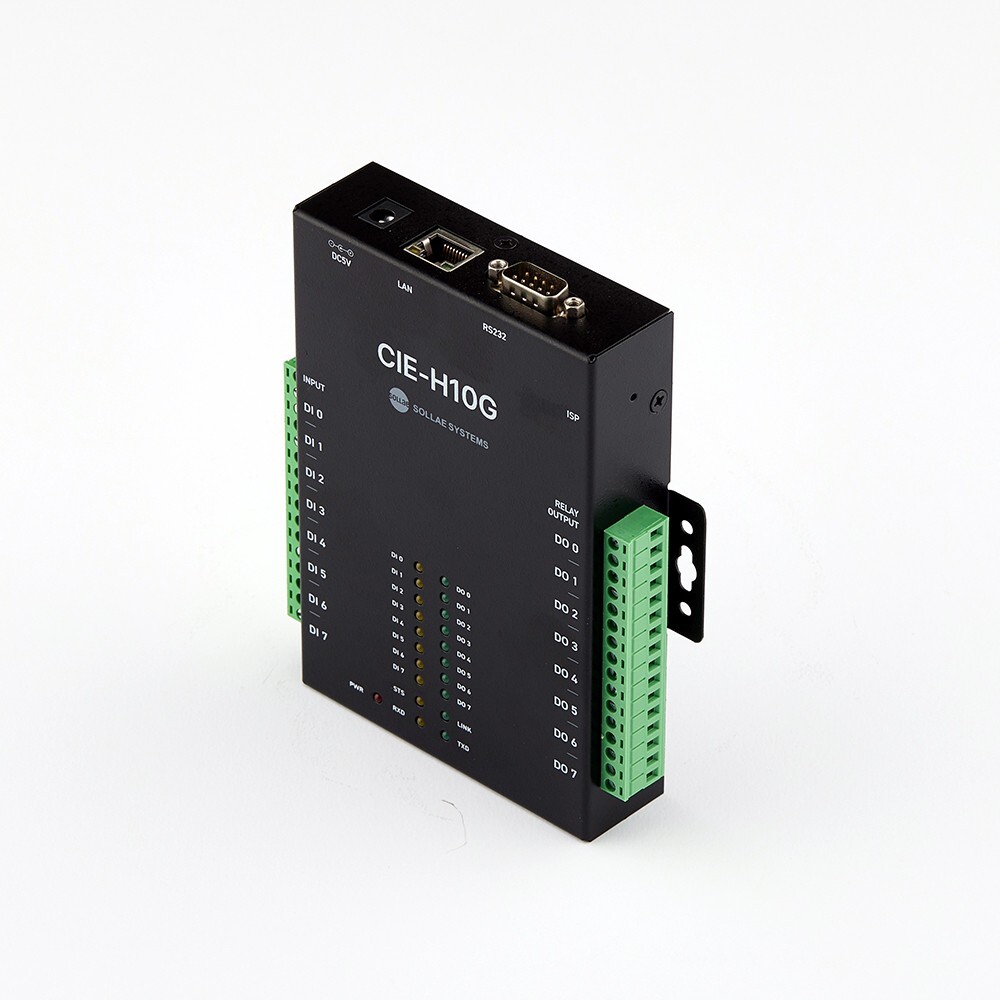

ezTCPCIE-H10G 8-Port, RS-232 & Ethernet Remote I/O Controller

The ezTCP CIE-H10G from Sollae Systems is a remote I/O controller that supports 8 input ports interfaced with a photocoupler and 8 output ports (Relay Switch). The CIE-H10G provides the functions to monitor and control the digital input ports and digital output ports through the Internet. Also, the existing contacts can be controlled through the network, enabling efficient management of I/O equipment from remote locations.

The serial ↔ TCP/IP conversion function is provided, so serial devices can be easily managed without a serial LAN converter.

Modbus/TCP protocol is used when controlling the contacts of the CIE-H10G, and since the Web method is also supported, you can control the output ports through the Web page from anywhere. The Web page can be changed to suit the user’s purposes. Additionally, a Macro function that automatically controls the output ports is provided by a simple logic formula according to the input port.

The CIE-H10G Remote I/O Controller can be used in any environment where I/O devices need to be controlled and monitored, especially for applications such as Remote PC Power Control, Internet Switch, etc.

GIE-H10G8-Port Remote I/O ControllerFeatures:

• 8 digital input, 8 digital output ports
• Durable steel case
• Dry contact adapter (optional)
• Monitor & control via Modbus/TCP or Web
• Controlled by simple logic formula operating autonomously
• Web-based control over a custom web page
• Can be used as an Internet switch
• Free Modbus/TCP program (ModMap)
• Extended Operating Temperature: -40C to +70C

Specifications:

• Digital Input Ports
• Number of Ports: 8
• Interface:Isolated by Photo-coupler
• Electric Parameter:MAX VIL=1.2V, MIN VIH=2.2V
• Maximum Input Voltage:24V DC
• Digital Output Port
• Number of Ports:8
• Interface:Isolated by Relay
• Relay Capacity:5A (DC 28V)
• Serial Physical Interface
• Serial Interface: 1 x RS232 Port
  RXD, TXD, RTS,CTS, DTR, DSR, GND
  ± 15KV ESD Protection
• Connector: DB9M Connector
• Serial Port Properties
• Data Rate: 300bps ~ 230,400bps
• Data Bits:8 bits, 7 bits with Parity
• Parity: None, Even, Odd, Mark, Space
• Stop Bits:1, 2 bits (+ 1 idle bit)
• Network Interface
• 10Base-T/100Base-TX Ethernet(RJ45)
• Ethernet Speed: Auto Sense
• 1:1 or Cross-over Cable Auto Sense
• 1000 VAC Isolation

• Software Functions
• Protocols
• TCP, UDP, IP, ICMP, ARP, DHCP, PPPoE, TELNET
  TFTP, DNS, DDNS, HTTP, Modbus/TCP, SMTP
• Security
• IP & MAC Filtering - Restrict Host or Network
• Password for Configuring
• Digital I/O Port Communication Mode:Modbus/TCP, HTTP, Stand alone(by simple equation)
• Communication Mode:TCP Server(T2S)
  TCP Client(COD)
  TCP Server/Client with AT Command(ATC)
  UDP Mode(U2S)
• Additional Functions:
  Remote Debug Function
  TCP Server/Client Mode
  Sending MAC address Option
• Indicators (LEDs):
• Power: Red
• Status:Yellow, The Current Status
• Ethernet Link:Green
• Ethernet RXD:Yellow
• Ethernet TXD:Green
• Digital Input:Yellow x 8
• Digital Output:Green x 8
• Management:
• ezManager: Configuration and Monitoring through Network and Serial
• TELNET: TELNET Login
• AT Command:Configuring in ATC Mode
• Software
• ezManager: Configuration Tool for Windows
• ModMap:Management Tool of I/O controllers for Windows
• ezVSP:Serial to Network Virtual Driver for Windows
• ezTerm:Simple TCP/IP Communication Test Tool
• Dimensions
• Size 153mm x 126mm x 32mm (6.0 x 4.96 x 1.26 inches)
• Operating Environment
• Input Voltage: 5±0.5V DC
• Current Consumption: 450mA Typical
• Operating Temperature: -40℃ ~ +70℃
• Storage Temperature: -40℃ ~ +85℃
• Certifications
• KC: Registration (KN 32, KN 35)
• CE: EMC 2014/30/EU, RoHS 2011/65/EU

Package includes:1X Sollae Systems ezTCP CIE-H10G 8-Port, RS-232 & Ethernet Remote I/O Controller
