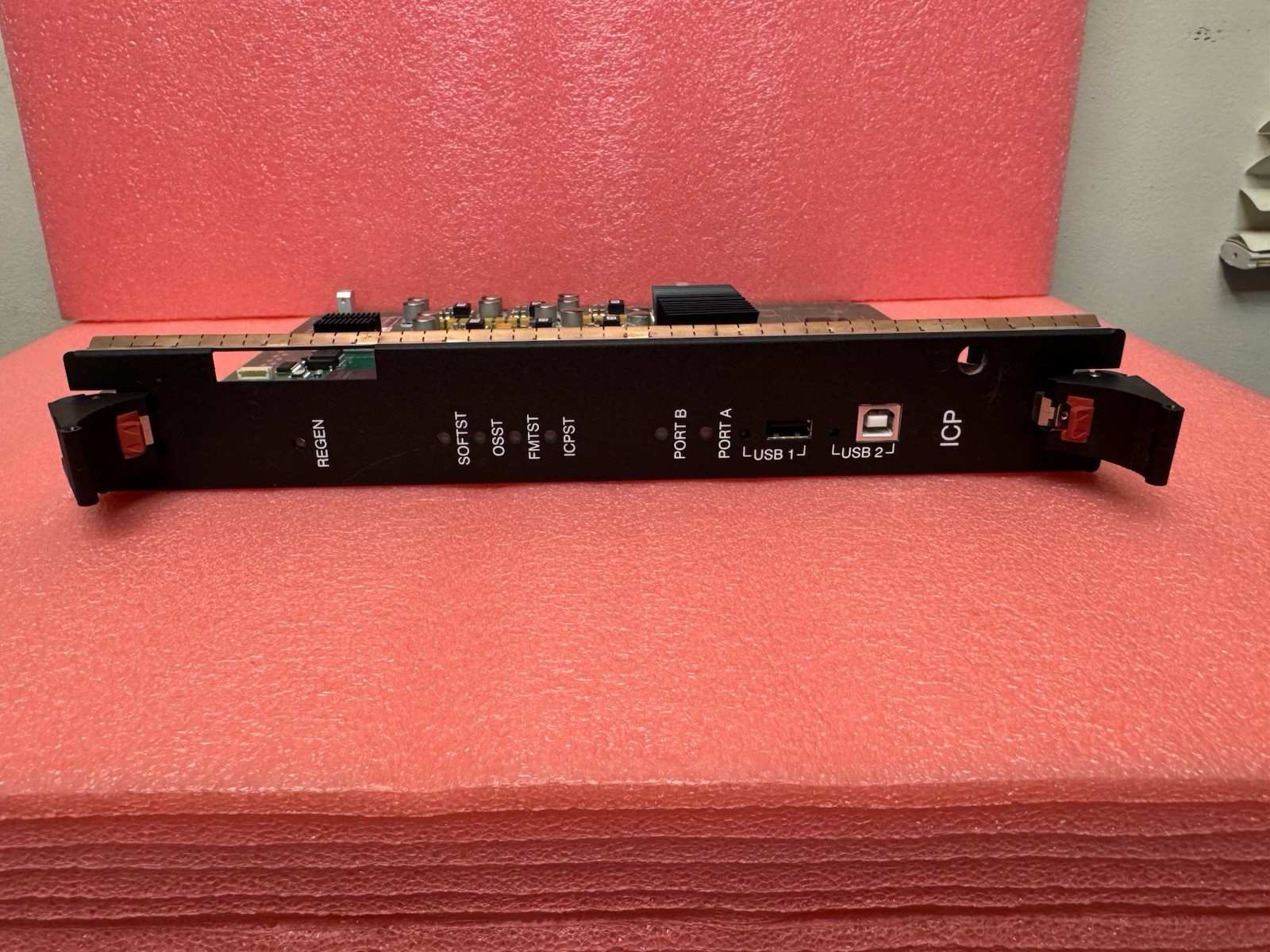

The Christie Projector ICP Board Christie PN: 003-101342-06 is a universal socket type motherboard designed for computers, tablets, and networking devices. This motherboard provides a versatile platform for various components to connect and work together seamlessly. With its specific PN number, users can trust that this ICP board will ensure compatibility and efficient performance for their projector systems.
Christie PN: 003-101342-06 is an updated version of the Integrated Cinema Processor (ICP) input card used in Christie Series II digital cinema projectors. It supports secure content decryption, image processing, and projector control functions.Here’s a detailed breakdown of its role, installation, and compatibility:
🧠 Function & Role• Component Type: ICP 1.5 input card (successor to PN: 003-101342-05)• Purpose: Manages secure playback, image processing, and projector system control.• Compatibility: Used in Christie Series II projectors such as CP2210, CP2220, CP2230, and CP4230.
🛠️ Installation & Firmware Requirements• Firmware Update: Requires Solaria software version v2.1.0 or later. Older firmware (e.g., v1.2.0) must be upgraded using Christie’s safe upgrade procedure.• Installation Steps:• Power down projector and disconnect AC.• Remove old ICP using ejector tabs.• Insert new ICP card, aligning with cardcage guides.• Reconnect power and re-run Link Decrypter and IMB marriage procedures.• Post-Install: Marriage wizard accessed via TPC (Touch Panel Controller) under Menu > Service > Marriage.
🔐 Security & Licensing• Security Ring Removal: Triggers re-marriage and decryption setup.• DCI Compliance: Ensures secure handling of encrypted cinema content.
📦 Physical & Market Details• Part Number: 003-101342-06• Dimensions: Similar to previous ICP cards (~12 × 8 × 3 inches)This ICP card is essential for maintaining secure, high-performance digital cinema projection. If you're replacing a failed unit or upgrading firmware, make sure to follow Christie’s official installation and marriage procedures to avoid playback issues
