Cornerstone Imaging ImageAccel 2 PCI1608C/21 • 2MB VRAM • Professional 2D Graphics Accelerator PCI Interface 2MB VRAM CAD / CAM Tested & Fully Functional Product Overview

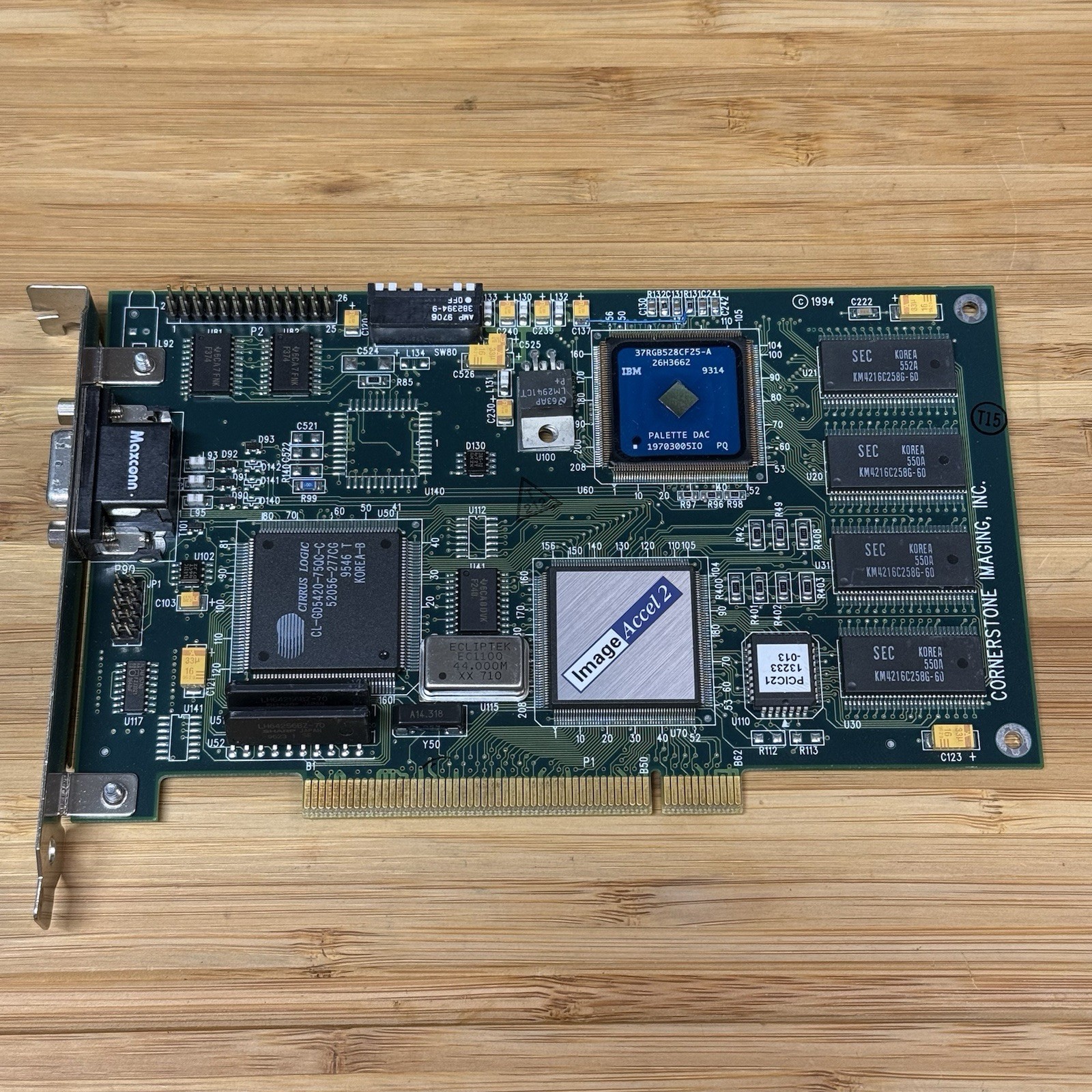

This listing is for a vintage Cornerstone Imaging ImageAccel 2 professional PCI graphics accelerator, model PCI1608C/21.
The ImageAccel 2 was designed primarily for professional accelerated 2D graphics, including CAD, CAM, drafting, engineering, desktop publishing, and other workstation-oriented applications. It is not a gaming-oriented VGA card.
The card uses an onboard graphics coprocessor for accelerated 2D operations. The appropriate Cornerstone driver must be installed in a supported operating system in order for applications to take advantage of this acceleration hardware.
These cards were also designed to operate with a range of fixed-frequency and professional workstation monitors. An onboard 8-position DIP switch is used to configure the card for the connected display.
Tested: All cards have been tested and are fully functional. Important - Not Recommended for DOS Gaming This is not a high-speed DOS gaming graphics card. DOS games and other software that access VGA hardware directly do not take advantage of the accelerated operating-system driver or the card's onboard graphics coprocessor. DOS games can therefore run very slowly, even when this card is installed in an otherwise fast computer. Identification & Specifications Manufacturer Cornerstone Imaging, Inc. Product Family ImageAccel 2 Model / Part Number PCI1608C/21 Card Type Professional 2D Graphics Accelerator Primary Applications CAD, CAM, drafting, engineering and professional 2D graphics Bus Interface PCI Video Memory 2MB VRAM Memory Configuration 4 x 512 KB VRAM Memory Speed 60 ns Acceleration Driver-assisted 2D acceleration using onboard graphics coprocessor Display Configuration 8-position DIP switch for monitor selection and VGA enable/disable Condition Used - Tested and fully functional Operating System & Driver Support
Drivers are available for the following vintage operating systems:
- Microsoft Windows 3.1
- Microsoft Windows 95
- Microsoft Windows NT
- IBM OS/2
The proper driver is required to make full use of the ImageAccel 2's onboard graphics coprocessor and accelerated 2D functions.
Driver Download: Drivers for this card are available in the Downloads section of our website. DIP Switch Configuration
The card includes an 8-position DIP switch used to configure the display controller. Switches 1 through 4 select the connected display. Switches 5, 7 and 8 have no function. Switch 6 controls the onboard ImageAccel VGA chip.
- Switch 6 ON: Onboard ImageAccel VGA chip enabled
- Switch 6 OFF: Onboard ImageAccel VGA chip disabled
- Switches 5, 7 and 8: No function
DIP Switch Orientation: ON is when the switch is moved toward the circuit board. OFF is when the switch is moved away from the circuit board. Important: The switch settings are read only when the computer is powered on. After changing a DIP switch setting, completely power down the computer before restarting it. A keyboard reset or computer reset button may not completely reset the ImageAccel display controller. Monitor Selection - Switches 1 through 4 Display SW1 SW2 SW3 SW4 Color 20/77ONONONON Color 21/81ONONONON Color 50/115ONONONON AutosyncOFFOFFONON Color 17/76OFFOFFONON Color 21/72OFFOFFONON Color 21/75OFFOFFONON Color 21/80OFFOFFONON Color 21/85OFFOFFONON Color 21/88OFFOFFONON Color 20/72OFFOFFONON Color 21/76ONONONOFF Color 20/70ONONOFFOFF Color 19ONONOFFOFF Nanao F780iONONOFFOFF DualPage 120 (Grayscale)ONONONON DualPage 150ONONONON DualPage 20/92OFFONONON DualPage 21/92OFFONONON Condition & Card Variations
You will receive a card in similar overall condition to the card shown in the listing photos. The exact card shipped may vary slightly in cosmetic appearance, component markings, date codes, and minor production details.
Some cards have factory-installed bodge wires or other factory rework. These are original production modifications and are not necessarily signs of later repair or damage. The exact presence and appearance of factory rework may vary from card to card.
All cards have been tested and confirmed fully functional before shipment.
Package Includes 1x Cornerstone Imaging ImageAccel 2 PCI1608C/21 Graphics Card
Drivers are available from the Downloads section of our website. No additional cables, printed manuals, monitors, or accessories are included unless specifically shown. Shipping & Handling
- Card will be carefully packaged to help protect it during shipment.
- Combined shipping is available when purchasing multiple eligible items.
- Please add all items to your cart before checkout when using combined shipping.
- SKU# 744913-744937
