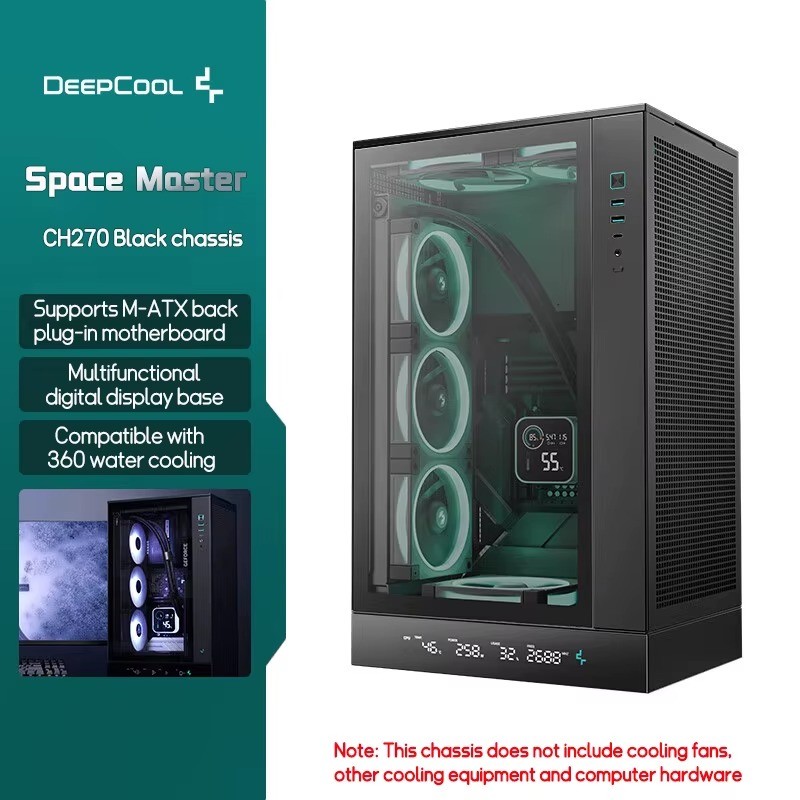

DEEPCOOL CH270 Vertical MATX Case

Tempered Glass & Mesh Airflow with 360mm Water Cooling Support 🖥️❄️

Overview

The DEEPCOOL CH270 is a compact vertical Mini-ITX/Micro-ATX chassis built for airflow and modern cooling setups. With tempered glass side panel and a mesh front, it keeps your build visible while supporting up to 360mm radiators on the side. Perfect for a clean, high-performance small form factor build.

Key Features360mm Water Cooling Ready

Side mount supports 120/240/360mm radiators, with 120mm bottom support for flexible cooling layouts.

Spacious GPU & PSU Clearance

Supports graphics cards up to 413mm (no front fans) and PSUs up to 160mm (ATX PS2/SFX/SFX-L).

Modern I/O Panel

Front panel includes USB 3.0 x2, USB Gen2 Type-C x1, and combo Audio/Mic jack for easy connectivity.

Tempered Glass Design

Full side tempered glass panel showcases your build, paired with a durable steel (SPCC/SGCC) frame and ABS Size (LxWxH)296 x 225 x 486mmMaterialABS + SPCC + Tempered Glass + SGCCMotherboard SupportMini-ITX / Micro-ATXFront I/OUSB 3.0 x2, USB-C Gen2 x1, Audio/Mic x13.5" Drive Bays1 (shared with 2.5")2.5" Drive Bays1 (shared with 3.5")PCI-E Slots4PSU SupportATX PS2 (≤160mm) / SFX / SFX-LMax CPU Cooler Height174mmMax GPU Length388/413mm (no front fans)Fan SupportTop: 2x120mm, Side: 3x120mm/2x140mm, Bottom: 1x120mmWater Cooling SupportSide: 120/240/360mm, Bottom: 120mmChassis TypeMid-Tower VerticalProduct ImagesFAQDoes this case support 360mm radiators?

Yes, the side mount supports 120/240/360mm radiators.

What motherboard sizes fit?

Mini-ITX and Micro-ATX motherboards are supported.

What is the maximum GPU length?

Up to 413mm when no front fans are installed, or 388mm with front fans.

Does it come with fans pre-installed?

No, this case ships without fans so you can customize your airflow setup.
