DRACON / HARRIS D714 Impact Tool / Punch Down Tool for Type 66 connections
Price: US $4.99

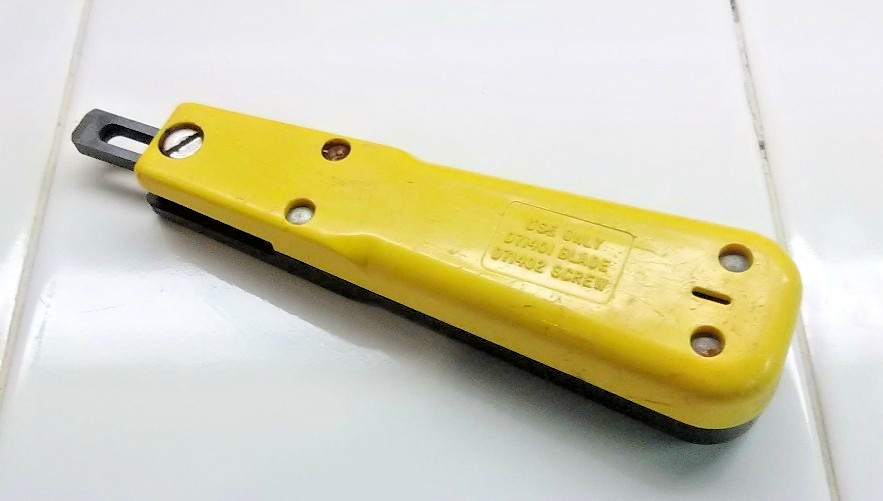

DRACON / HARRIS D714 Impact Tool / Punch Down Tool
For Type 66 connections
My trustytelecom punch down tool!
Used, tested (many, many times)
With US patent which explains how it works and adjusts, not that you'll need that INSTRUCTIONS 1. Install the Blade if needed o Insert the punch-down blade into the tool. o Align the blade correctly. o Rotate approximately one-quarter turn to lock it into place. 2. Adjust Impact Setting Screw at top of tool o Low for smaller-gauge wire. o High for larger-gauge wire or harder terminations. 3. Position the Wire o Place the wire into the terminal slot of the punch-down block. 4. Orient the Blade o Position the cutting side of the blade toward the excess wire that will be trimmed. o Ensure the blade is aligned squarely with the terminal. 5. Terminate the Connection o Press the tool STRAIGHT DOWN onto the terminal. o Continue applying pressure until the impact mechanism activates. o The wire will be seated into the IDC terminal and the excess wire cut (if using a cutting blade). 6. Inspect the Termination o Verify that the conductor is fully seated. o Confirm that excess wire has been trimmed cleanly. o Re-terminate if necessary. FEATURES • Spring-loaded impact mechanism. • Interchangeable punch-down blades. • Compatible with 66-style punch-down applications. • Reversible cut-and-seat blade operation. • Adjustable impact force settings. MAINTENANCE • Keep the tool clean and free of debris. • Inspect blades regularly for wear or damage. • Replace worn blades to maintain proper termination quality. • Store in a dry location when not in use.
